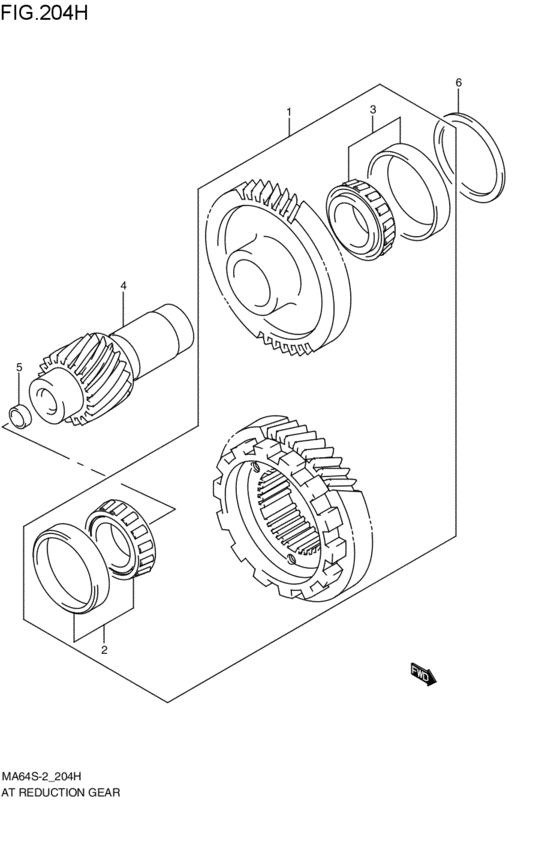

at - reduction gear (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24611-79CT0-000
GEAR SET,REDUCTION DRIVE
M13A; 2000-11-01~2002-07-01 |
24611-79CT0-000 |
— | ||
|
2
|
2
24141-79C10-000 BEARING ASSY,COUNTERSHAFTM13A; 2000-11-01~2002-07-01 |
24141-79C10-000 |
from US $20 |
||
|
3
|
3
24144-79C10-000 BEARING ASSY,COUNTERSHAFTM13A; 2000-11-01~2002-07-01 |
24144-79C10-000 |
from US $34.59 |
||
|
4
|
4
24131-79C10-000
シャフト,カウンタ
M13A; 2000-11-01~2002-07-01 |
24131-79C10-000 |
— | ||
| replacement | |||||
|
4
|
4
24131-55G50-000 SHAFT,COUNTERM13A; 2000-11-01~2002-07-01 |
24131-55G50-000 |
from US $97.67 |
||
|
5
|
5
24134-79C10-000 PLUG,COUNTERSHAFTM13A; 2000-11-01~2002-07-01 |
24134-79C10-000 |
from US $3.02 |
||
|
6
|
6
24147-79CT0-000 SHIM SET,COUNTERSHAFTM13A; 2000-11-01~2002-07-01 |
24147-79CT0-000 |
from US $55.85 |
||
