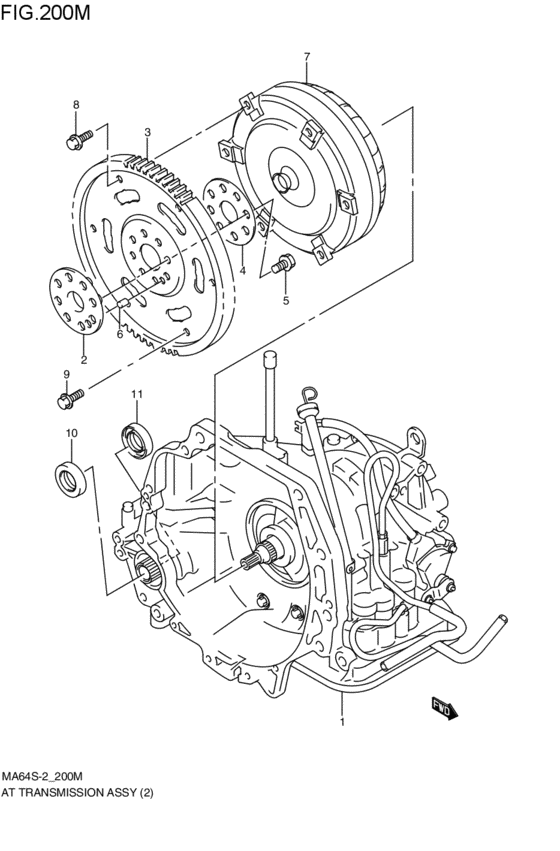

at - transmission assy (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-79C11-000
トランスミッションアッシ,オートマチック
M13A:2WD; 2000-11-01~2002-07-01 |
20002-79C11-000 |
— | ||
|
1
|
1
20002-79C11-111
トランスミッションアッシ,オートマチック
リビルト; M13A:2WD; 2000-11-01~2002-07-01 |
20002-79C11-111 |
— | ||
| replacement | |||||
|
1
|
1
20002-79C13-111
トランスミッションアッシ,オートマチック
リビルト; M13A:2WD; 2000-11-01~2002-07-01 |
20002-79C13-111 |
— | ||
|
2
|
2
22611-69G10-000 FLANGE,T/C DRIVE PLATE FRM13A; 2000-11-01~2002-07-01 |
22611-69G10-000 |
from US $22.91 |
||
|
3
|
3
22620-69G10-000 PLATE,TC DRIVEM13A; 2000-11-01~2002-07-01 |
22620-69G10-000 |
from US $92.97 |
||
|
4
|
4
22631-69G10-000 PLATE,TC DRIVE REARM13A; 2000-11-01~2002-07-01 |
22631-69G10-000 |
from US $5.60 |
||
|
5
|
5
09103-10305-000 BOLT(10X18.5)M13A; 2000-11-01~2002-07-01 |
09103-10305-000 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
09100-10275-000 BOLT(10X18.5)M13A; 2000-11-01~2002-07-01 |
09100-10275-000 |
from US $1.44 |
||
|
6
|
6
04221-08129-000 PINPin, knock M13A; 2000-11-01~2002-07-01 |
04221-08129-000 |
from US $0.91 |
||
|
7
|
7
22710-79C10-000 CONVERTER,TORQUEM13A; 2000-11-01~2002-07-01 |
22710-79C10-000 |
US $841.28 |
||
|
8
|
8
09103-08516-000 BOLT(8X9.5)M13A; 2000-11-01~2002-07-01 |
09103-08516-000 |
from US $1.12 |
||
|
9
|
9
09103-08517-000 BOLT(8X9.5)M13A; 2000-11-01~2002-07-01 |
09103-08517-000 |
from US $3.80 |
||
|
10
|
10
27611-79C10-000 SEAL,DIFF SIDE OIL,RM13A; 2000-11-01~2002-07-01 |
27611-79C10-000 |
from US $7.79 |
||
|
11
|
11
27612-79C10-000 SEAL,DIFF SIDE OIL, LHM13A; 2000-11-01~2002-07-01 |
27612-79C10-000 |
from US $8.46 |
||
