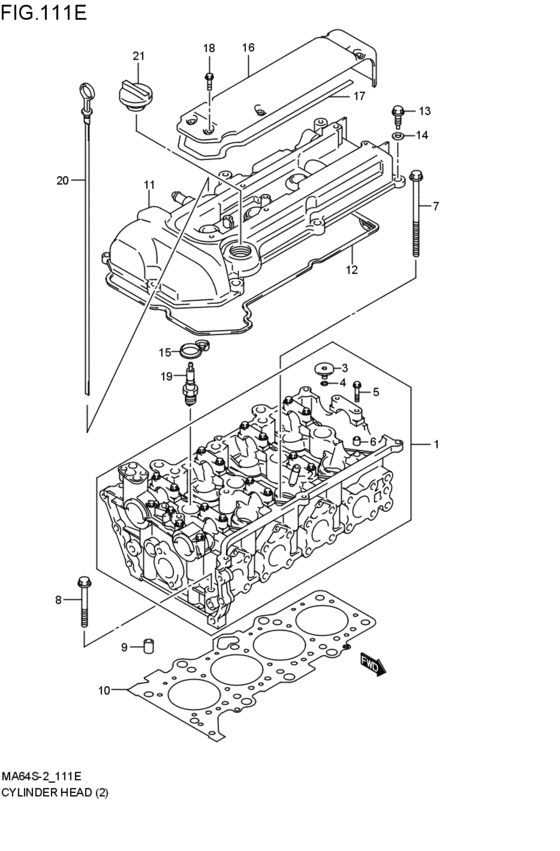

Cylinder head (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-54GE0-000
ヘッドアッシ,シリンダ
M13A; 2001-01-01~2002-07-01 |
11100-54GE0-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-54GE3-000 HEAD ASSY,CYLINDERM13A; 2001-01-01~2002-07-01 |
11100-54GE3-000 |
from US $1,519.38 |
||
|
1
|
1
11100-69GE0-000
ヘッドアッシ,シリンダ
M13A; 2000-11-01~2001-01-01 |
11100-69GE0-000 |
— | ||
|
2
|
2
11115-54G00-001 GUIDE,VALVEM13A; 2001-01-01~2002-07-01 |
11115-54G00-001 |
from US $15.84 |
||
|
2
|
2
11115-69G00-001
GUIDE,VALVE
M13A; 2000-11-01~2001-01-01 |
11115-69G00-001 |
— | ||
|
3
|
3
09248-18005-000 PLUGPlug, oil gallery M13A; 2000-11-01~2002-07-01 |
09248-18005-000 |
from US $8.51 |
||
| replacement | |||||
|
3
|
3
09248-18011-000 PLUG(18X8)Plug, oil gallery M13A; 2000-11-01~2002-07-01 |
09248-18011-000 |
from US $3.15 |
||
|
4
|
4
11216-77E00-000 GASKET,M18 PLUGM13A; 2000-11-01~2002-07-01 |
11216-77E00-000 |
from US $1.74 |
||
|
5
|
5
11128-69G00-000
ボルト,カムシャフトハウジング(6X39)
M13A; 2000-11-01~2002-07-01 |
11128-69G00-000 |
— | ||
| replacement | |||||
|
5
|
5
11128-69G01-000 BOLT,CAMSHAFT HOUSING 6X39M13A; 2000-11-01~2002-07-01 |
11128-69G01-000 |
from US $1.60 |
||
|
6
|
6
09206-08001-000 PIN(8X11)M13A; 2000-11-01~2002-07-01 |
09206-08001-000 |
from US $1.53 |
||
|
7
|
7
11117-69G00-000 BOLT,CYLINDER HEADM13A; 2000-11-01~2002-07-01 |
11117-69G00-000 |
from US $4.25 |
||
|
8
|
8
01550-08753-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-08753-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0875B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0875B-000 |
from US $1.40 |
||
|
8
|
8
01550-0875A-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0875A-000 |
from US $1.60 |
||
|
9
|
9
04211-13189-000 PINM13A; 2000-11-01~2002-07-01 |
04211-13189-000 |
from US $1.22 |
||
|
10
|
10
11141-69G01-000
GASKET CYLINDER HEAD
M13A; 2000-11-01~2002-07-01 |
11141-69G01-000 |
— | ||
| replacement | |||||
|
10
|
10
11141-69G03-000 GASKET,CYL HEADM13A; 2000-11-01~2002-07-01 |
11141-69G03-000 |
from US $69.14 |
||
|
11
|
11
11170-69GE0-000
カバー,シリンダヘッド
M13A; 2000-11-01~2002-07-01 |
11170-69GE0-000 |
— | ||
| replacement | |||||
|
11
|
11
11170-69GE3-000 Cover,cylinder headM13A; 2000-11-01~2002-07-01 |
11170-69GE3-000 |
from US $271.28 |
||
|
12
|
12
11189-69GE0-000
GASKETCYLINDER HEAD COVER
M13A; 2000-11-01~2002-07-01 |
11189-69GE0-000 |
— | ||
| replacement | |||||
|
12
|
12
11189-54GE0-000 GASKET,CYL HEAD COVERM13A; 2000-11-01~2002-07-01 |
11189-54GE0-000 |
from US $21.13 |
||
|
13
|
13
11178-69G00-000
BOLT
M13A; 2000-11-01~2002-07-01 |
11178-69G00-000 |
— | ||
| replacement | |||||
|
13
|
13
11178-69G01-000 BOLT,CYL HEAD COVERM13A; 2000-11-01~2002-07-01 |
11178-69G01-000 |
from US $1.60 |
||
|
14
|
14
11180-69G00-000 WASHER,CYL HEAD COVER SEALM13A; 2000-11-01~2002-07-01 |
11180-69G00-000 |
from US $2.72 |
||
|
15
|
15
11179-69G00-000 GASKET SPARK PLUG HOLEM13A; 2000-11-01~2002-07-01 |
11179-69G00-000 |
US $9.54 |
||
| replacement | |||||
|
15
|
15
11179-69G01-000 GASKET,SPARK PLUG HOLEM13A; 2000-11-01~2002-07-01 |
11179-69G01-000 |
from US $8.60 |
||
|
16
|
16
11181-69G01-000
COVER CYLINDER HEAD
M13A; 2000-11-01~2002-07-01 |
11181-69G01-000 |
— | ||
| replacement | |||||
|
16
|
16
11181-69G03-000 COVER,CYL HEAD UPRM13A; 2000-11-01~2002-07-01 |
11181-69G03-000 |
from US $45.65 |
||
|
17
|
17
11184-69G00-000 SEAL,CYL HEAD UPPER COVERM13A; 2000-11-01~2002-07-01 |
11184-69G00-000 |
from US $6.03 |
||
|
18
|
18
09103-06232-000 BOLT(6X16)M13A; 2000-11-01~2002-07-01 |
09103-06232-000 |
from US $0.47 |
||
|
19
|
19
09482-00547-000
スパークプラグ,IFR5E11
NGK; M13A; 2000-11-01~2002-07-01 |
09482-00547-000 |
— | ||
| replacement | |||||
|
19
|
19
09482-00549-000 SPARK PLUG (NGK IFR5J11)NGK; M13A; 2000-11-01~2002-07-01 |
09482-00549-000 |
from US $27.20 |
||
|
20
|
20
16910-69G01-000 GAUGE,OIL LEVELM13A; 2000-11-01~2002-07-01 |
16910-69G01-000 |
from US $13.50 |
||
|
21
|
21
16920-69G10-000
CAP COMP OIL FILLER
M13A; 2000-11-01~2002-07-01 |
16920-69G10-000 |
— | ||
| replacements | |||||
|
21
|
21
16920-83G00-000
Cap,oil filler
M13A; 2000-11-01~2002-07-01 |
16920-83G00-000 |
— | ||
|
21
|
21
16920-83G01-000 CAP OIL FILLERM13A; 2000-11-01~2002-07-01 |
16920-83G01-000 |
US $10.22 |
||
