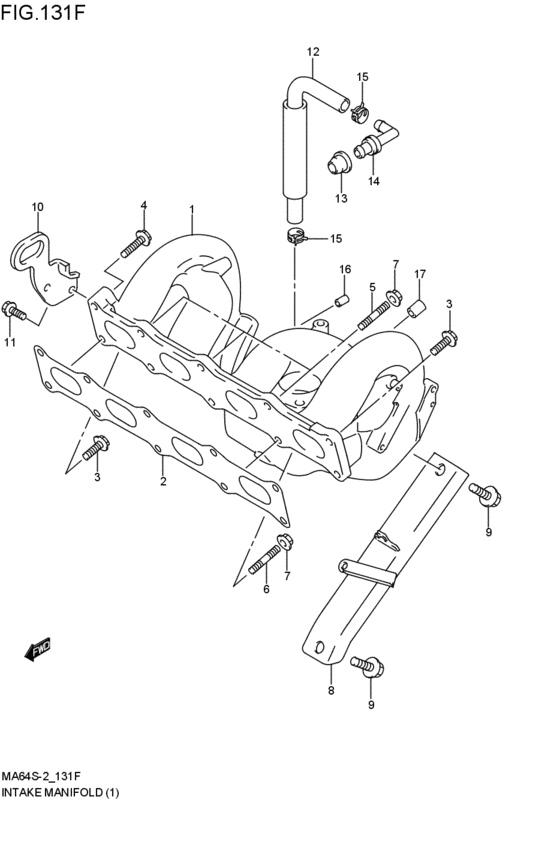

intake manifold (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-54D00-000
マニホールド,インテーク
M13A; 2000-11-01~2000-12-01 |
13110-54D00-000 |
— | ||
| replacements | |||||
|
1
|
1
09401-11419-000 CLIPM13A; 2000-11-01~2000-12-01 |
09401-11419-000 |
from US $1.42 |
||
|
1
|
1
18564-80G02-000 HOSE,CSTR PURGE NO.3M13A; 2000-11-01~2000-12-01 |
18564-80G02-000 |
from US $9.65 |
||
|
1
|
1
13110-54D04-000 MANIFOLD,INTKM13A; 2000-11-01~2000-12-01 |
13110-54D04-000 |
US $489.28 |
||
|
1
|
1
13110-54D02-000
マニホールド,インテーク
M13A; 2001-01-01~2002-07-01 |
13110-54D02-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-54D04-000 MANIFOLD,INTKM13A; 2001-01-01~2002-07-01 |
13110-54D04-000 |
US $489.28 |
||
|
2
|
2
13119-69G00-000 GASKET,INTK MANFM13A; 2000-11-01~2002-07-01 |
13119-69G00-000 |
from US $9.36 |
||
|
3
|
3
01550-08253-000
Bolt, rear
M13A; 2000-11-01~2001-05-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 BoltM13A; 2000-11-01~2001-05-01 |
01550-0825B-000 |
from US $1.06 |
||
|
3
|
3
01550-0825A-000 BoltM13A; 2000-11-01~2001-05-01 |
01550-0825A-000 |
from US $0.47 |
||
|
4
|
4
01550-08353-000
Bolt, rear
M13A; 2000-11-01~2002-07-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0835B-000 |
from US $1.28 |
||
|
4
|
4
01550-0835A-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
14119-81402-000 STUD BOLTM13A; 2000-11-01~2001-05-01 |
14119-81402-000 |
US $2.72 |
||
|
5
|
5
09108-08256-000 BOLT,STUD(8X36)M13A; 2001-05-01~2002-07-01 |
09108-08256-000 |
US $23.90 |
||
|
6
|
6
01421-08253-000
Stud bolt, no.2
M13A; 2000-11-01~2001-05-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0825A-000 BOLT,STUDM13A; 2000-11-01~2001-05-01 |
01421-0825A-000 |
from US $1.28 |
||
|
7
|
7
08316-10083-000
Nut
M13A; 2000-11-01~2002-07-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUTM13A; 2000-11-01~2002-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
13161-80GA0-000 STIFFENER,INTK MANF RRM13A; 2000-11-01~2002-07-01 |
13161-80GA0-000 |
from US $7.54 |
||
|
9
|
9
01550-10203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-1020A-000 BoltBolt, bal sprocket M13A; 2000-11-01~2002-07-01 |
01550-1020A-000 |
from US $0.96 |
||
|
10
|
10
11851-80G01-000
フック,エンジン
M13A; 2000-11-01~2002-07-01 |
11851-80G01-000 |
— | ||
| replacement | |||||
|
10
|
10
11851-64J01-000 HOOK,ENGINEM13A; 2000-11-01~2002-07-01 |
11851-64J01-000 |
US $7.40 |
||
|
11
|
11
01550-08203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0820B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
11
|
11
01550-0820A-000 BoltBolt, funnel bracket M13A; 2000-11-01~2002-07-01 |
01550-0820A-000 |
from US $1.12 |
||
|
12
|
12
11193-54D01-000 HOSE,PCVM13A; 2000-11-01~2002-07-01 |
11193-54D01-000 |
from US $12.94 |
||
|
13
|
13
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve M13A; 2000-11-01~2002-07-01 |
11198-58B00-000 |
from US $3.38 |
||
| replacement | |||||
|
13
|
13
11198-98L00-000 Seal,pcv ValveM13A; 2000-11-01~2002-07-01 |
11198-98L00-000 |
from US $2.74 |
||
|
14
|
14
18118-54D00-000 VALVE,PCVM13A; 2000-11-01~2002-07-01 |
18118-54D00-000 |
from US $16.31 |
||
|
15
|
15
09401-13414-000 CLIPClip, pcv hose M13A; 2000-11-01~2002-07-01 |
09401-13414-000 |
from US $1.60 |
||
|
16
|
16
09250-04003-000 PLUG(OD:8)Plug (od:8) M13A; 2000-11-01~2002-07-01 |
09250-04003-000 |
from US $0.59 |
||
| replacement | |||||
|
16
|
16
07130-0510B-000 BoltBolt, sensor M13A; 2000-11-01~2002-07-01 |
07130-0510B-000 |
from US $0.96 |
||
|
17
|
17
09251-05006-000 CAP(OD:11)Cap, balancer cover M13A; 2000-11-01~2002-07-01 |
09251-05006-000 |
from US $9.11 |
||
