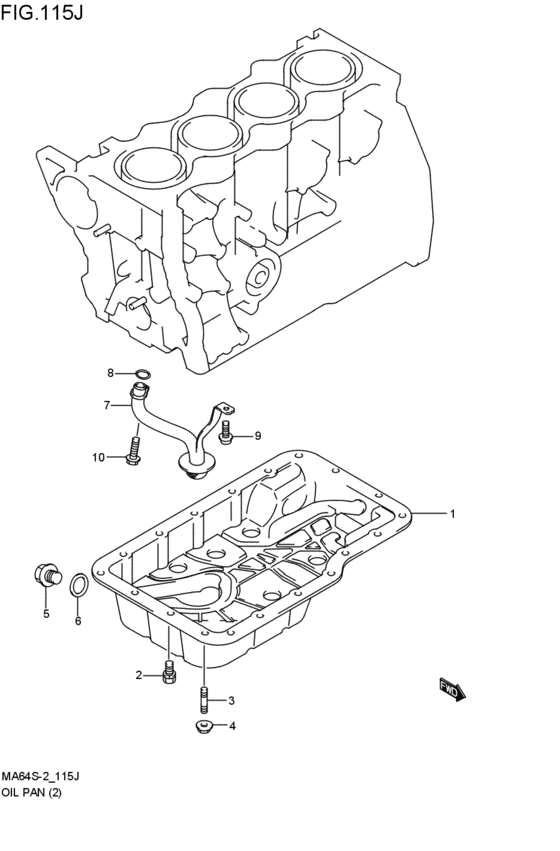

oil pan (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-69G00-000
パン,オイル
M13A; 2000-11-01~2001-02-01 |
11510-69G00-000 |
— | ||
| replacements | |||||
|
1
|
1
11510-69G03-000 PAN,OILM13A; 2000-11-01~2001-02-01 |
11510-69G03-000 |
from US $136.90 |
||
|
1
|
1
16520-69G04-000 STRAINER,OIL PUMPM13A; 2000-11-01~2001-02-01 |
16520-69G04-000 |
from US $32.20 |
||
|
1
|
1
11510-69G01-000
OIL PAN
M13A; 2001-02-01~2002-07-01 |
11510-69G01-000 |
— | ||
| replacement | |||||
|
1
|
1
11510-69G03-000 PAN,OILM13A; 2001-02-01~2002-07-01 |
11510-69G03-000 |
from US $136.90 |
||
|
2
|
2
09117-06033-000 BOLT(6X12)M13A; 2000-11-01~2001-12-01 |
09117-06033-000 |
from US $0.43 |
||
|
2
|
2
09117-06061-000 BOLT(6X16)M13A; 2002-01-01~2002-07-01 |
09117-06061-000 |
from US $0.92 |
||
|
3
|
3
09108-06113-000 BOLT,STUDM13A; 2000-11-01~2002-07-01 |
09108-06113-000 |
US $13.60 |
||
|
4
|
4
09159-06077-000 NUTM13A; 2002-01-01~2002-07-01 |
09159-06077-000 |
from US $1.28 |
||
|
4
|
4
08316-10063-000
Nut
M13A; 2000-11-01~2001-12-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUTM13A; 2000-11-01~2001-12-01 |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
09247-14027-000 PLUG(14X11.5)Plug, oil drain M13A; 2000-11-01~2002-07-01 |
09247-14027-000 |
from US $1.89 |
||
| replacement | |||||
|
5
|
5
09247-14044-000 DRAIN PLUG (M14x1.5)M13A; 2000-11-01~2002-07-01 |
09247-14044-000 |
from US $1.67 |
||
|
6
|
6
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union M13A; 2000-11-01~2002-07-01 |
09168-14015-000 |
from US $1.04 |
||
|
7
|
7
16520-69G00-000
ストレーナ,オイルポンプ
M13A; 2000-11-01~2001-02-01 |
16520-69G00-000 |
— | ||
|
7
|
7
16520-69G01-000
ストレーナ,オイルポンプ
M13A; 2001-02-01~2002-07-01 |
16520-69G01-000 |
— | ||
| replacement | |||||
|
7
|
7
16520-69G04-000 STRAINER,OIL PUMPM13A; 2001-02-01~2002-07-01 |
16520-69G04-000 |
from US $32.20 |
||
|
8
|
8
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) M13A; 2000-11-01~2002-07-01 |
09280-17002-000 |
from US $2.48 |
||
|
9
|
9
07120-06123-000
Bolt
M13A; 2000-11-01~2002-07-01 |
07120-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
07120-0612B-000 BoltPlug M13A; 2000-11-01~2002-07-01 |
07120-0612B-000 |
from US $0.96 |
||
|
10
|
10
07120-06163-000
Bolt
M13A; 2000-11-01~2002-07-01 |
07120-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
07120-0616B-000 BoltM13A; 2000-11-01~2002-07-01 |
07120-0616B-000 |
from US $0.96 |
||
