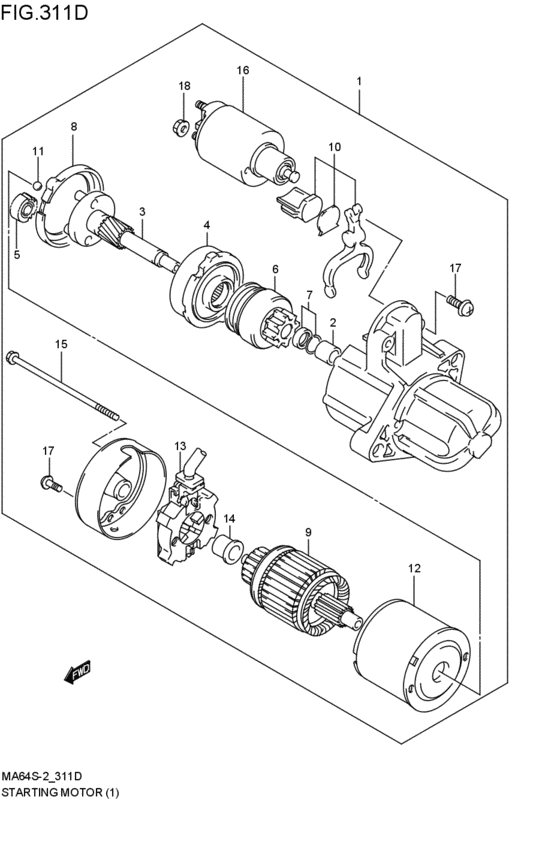

starting motor (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-80G10-000
MOTOR ASSYSTARTING
M13A; 2000-11-01~2002-07-01 |
31100-80G10-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-63J00-000 MOTOR ASSY,STARTINGM13A; 2000-11-01~2002-07-01 |
31100-63J00-000 |
US $568.71 |
||
|
2
|
2
31152-79030-000 BEARING,FRONTM13A; 2000-11-01~2002-07-01 |
31152-79030-000 |
from US $5.11 |
||
|
3
|
3
31341-75F10-000 SHAFT,GEARM13A; 2000-11-01~2002-07-01 |
31341-75F10-000 |
US $255.76 |
||
|
4
|
4
31343-75F10-000
モータ,スターティング
M13A; 2000-11-01~2002-07-01 |
31343-75F10-000 |
— | ||
| replacement | |||||
|
4
|
4
31343-80G00-000 INTERNAL GEARM13A; 2000-11-01~2002-07-01 |
31343-80G00-000 |
US $94.40 |
||
|
5
|
5
31344-86030-000 GEAR,PLNTYM13A; 2000-11-01~2002-07-01 |
31344-86030-000 |
from US $18.09 |
||
|
6
|
6
31320-86030-000 CLUTCH,OVER RUNNINGM13A; 2000-11-01~2002-07-01 |
31320-86030-000 |
from US $93.31 |
||
|
7
|
7
31313-86030-000 STOPPER SETM13A; 2000-11-01~2002-07-01 |
31313-86030-000 |
US $11.50 |
||
| replacement | |||||
|
7
|
7
31314-86030-000 Stopper SetM13A; 2000-11-01~2002-07-01 |
31314-86030-000 |
from US $11.50 |
||
|
8
|
8
31345-75F10-000 PACKINGM13A; 2000-11-01~2002-07-01 |
31345-75F10-000 |
US $3.38 |
||
| replacement | |||||
|
8
|
8
31345-80G00-000 PACKINGM13A; 2000-11-01~2002-07-01 |
31345-80G00-000 |
from US $3.38 |
||
|
9
|
9
31311-67D10-000 ARMATUREM13A; 2000-11-01~2002-07-01 |
31311-67D10-000 |
from US $256.91 |
||
|
10
|
10
31191-76A00-000 LEVER ASSYM13A; 2000-11-01~2002-07-01 |
31191-76A00-000 |
US $13.14 |
||
|
11
|
11
31193-86030-000 BALLM13A; 2000-11-01~2002-07-01 |
31193-86030-000 |
from US $0.83 |
||
|
12
|
12
31110-67D10-000 YOKE ASSYM13A; 2000-11-01~2002-07-01 |
31110-67D10-000 |
from US $213.35 |
||
|
13
|
13
31173-60A22-000 HOLDER ASSY,BRUSHM13A; 2000-11-01~2002-07-01 |
31173-60A22-000 |
from US $63.84 |
||
|
14
|
14
31172-64B60-000 BEARING,REARM13A; 2000-11-01~2002-07-01 |
31172-64B60-000 |
from US $8.21 |
||
|
15
|
15
31261-67D10-000 BoltM13A; 2000-11-01~2002-07-01 |
31261-67D10-000 |
from US $4.14 |
||
|
16
|
16
31220-86032-000 SWITCH ASSYM13A; 2000-11-01~2002-07-01 |
31220-86032-000 |
from US $107.37 |
||
|
17
|
17
31136-79030-000 SCREW ASSYM13A; 2000-11-01~2002-07-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
17
|
17
31175-79030-000 Screw SetM13A; 2000-11-01~2002-07-01 |
31175-79030-000 |
US $8.16 |
||
|
18
|
18
08316-10083-000
Nut
M13A; 2000-11-01~2002-07-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUTM13A; 2000-11-01~2002-07-01 |
08316-1008B-000 |
from US $0.76 |
||
