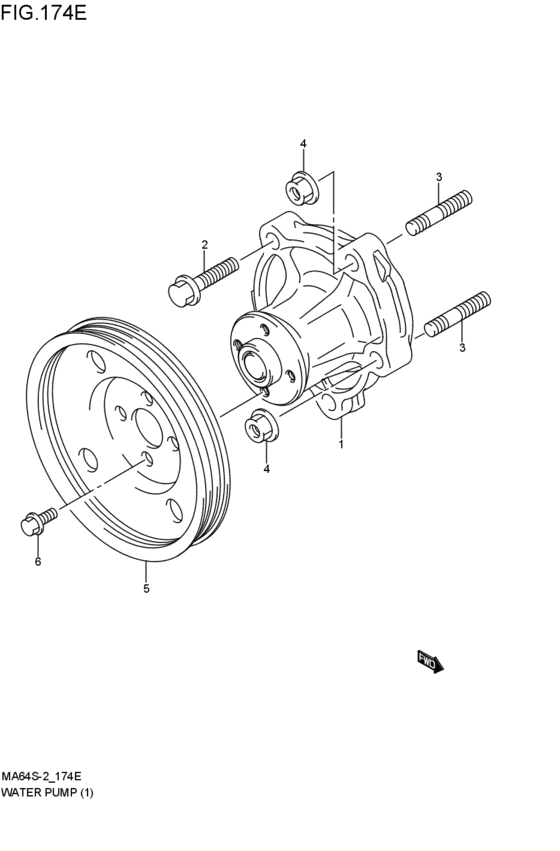

water pump (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-69G00-000
PUMP ASSY WATER
M13A; 2000-11-01~2002-07-01 |
17400-69G00-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-69G04-000 PUMP ASSY,WATERM13A; 2000-11-01~2002-07-01 |
17400-69G04-000 |
US $107.84 |
||
|
2
|
2
01550-08403-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0840B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0840B-000 |
from US $1.12 |
||
|
2
|
2
01550-0840A-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0840A-000 |
from US $1.12 |
||
|
3
|
3
01421-08303-000
Stud m 8x1.25 x
M13A; 2000-11-01~2002-07-01 |
01421-08303-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0830A-000 BOLT,STUDM13A; 2000-11-01~2002-07-01 |
01421-0830A-000 |
from US $1.13 |
||
|
4
|
4
08316-10083-000
Nut
M13A; 2000-11-01~2002-07-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUTM13A; 2000-11-01~2002-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
17511-69G00-000
PULLEY WATER PUMP
M13A; 2000-11-01~2002-07-01 |
17511-69G00-000 |
— | ||
| replacement | |||||
|
5
|
5
17511-69G01-000 PULLEY,WATER PUMPM13A; 2000-11-01~2002-07-01 |
17511-69G01-000 |
US $24.41 |
||
|
6
|
6
01550-06103-000
Bolt, front
M13A; 2000-11-01~2002-07-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0610B-000 BoltBolt M13A; 2000-11-01~2002-07-01 |
01550-0610B-000 |
from US $0.96 |
||
|
6
|
6
01550-0610A-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0610A-000 |
from US $0.96 |
||
