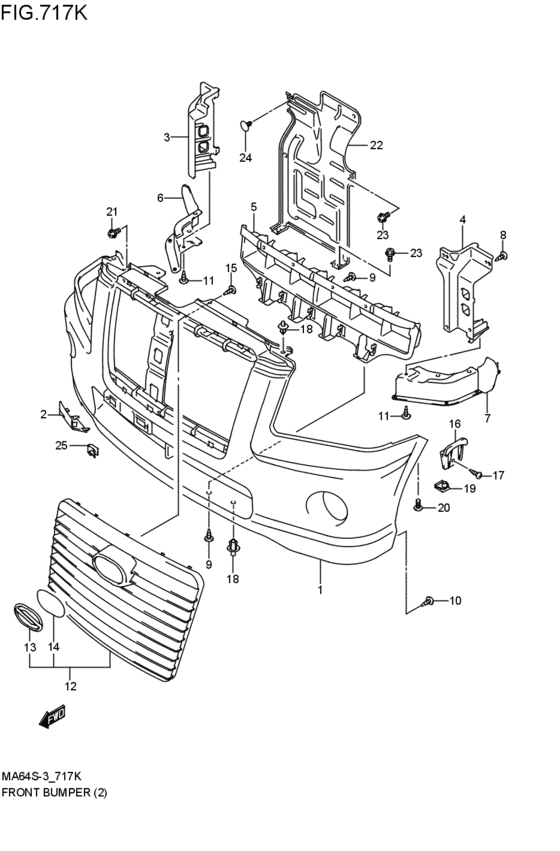

front bumper (XR; 2002-06-01~2003-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-78F50-Z7T
バンパ,フロント(ホワイト)
ホワイト; XR; 2002-06-01~2003-09-01 |
71711-78F50-Z7T |
— | ||
| replacement | |||||
|
1
|
1
71711-78F50-799 BUMPER,FR(PRIMARY)ホワイト; XR; 2002-06-01~2003-09-01 |
71711-78F50-799 |
US $535.04 |
||
|
1
|
1
71711-78F50-799 BUMPER,FR(PRIMARY)プライマリ-; XR; 2002-06-01~2003-09-01 |
71711-78F50-799 |
US $535.04 |
||
|
2
|
2
71712-78F50-ZJ3 COVER,FR BUMPERブラック; XR; 2002-06-01~2003-09-01 |
71712-78F50-ZJ3 |
US $29.62 |
||
|
2
|
2
71712-78F50-Z2J
Cover,fr bumper
ブル-; XR; 2002-06-01~2003-09-01 |
71712-78F50-Z2J |
— | ||
| replacement | |||||
|
2
|
2
71712-78F50-799 COVER,FR BUMPERブル-; XR; 2002-06-01~2003-09-01 |
71712-78F50-799 |
US $14.94 |
||
|
2
|
2
71712-78F50-Z2S
COVER,FR BUMPER
シルバ-; XR; 2002-06-01~2003-09-01 |
71712-78F50-Z2S |
— | ||
| replacement | |||||
|
2
|
2
71712-78F50-799 COVER,FR BUMPERシルバ-; XR; 2002-06-01~2003-09-01 |
71712-78F50-799 |
US $14.94 |
||
|
2
|
2
71712-78F50-Z7T COVER,FR BUMPERホワイト; XR; 2002-06-01~2003-09-01 |
71712-78F50-Z7T |
US $29.62 |
||
|
2
|
2
71712-78F50-Z9T
COVER,FR BUMPER
レッド; XR; 2002-06-01~2003-09-01 |
71712-78F50-Z9T |
— | ||
| replacement | |||||
|
2
|
2
71712-78F50-799 COVER,FR BUMPERレッド; XR; 2002-06-01~2003-09-01 |
71712-78F50-799 |
US $14.94 |
||
|
3
|
3
71723-78F50-000 BRACE,FR BUMPER,RXR; 2002-06-01~2003-09-01 |
71723-78F50-000 |
US $23.55 |
||
|
4
|
4
71733-78F50-000 BRACE,FR BUMPER,LXR; 2002-06-01~2003-09-01 |
71733-78F50-000 |
US $23.55 |
||
|
5
|
5
71771-78F50-5PK GARNISH,FR BPR LWRブラック; XR; 2002-06-01~2003-09-01 |
71771-78F50-5PK |
US $171.86 |
||
|
6
|
6
71722-78F50-000 EXTENSION,FR BUMPER SIDE,RXR; 2002-06-01~2003-09-01 |
71722-78F50-000 |
US $23.55 |
||
|
7
|
7
71732-78F50-000 EXTENSION,FR BUMPER SIDE,LXR; 2002-06-01~2003-09-01 |
71732-78F50-000 |
US $23.55 |
||
|
8
|
8
03541-05163-000
Screw
XR; 2002-06-01~2003-09-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
8
|
8
03541-0516A-000 SCREWXR; 2002-06-01~2003-09-01 |
03541-0516A-000 |
from US $0.76 |
||
|
9
|
9
03541-05163-000
Screw
XR; 2002-06-01~2003-09-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0516A-000 SCREWXR; 2002-06-01~2003-09-01 |
03541-0516A-000 |
from US $0.76 |
||
|
10
|
10
03541-05163-000
Screw
XR; 2002-06-01~2003-09-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0516A-000 SCREWXR; 2002-06-01~2003-09-01 |
03541-0516A-000 |
from US $0.76 |
||
|
11
|
11
03541-05163-000
Screw
XR; 2002-06-01~2003-09-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0516A-000 SCREWXR; 2002-06-01~2003-09-01 |
03541-0516A-000 |
from US $0.76 |
||
|
12
|
12
71740-78F51-GH4
GRILLE,RDTR
ブルー/ブラック/クローム; XR; 2002-06-01~2003-09-01 |
71740-78F51-GH4 |
— | ||
| replacement | |||||
|
12
|
12
71740-78F51-DVT
GRILLE,RDTR
ブルー/ブラック/クローム; XR; 2002-06-01~2003-09-01 |
71740-78F51-DVT |
— | ||
|
13
|
13
77811-52D00-0PG EMBLEM,S MARKクロ-ム; XR; 2002-06-01~2003-09-01 |
77811-52D00-0PG |
US $21.71 |
||
|
14
|
14
77812-78F50-0CB
シール,エンブレム(ブラック)
ブラック; XR; 2002-06-01~2003-09-01 |
77812-78F50-0CB |
— | ||
|
15
|
15
03541-04123-000
Screw
XR; 2002-06-01~2003-09-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
15
|
15
03541-0412B-000 SCREWScrew, plate XR; 2002-06-01~2003-09-01 |
03541-0412B-000 |
from US $0.80 |
||
|
15
|
15
03541-0412A-000 SCREWScrew, speedometer XR; 2002-06-01~2003-09-01 |
03541-0412A-000 |
from US $0.96 |
||
|
16
|
16
71851-60G00-000 HOLDER,BUMPER SIDEXR; 2002-06-01~2003-09-01 |
71851-60G00-000 |
from US $6.89 |
||
|
17
|
17
03512-05123-000
Screw
XR; 2002-06-01~2003-09-01 |
03512-05123-000 |
— | ||
| replacement | |||||
|
17
|
17
03511-0512A-000 SCREWXR; 2002-06-01~2003-09-01 |
03511-0512A-000 |
from US $0.96 |
||
|
18
|
18
09409-08327-000 CLIPXR; 2002-06-01~2003-09-01 |
09409-08327-000 |
from US $1.82 |
||
|
19
|
19
09148-05028-000 NUTXR; 2002-06-01~2003-09-01 |
09148-05028-000 |
from US $0.63 |
||
|
20
|
20
09136-05034-000 SCREW(5X16)XR; 2002-06-01~2003-09-01 |
09136-05034-000 |
from US $0.68 |
||
|
21
|
21
02162-06163-000
Screw
XR; 2002-06-01~2003-09-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
21
|
21
02162-0616B-000 SCREWBolt, adjust XR; 2002-06-01~2003-09-01 |
02162-0616B-000 |
from US $0.96 |
||
|
22
|
22
72390-78F00-000 COVER,ENGINE,FRXR; 2002-06-01~2003-09-01 |
72390-78F00-000 |
US $46 |
||
|
23
|
23
02162-06123-000
Bolt (6x12)
XR; 2002-06-01~2003-09-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
02162-0612B-000 SCREWBolt XR; 2002-06-01~2003-09-01 |
02162-0612B-000 |
from US $0.80 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket XR; 2002-06-01~2003-09-01 |
02162-0612A-000 |
from US $0.79 |
||
|
24
|
24
09409-05307-5ES CLIP(BLACK)ブラック; XR; 2002-06-01~2003-09-01 |
09409-05307-5ES |
US $1.60 |
||
|
25
|
25
71812-82010-000
Nut
XR; 2002-06-01~2003-09-01 |
71812-82010-000 |
— | ||
| replacement | |||||
|
25
|
25
09148-06021-000 NUTNut, air cleaner XR; 2002-06-01~2003-09-01 |
09148-06021-000 |
from US $1.34 |
||
