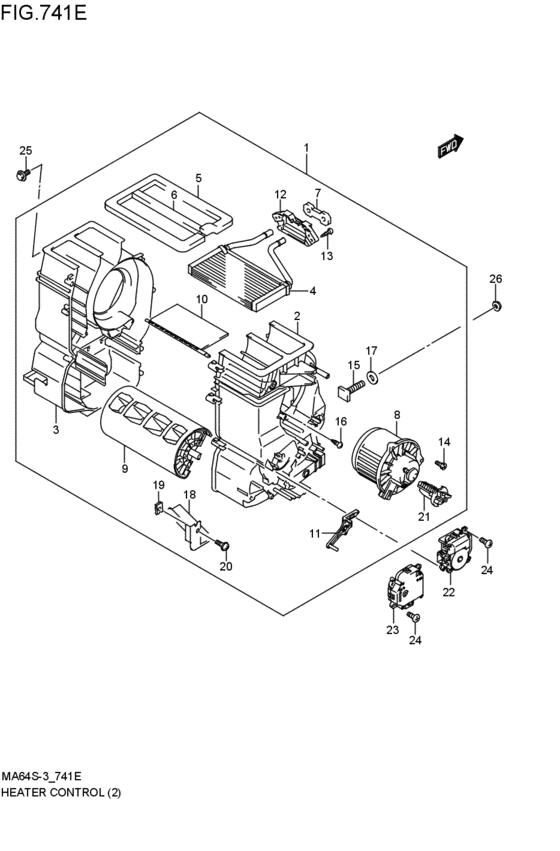

heater control (XR; 2002-06-01~2003-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-78F84-000
ヒータユニット
XR; 2002-06-01~2003-09-01 |
74100-78F84-000 |
— | ||
|
2
|
2
74111-78F05-000 CASE,HTR,LXR; 2002-06-01~2003-09-01 |
74111-78F05-000 |
US $71.39 |
||
|
3
|
3
74112-78F03-000
CASE,HTR,R
XR; 2002-06-01~2003-09-01 |
74112-78F03-000 |
— | ||
|
4
|
4
74120-80G00-000 CORE,HEATERXR; 2002-06-01~2003-09-01 |
74120-80G00-000 |
from US $404.80 |
||
|
5
|
5
74116-78F00-000 PACKINGXR; 2002-06-01~2003-09-01 |
74116-78F00-000 |
US $7.51 |
||
|
6
|
6
74117-78F00-000 PACKINGXR; 2002-06-01~2003-09-01 |
74117-78F00-000 |
US $6.96 |
||
|
7
|
7
74118-80G00-000 PACKINGXR; 2002-06-01~2003-09-01 |
74118-80G00-000 |
US $6.96 |
||
|
8
|
8
74150-78F00-000 MOTOR ASSY,FANXR; 2002-06-01~2003-09-01 |
74150-78F00-000 |
US $345.92 |
||
|
9
|
9
74171-78F00-000 DOOR ASSY,MODEXR; 2002-06-01~2003-09-01 |
74171-78F00-000 |
US $38.27 |
||
|
10
|
10
74172-78F00-000 DOOR ASSY,AIR MIXTUREXR; 2002-06-01~2003-09-01 |
74172-78F00-000 |
US $23.55 |
||
|
11
|
11
74181-78F00-000 LEVER,AIR MXTXR; 2002-06-01~2003-09-01 |
74181-78F00-000 |
US $9.90 |
||
|
12
|
12
74191-78F00-000 BRACKETXR; 2002-06-01~2003-09-01 |
74191-78F00-000 |
US $8.24 |
||
|
13
|
13
03511-04163-000
Screw
XR; 2002-06-01~2003-09-01 |
03511-04163-000 |
— | ||
| replacement | |||||
|
13
|
13
03511-0416A-000 SCREWXR; 2002-06-01~2003-09-01 |
03511-0416A-000 |
from US $2.45 |
||
|
14
|
14
74135-82000-000 SCREW,MOTORXR; 2002-06-01~2003-09-01 |
74135-82000-000 |
US $1.73 |
||
|
15
|
15
74115-65D00-000 BoltXR; 2002-06-01~2003-09-01 |
74115-65D00-000 |
US $3.61 |
||
|
16
|
16
03511-04163-000
Screw
XR; 2002-06-01~2003-09-01 |
03511-04163-000 |
— | ||
| replacement | |||||
|
16
|
16
03511-0416A-000 SCREWXR; 2002-06-01~2003-09-01 |
03511-0416A-000 |
from US $2.45 |
||
|
17
|
17
74119-78F00-000 WASHER,RBRXR; 2002-06-01~2003-09-01 |
74119-78F00-000 |
US $3.53 |
||
|
18
|
18
74910-78F00-000
ADAPTER,HTR,R
XR; 2003-03-01~2003-09-01 |
74910-78F00-000 |
— | ||
|
19
|
19
71812-82010-000
Nut
XR; 2003-03-01~2003-09-01 |
71812-82010-000 |
— | ||
| replacement | |||||
|
19
|
19
09148-06021-000 NUTNut, air cleaner XR; 2003-03-01~2003-09-01 |
09148-06021-000 |
from US $1.34 |
||
|
20
|
20
02112-76163-000
Screw
XR; 2003-03-01~2003-09-01 |
02112-76163-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-7616A-000 SCREWXR; 2003-03-01~2003-09-01 |
02112-7616A-000 |
from US $0.96 |
||
|
21
|
21
95626-78F80-000 DRIVER,BLOWER FANDENSO; XR; 2002-06-01~2003-09-01 |
95626-78F80-000 |
from US $96.05 |
||
|
22
|
22
95651-78F80-000
アクチュエータ,テンパレチャ
DENSO; XR; 2002-06-01~2003-09-01 |
95651-78F80-000 |
— | ||
| replacement | |||||
|
22
|
22
95651-78F81-000 ACTUATOR,TEMPDENSO; XR; 2002-06-01~2003-09-01 |
95651-78F81-000 |
US $92.74 |
||
|
23
|
23
95653-78F80-000 ACTUATOR,MODEDENSO; XR; 2002-06-01~2003-09-01 |
95653-78F80-000 |
from US $93.10 |
||
|
24
|
24
03541-04163-000
Screw
XR; 2002-06-01~2003-09-01 |
03541-04163-000 |
— | ||
| replacement | |||||
|
24
|
24
03541-0416A-000 SCREWScrew, trunk box lamp XR; 2002-06-01~2003-09-01 |
03541-0416A-000 |
from US $0.76 |
||
|
25
|
25
09113-06006-000 BOLT(6X20)XR; 2002-06-01~2003-09-01 |
09113-06006-000 |
US $12.50 |
||
| replacement | |||||
|
25
|
25
09113-06014-000 BOLT(6X20)XR; 2002-06-01~2003-09-01 |
09113-06014-000 |
US $14.40 |
||
|
26
|
26
09159-06081-000 NUTXR; 2002-06-01~2003-09-01 |
09159-06081-000 |
from US $1.31 |
||
