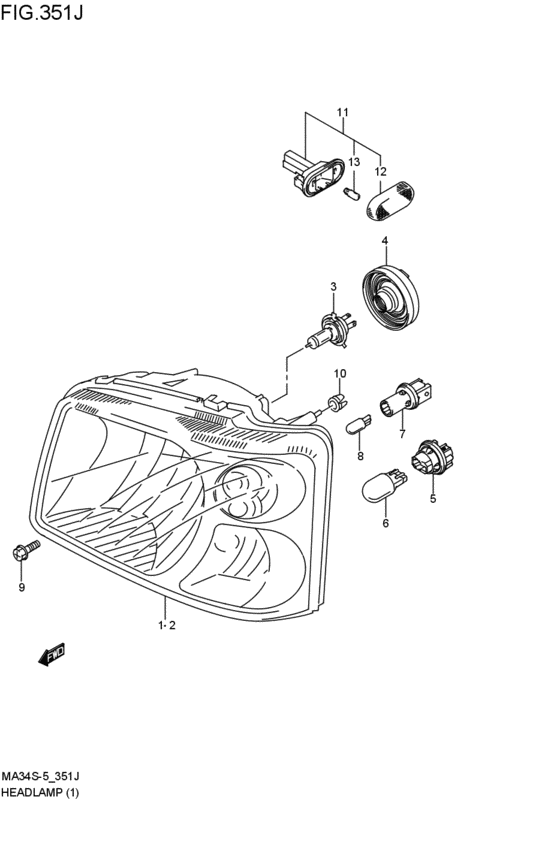

head lamp (XXL,XX; 2005-07-01~2007-05-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-82H70-000 UNIT,HEADLAMP,RXXL,XX; 2005-07-01~2007-05-01 |
35120-82H70-000 |
US $662.40 |
||
|
2
|
2
35320-82H70-000 UNIT,HEADLAMP,LXXL,XX; 2005-07-01~2007-05-01 |
35320-82H70-000 |
US $432.96 |
||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4)XXL,XX; 2005-07-01~2007-05-01 |
09471-12182-000 |
from US $29.50 |
||
|
4
|
4
35125-76G00-000 COVER,SOCKETXXL,XX; 2005-07-01~2007-05-01 |
35125-76G00-000 |
from US $9.79 |
||
|
5
|
5
35618-72J00-000 SOCKET,TURN SIGNALXXL,XX; 2005-07-01~2007-05-01 |
35618-72J00-000 |
US $9.20 |
||
|
6
|
6
09471-12202-000 BULB(12V21W/WY21W,AMBER)アンバー; XXL,XX; 2005-07-01~2007-05-01 |
09471-12202-000 |
from US $5.76 |
||
|
7
|
7
36118-78F00-000 SOCKET,POSITION LAMPXXL,XX; 2005-07-01~2007-05-01 |
36118-78F00-000 |
US $9.90 |
||
|
8
|
8
09471-12216-000 BULB(12V5W)Bulb (12v5w) XXL,XX; 2005-07-01~2007-05-01 |
09471-12216-000 |
from US $3.02 |
||
|
9
|
9
09122-76001-000 SCREW(6X16)XXL,XX; 2005-07-01~2007-05-01 |
09122-76001-000 |
from US $0.80 |
||
|
10
|
10
35153-50G00-000 FASTENER,LAMPXXL,XX; 2005-07-01~2007-05-01 |
35153-50G00-000 |
US $2.61 |
||
|
11
|
11
36410-75F01-000 LAMP ASSY,SIDE TURN SIGXXL,XX; 2005-07-01~2007-05-01 |
36410-75F01-000 |
from US $18.92 |
||
|
12
|
12
36412-75F00-000 LENS,SIDE TURNXXL,XX; 2005-07-01~2007-05-01 |
36412-75F00-000 |
from US $5.27 |
||
|
13
|
13
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; XXL,XX; 2005-07-01~2007-05-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; XXL,XX; 2005-07-01~2007-05-01 |
09471-12216-000 |
from US $3.02 |
||
