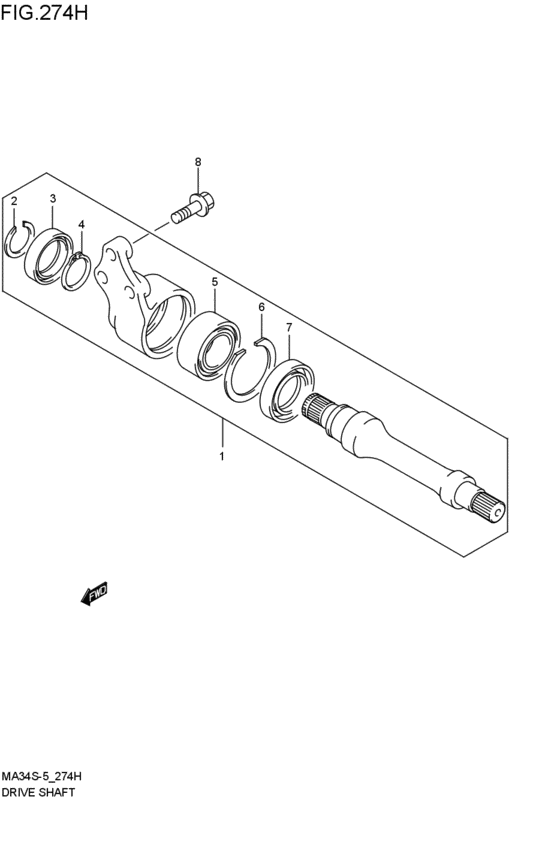

intermediate shaft (2WD; 2005-07-01~2007-05-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27800-79C10-000
シャフトアッシ,ドライブインタメジェート
2WD; 2005-07-01~2007-05-01 |
27800-79C10-000 |
— | ||
| replacement | |||||
|
1
|
1
27800-79C11-000 SHAFT ASSY,DRIVE INTERMEDIATE2WD; 2005-07-01~2007-05-01 |
27800-79C11-000 |
from US $482.24 |
||
|
2
|
2
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 2WD; 2005-07-01~2007-05-01 |
09381-24001-000 |
from US $1.60 |
||
|
3
|
3
27841-63B00-000 SEAL,DRIVE INTERMEDIATE,R2WD; 2005-07-01~2007-05-01 |
27841-63B00-000 |
from US $13.60 |
||
|
4
|
4
08331-3136A-000 CIRCLIP2WD; 2005-07-01~2007-05-01 |
08331-3136A-000 |
US $1.92 |
||
|
5
|
5
27831-63B20-000 BEARING,DRIVE INTERMEDIATE2WD; 2005-07-01~2007-05-01 |
27831-63B20-000 |
from US $74.43 |
||
|
6
|
6
27851-63B00-000 CIRCLIP,INTERMEDIATE BRG2WD; 2005-07-01~2007-05-01 |
27851-63B00-000 |
from US $1.17 |
||
|
7
|
7
27842-63B00-000 SEAL,DRIVE INTERMEDIATE,L2WD; 2005-07-01~2007-05-01 |
27842-63B00-000 |
from US $13.76 |
||
|
8
|
8
01550-1040A-000 Bolt2WD; 2005-07-01~2007-05-01 |
01550-1040A-000 |
from US $1.28 |
||
