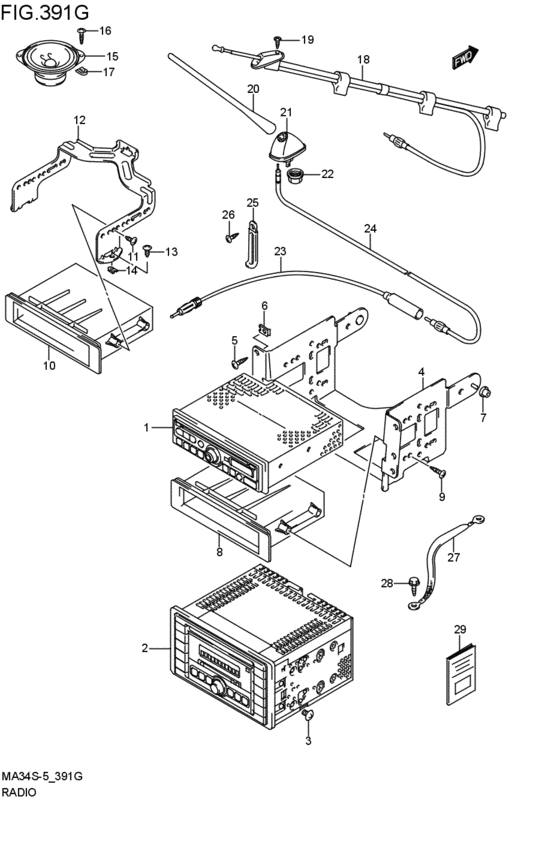

radio (2005-07-01~2007-05-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-72J30-CYY
チューナアッシ(AM/FM,CD)
シルバー/グレー; XXL,XX; 2005-07-01~2007-05-01 |
39101-72J30-CYY |
— | ||
|
3
|
3
02142-0508A-000 SCREWScrew, cap 2005-07-01~2007-05-01 |
02142-0508A-000 |
from US $0.76 |
||
|
4
|
4
39321-82H00-000 BRACKET,TUNER2005-07-01~2007-05-01 |
39321-82H00-000 |
US $15.97 |
||
|
5
|
5
03541-0516A-000 SCREW2005-07-01~2007-05-01 |
03541-0516A-000 |
from US $0.76 |
||
|
6
|
6
09148-05045-000 NUT2005-07-01~2007-05-01 |
09148-05045-000 |
from US $0.79 |
||
|
7
|
7
34955-54G10-000 BUSH,RADIO BRKT2005-07-01~2007-05-01 |
34955-54G10-000 |
from US $0.88 |
||
|
8
|
8
39182-70E51-000 POCKET,TUNERXXL,XX; 2005-07-01~2007-05-01 |
39182-70E51-000 |
from US $13.93 |
||
|
9
|
9
03241-0512A-000 SCREWXXL,XX; 2005-07-01~2007-05-01 |
03241-0512A-000 |
from US $0.68 |
||
|
10
|
10
39182-82H01-000 POCKET,TUNER2005-07-01~2007-05-01 |
39182-82H01-000 |
US $21.71 |
||
|
11
|
11
03241-0512A-000 SCREW2005-07-01~2007-05-01 |
03241-0512A-000 |
from US $0.68 |
||
|
12
|
12
39321-82H10-000 BRACKET,INSTPNL UPPER POCKET2005-07-01~2007-05-01 |
39321-82H10-000 |
US $12.81 |
||
|
13
|
13
03541-0512A-000 SCREW2005-07-01~2007-05-01 |
03541-0512A-000 |
from US $0.70 |
||
|
14
|
14
09148-05045-000 NUT2005-07-01~2007-05-01 |
09148-05045-000 |
from US $0.79 |
||
|
15
|
15
39102-76F00-000
スピーカアッシ
XX,XXSL; 2005-07-01~2007-05-01 |
39102-76F00-000 |
— | ||
|
16
|
16
03141-0512A-000 SCREWScrew, belt cooling duct 2005-07-01~2007-05-01 |
03141-0512A-000 |
from US $0.76 |
||
|
17
|
17
09148-05045-000 NUT2005-07-01~2007-05-01 |
09148-05045-000 |
from US $0.79 |
||
|
20
|
20
39251-78H00-000 ROD,ANTENNAXX,XXSL; 2005-07-01~2007-05-01 |
39251-78H00-000 |
US $60.80 |
||
|
21
|
21
39253-78H01-000 BASE,ANTENNAXX,XXSL; 2005-07-01~2007-05-01 |
39253-78H01-000 |
US $98.99 |
||
|
22
|
22
39269-78H00-000 NUT,ANTENNAXX,XXSL; 2005-07-01~2007-05-01 |
39269-78H00-000 |
US $4.67 |
||
|
23
|
23
39271-76F00-000 FEEDER,ANT L 4602005-07-01~2007-05-01 |
39271-76F00-000 |
US $22.08 |
||
|
24
|
24
39271-78F01-000 FEEDER,ANT ROOFXX,XXSL; 2005-07-01~2007-05-01 |
39271-78F01-000 |
US $37.17 |
||
|
25
|
25
09404-06433-000
CLAMP(L:80)
2005-07-01~2007-05-01 |
09404-06433-000 |
— | ||
| replacements | |||||
|
25
|
25
09404-06434-000
CLAMP(L:80 T:1.0)
2005-07-01~2007-05-01 |
09404-06434-000 |
— | ||
|
25
|
25
09404-06436-000 Clamp(L:80)2005-07-01~2007-05-01 |
09404-06436-000 |
from US $2.13 |
||
|
25
|
25
09404-06036-000 Clamp(L:80)2005-07-01~2007-05-01 |
09404-06036-000 |
from US $1.82 |
||
|
26
|
26
03541-0512A-000 SCREW2005-07-01~2007-05-01 |
03541-0512A-000 |
from US $0.70 |
||
|
27
|
27
39312-78F01-000 WIRE,NOISE SUPPR2WD; 2005-07-01~2007-05-01 |
39312-78F01-000 |
US $5.67 |
||
|
28
|
28
09115-06005-000 BOLT(6X16)2005-07-01~2007-05-01 |
09115-06005-000 |
from US $0.86 |
||
|
29
|
29
39103-72J00-000
マニュアル,オーディオ
XXL,XX; 2005-07-01~2007-05-01 |
39103-72J00-000 |
— | ||
| replacement | |||||
|
29
|
29
39103-72J02-000
New Genuine Part
XXL,XX; 2005-07-01~2007-05-01 |
39103-72J02-000 |
— | ||
