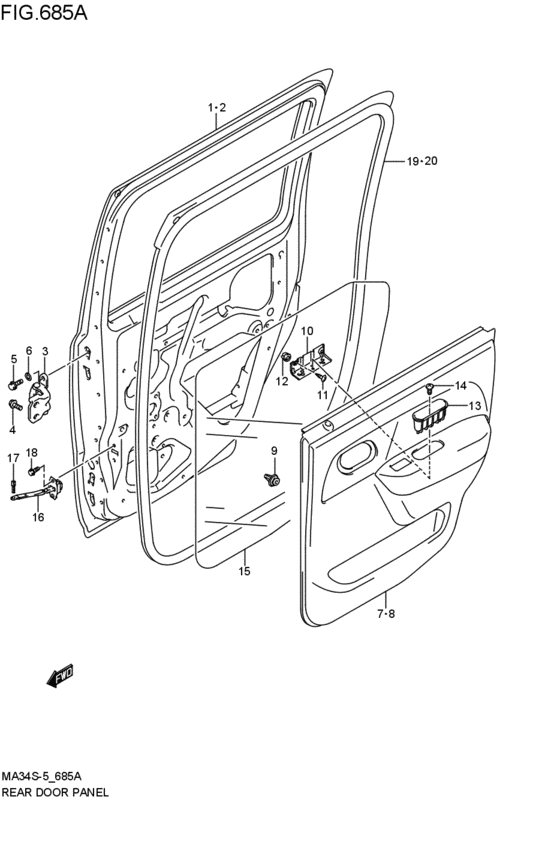

rear door panel (2005-07-01~2007-05-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-78F00-000 PANEL ASSY,REAR DOOR,Rライト; 2005-07-01~2007-05-01 |
68003-78F00-000 |
US $528 |
||
|
2
|
2
68004-78F00-000 PANEL ASSY,REAR DOOR,Lレフト; 2005-07-01~2007-05-01 |
68004-78F00-000 |
US $528 |
||
|
3
|
3
69410-76F00-000 HINGE,RR DOOR2005-07-01~2007-05-01 |
69410-76F00-000 |
from US $30.53 |
||
|
4
|
4
01551-0820A-000 Bolt2005-07-01~2007-05-01 |
01551-0820A-000 |
from US $0.96 |
||
|
5
|
5
09103-08389-000 BOLT(8X24)2005-07-01~2007-05-01 |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
69480-65D00-000
Washer
2005-07-01~2007-05-01 |
69480-65D00-000 |
— | ||
|
7
|
7
83730-84F11-CBL TRIM,REAR DOOR,R(BROWN)ブラウン,ライト; XXL,XX; 2005-07-01~2007-05-01 |
83730-84F11-CBL |
US $268.64 |
||
|
8
|
8
83740-84F11-CBL
TRIM,REAR DOOR,L(BROWN)
ブライン,レフト; XXL,XX; 2005-07-01~2007-05-01 |
83740-84F11-CBL |
— | ||
|
9
|
9
09409-08320-000 CLIP2005-07-01~2007-05-01 |
09409-08320-000 |
from US $1.13 |
||
|
10
|
10
83751-70G5V-000 BRACKET,DR TRIM2005-07-01~2007-05-01 |
83751-70G5V-000 |
US $6.73 |
||
|
11
|
11
03241-0612A-000 SCREW2005-07-01~2007-05-01 |
03241-0612A-000 |
US $0.80 |
||
|
12
|
12
09148-06007-000 NUT2005-07-01~2007-05-01 |
09148-06007-000 |
from US $0.91 |
||
|
13
|
13
83799-75H00-R8R HANDLE,SIDE DOOR TRIMブラウン; 2005-07-01~2007-05-01 |
83799-75H00-R8R |
US $9.64 |
||
|
14
|
14
09132-05058-000 SCREW(5X12)2005-07-01~2007-05-01 |
09132-05058-000 |
US $12.50 |
||
|
15
|
15
83911-60X51-000
Cover, door sealing (600x1200)
2005-07-01~2007-05-01 |
83911-60X51-000 |
— | ||
| replacement | |||||
|
15
|
15
83911-60X52-000 COVER,DR SEALING2005-07-01~2007-05-01 |
83911-60X52-000 |
US $6.06 |
||
|
16
|
16
81830-65D01-000 STOP,REAR DOOR OPEN2005-07-01~2007-05-01 |
81830-65D01-000 |
from US $32.02 |
||
|
17
|
17
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY2005-07-01~2007-05-01 |
81831-70B00-000 |
from US $1.60 |
||
|
18
|
18
09122-86004-000 SCREW(6X20)2005-07-01~2007-05-01 |
09122-86004-000 |
US $11.80 |
||
|
19
|
19
84661-76F00-000 WEATHERSTRIP,RR DR OPNG,Rライト; 2005-07-01~2007-05-01 |
84661-76F00-000 |
US $87.22 |
||
|
20
|
20
84671-76F00-000 WEATHERSTRIP,RR DR OPNG,Lレフト; 2005-07-01~2007-05-01 |
84671-76F00-000 |
US $87.22 |
||
