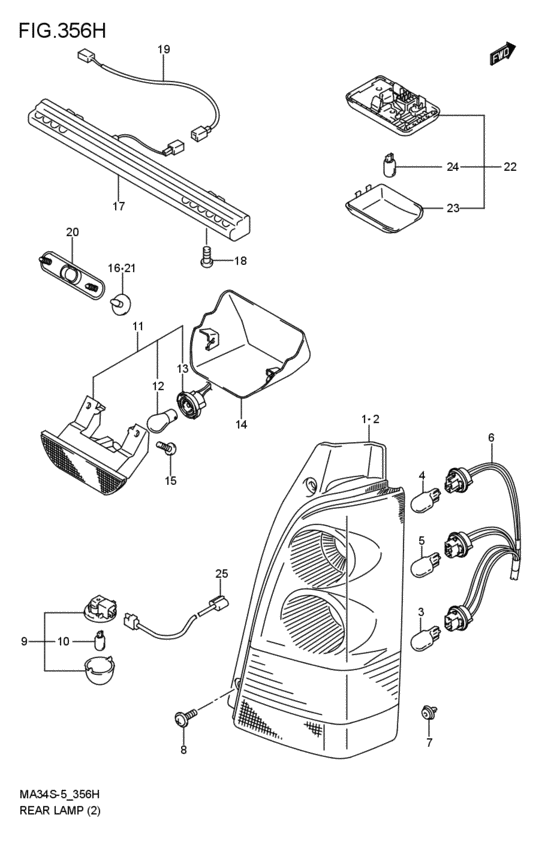

rear lamp (XX,XXSL; 2005-07-01~2007-05-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-82H02-000 LAMP UNIT,RR COMB,RXX,XXSL; 2005-07-01~2007-05-01 |
35650-82H02-000 |
US $185.84 |
||
|
2
|
2
35670-82H02-000 LAMP UNIT,RR COMB,LXX,XXSL; 2005-07-01~2007-05-01 |
35670-82H02-000 |
US $185.84 |
||
|
3
|
3
09471-12192-000 BULB(12V21/5W)XX,XXSL; 2005-07-01~2007-05-01 |
09471-12192-000 |
from US $3.19 |
||
|
4
|
4
09471-12202-000 BULB(12V21W/WY21W,AMBER)アンバー; XX,XXSL; 2005-07-01~2007-05-01 |
09471-12202-000 |
from US $5.76 |
||
|
5
|
5
09471-12191-000 BULB(12V21W)XX,XXSL; 2005-07-01~2007-05-01 |
09471-12191-000 |
from US $5.04 |
||
|
6
|
6
35658-82H00-000 SOCKET&CORD,RR COMBXX,XXSL; 2005-07-01~2007-05-01 |
35658-82H00-000 |
US $43.06 |
||
|
7
|
7
71812-78F00-000 CLIPXX,XXSL; 2005-07-01~2007-05-01 |
71812-78F00-000 |
from US $1.67 |
||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust XX,XXSL; 2005-07-01~2007-05-01 |
02162-0616B-000 |
from US $0.96 |
||
|
9
|
9
35910-75F12-000 Lamp assy,licenseXX,XXSL; 2005-07-01~2007-05-01 |
35910-75F12-000 |
from US $14.33 |
||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) XX,XXSL; 2005-07-01~2007-05-01 |
09471-12216-000 |
from US $3.02 |
||
|
11
|
11
35820-82H10-000
ランプユニット,ハイマウントストップ
XX; 2005-07-01~2007-05-01 |
35820-82H10-000 |
— | ||
| replacement | |||||
|
11
|
11
35820-82H12-000
New Genuine Part
XX; 2005-07-01~2007-05-01 |
35820-82H12-000 |
— | ||
|
12
|
12
09471-12045-000 BULB(12V21W)STANLEY,A4957E; XX; 2005-07-01~2007-05-01 |
09471-12045-000 |
from US $3.11 |
||
|
13
|
13
35818-73H10-000
Socket& cord assy
XX; 2005-07-01~2007-05-01 |
35818-73H10-000 |
— | ||
| replacement | |||||
|
13
|
13
35818-73H11-000 SOCKET&CORD ASSYXX; 2005-07-01~2007-05-01 |
35818-73H11-000 |
US $11.52 |
||
|
14
|
14
35821-73H01-P4Z COVER,HIGH MOUNT STOP LAMPグレ-; XX; 2005-07-01~2007-05-01 |
35821-73H01-P4Z |
US $37.54 |
||
|
15
|
15
02142-0616A-000 SCREWXX; 2005-07-01~2007-05-01 |
02142-0616A-000 |
from US $0.76 |
||
|
16
|
16
09250-05011-5PK CAP(OD:12)Plug ブラック; XX; 2005-07-01~2007-05-01 |
09250-05011-5PK |
from US $2.21 |
||
|
22
|
22
36210-74F02-6GS LAMP ASSY,RR ROOMグレ-; XX,XXSL; 2005-07-01~2007-05-01 |
36210-74F02-6GS |
from US $25.25 |
||
|
23
|
23
36212-74F00-000 LENS,ROOM LAMPXX,XXSL; 2005-07-01~2007-05-01 |
36212-74F00-000 |
from US $4.05 |
||
|
24
|
24
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; XX,XXSL; 2005-07-01~2007-05-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
24
|
24
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; XX,XXSL; 2005-07-01~2007-05-01 |
09471-12216-000 |
from US $3.02 |
||
|
25
|
25
36843-78F00-000 WIRE,LICENSE LAMPXX,XXSL; 2005-07-01~2007-05-01 |
36843-78F00-000 |
US $14.87 |
||
