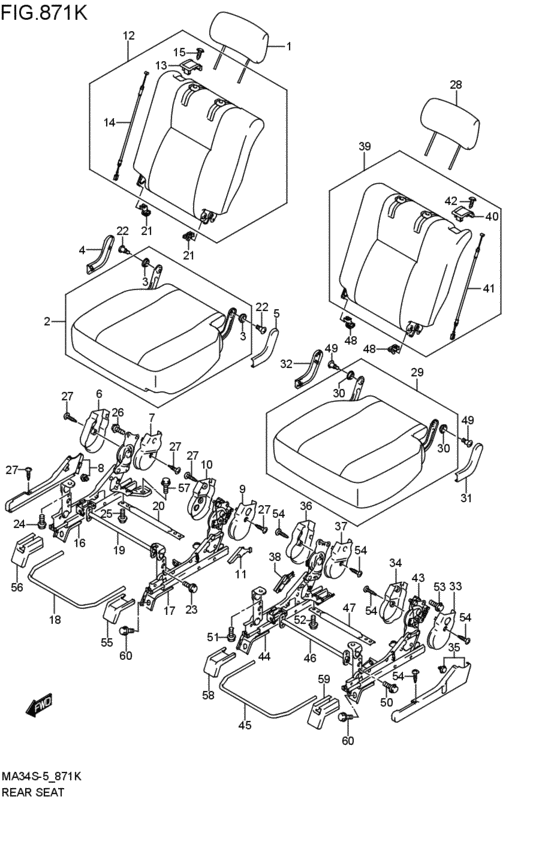

rear seat (ライト / レフト; 2005-07-01~2007-05-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-82H11-T6L HEADRESTRAINT ASSYブラウン; XXL,XX; 2005-07-01~2007-01-01 |
86401-82H11-T6L |
US $94.94 |
||
|
1
|
1
86401-82H20-T6L
HEADRESTRAINT ASSY,RR
ブラウン; XXL,XX; 2007-01-01~2007-05-01 |
86401-82H20-T6L |
— | ||
|
2
|
2
87101-82H10-CBJ
Cushion assy,rr,r(brown)
ブラウン; XXL,XX; 2005-07-01~2007-05-01 |
87101-82H10-CBJ |
— | ||
| replacement | |||||
|
2
|
2
87101-82H11-CBJ
CUSHION ASSY,RR,R
ブラウン; XXL,XX; 2005-07-01~2007-05-01 |
87101-82H11-CBJ |
— | ||
|
3
|
3
87291-76F00-000 BUSH,CUSH STAY FIX2005-07-01~2007-05-01 |
87291-76F00-000 |
US $3.64 |
||
|
4
|
4
87172-82H10-R8R COVER,STAY OUTSIDE,Rブラウン; 2005-07-01~2007-05-01 |
87172-82H10-R8R |
US $6.11 |
||
|
5
|
5
87171-82H10-R8R COVER,STAY INSIDE,Rブラウン; 2005-07-01~2007-05-01 |
87171-82H10-R8R |
US $6.11 |
||
|
6
|
6
87221-73H10-R8R
COVER,UPPER OUTSIDE,R
ブラウン; 2005-07-01~2007-05-01 |
87221-73H10-R8R |
— | ||
|
7
|
7
87222-73H10-R8R
COVER,UPPER INSIDE,R
ブラウン; 2005-07-01~2007-05-01 |
87222-73H10-R8R |
— | ||
|
8
|
8
87223-73H10-R8R
COVER,LOWER OUTSIDE,R
ブラウン; 2005-07-01~2007-05-01 |
87223-73H10-R8R |
— | ||
|
9
|
9
87721-73H10-R8R
COVER,RCLNG UPPER OUTSIDE,L
ブラウン; 2005-07-01~2007-05-01 |
87721-73H10-R8R |
— | ||
|
10
|
10
87722-73H10-R8R
COVER,RCLNG UPPER INSIDE,L
ブラウン; 2005-07-01~2007-05-01 |
87722-73H10-R8R |
— | ||
|
11
|
11
87423-82H10-000
COVER,HINGE LOWER OUTSIDE,R
2005-07-01~2007-05-01 |
87423-82H10-000 |
— | ||
|
12
|
12
87301-82H50-CBJ
Back assy,rr,r(brown)
ブラウン; XXL,XX; 2005-07-01~2007-01-01 |
87301-82H50-CBJ |
— | ||
|
12
|
12
87301-82H71-CBJ
Back assy,rr r
ブラウン; XXL,XX; 2007-01-01~2007-05-01 |
87301-82H71-CBJ |
— | ||
| replacement | |||||
|
12
|
12
87301-82H72-CBJ
BACK ASSY,RR,R
ブラウン; XXL,XX; 2007-01-01~2007-05-01 |
87301-82H72-CBJ |
— | ||
|
13
|
13
87290-54G00-P4Z KNOB,RECL RELEASEグレ-; 2005-07-01~2007-05-01 |
87290-54G00-P4Z |
US $19.32 |
||
|
14
|
14
87294-82H10-000 CABLE,RCLNG RELEASE2005-07-01~2007-05-01 |
87294-82H10-000 |
US $12.70 |
||
|
15
|
15
03241-0508A-000 SCREW2005-07-01~2007-05-01 |
03241-0508A-000 |
US $0.80 |
||
|
16
|
16
86830-82H11-000
ADJUSTER ASSY,RR OUTSIDE,R
2005-07-01~2007-05-01 |
86830-82H11-000 |
— | ||
|
17
|
17
86810-82H11-000
ADJUSTER ASSY,RR INSIDE,R
2005-07-01~2007-05-01 |
86810-82H11-000 |
— | ||
|
18
|
18
86781-82H10-000
HANDLE,RR ADJUSTER,R
2005-07-01~2007-05-01 |
86781-82H10-000 |
— | ||
|
19
|
19
86851-82H10-000
MEMBER,RR ADJUSTER
2005-07-01~2007-05-01 |
86851-82H10-000 |
— | ||
|
20
|
20
85771-82H10-000
MEMBER,RR
2005-07-01~2007-05-01 |
85771-82H10-000 |
— | ||
|
21
|
21
87253-82H10-000 CLAMP,RECL ROD2005-07-01~2007-05-01 |
87253-82H10-000 |
US $4.38 |
||
|
22
|
22
87295-73H00-000 SCREW,CUSH STAY FIX2005-07-01~2007-05-01 |
87295-73H00-000 |
US $3.09 |
||
|
23
|
23
01550-0612A-000 Bolt2005-07-01~2007-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
24
|
24
01550-0812A-000 Bolt2005-07-01~2007-05-01 |
01550-0812A-000 |
from US $0.91 |
||
|
25
|
25
01550-0816A-000 BoltBolt, rear 2005-07-01~2007-05-01 |
01550-0816A-000 |
from US $0.91 |
||
|
26
|
26
01550-1016A-000 BoltPlug, oil gallery 2005-07-01~2007-05-01 |
01550-1016A-000 |
from US $4.96 |
||
|
27
|
27
03241-0508A-000 SCREW2005-07-01~2007-05-01 |
03241-0508A-000 |
US $0.80 |
||
|
28
|
28
86401-82H11-T6L HEADRESTRAINT ASSYブラウン; XXL,XX; 2005-07-01~2007-01-01 |
86401-82H11-T6L |
US $94.94 |
||
|
28
|
28
86401-82H20-T6L
HEADRESTRAINT ASSY,RR
ブラウン; XXL,XX; 2007-01-01~2007-05-01 |
86401-82H20-T6L |
— | ||
|
29
|
29
87102-82H10-CBJ
CUSHION ASSY,RR,L(BROWN)
XXL,XX; 2005-07-01~2007-05-01 |
87102-82H10-CBJ |
— | ||
|
30
|
30
87291-76F00-000 BUSH,CUSH STAY FIX2005-07-01~2007-05-01 |
87291-76F00-000 |
US $3.64 |
||
|
31
|
31
87171-82H10-R8R COVER,STAY INSIDE,Rブラウン; 2005-07-01~2007-05-01 |
87171-82H10-R8R |
US $6.11 |
||
|
32
|
32
87172-82H10-R8R COVER,STAY OUTSIDE,Rブラウン; 2005-07-01~2007-05-01 |
87172-82H10-R8R |
US $6.11 |
||
|
33
|
33
87721-73H10-R8R
COVER,RCLNG UPPER OUTSIDE,L
ブラウン; 2005-07-01~2007-05-01 |
87721-73H10-R8R |
— | ||
|
34
|
34
87722-73H10-R8R
COVER,RCLNG UPPER INSIDE,L
ブラウン; 2005-07-01~2007-05-01 |
87722-73H10-R8R |
— | ||
|
35
|
35
87723-73H10-R8R
COVER,RECL LOWER OUT,L
ブラウン; 2005-07-01~2007-05-01 |
87723-73H10-R8R |
— | ||
|
36
|
36
87221-73H10-R8R
COVER,UPPER OUTSIDE,R
ブラウン; 2005-07-01~2007-05-01 |
87221-73H10-R8R |
— | ||
|
37
|
37
87222-73H10-R8R
COVER,UPPER INSIDE,R
ブラウン; 2005-07-01~2007-05-01 |
87222-73H10-R8R |
— | ||
|
38
|
38
87923-82H10-000
COVER,HINGE LOWER OUTSIDE,L
2005-07-01~2007-05-01 |
87923-82H10-000 |
— | ||
|
39
|
39
87302-82H50-CBJ
Back assy,rr,l(brown)
ブラウン; XXL,XX; 2005-07-01~2007-01-01 |
87302-82H50-CBJ |
— | ||
|
39
|
39
87302-82H71-CBJ
Back assy,rr l
ブラウン; XXL,XX; 2007-01-01~2007-05-01 |
87302-82H71-CBJ |
— | ||
| replacement | |||||
|
39
|
39
87302-82H72-CBJ
BACK ASSY,RR,L
ブラウン; XXL,XX; 2007-01-01~2007-05-01 |
87302-82H72-CBJ |
— | ||
|
40
|
40
87290-54G00-P4Z KNOB,RECL RELEASEグレ-; 2005-07-01~2007-05-01 |
87290-54G00-P4Z |
US $19.32 |
||
|
41
|
41
87294-82H10-000 CABLE,RCLNG RELEASE2005-07-01~2007-05-01 |
87294-82H10-000 |
US $12.70 |
||
|
42
|
42
03241-0508A-000 SCREW2005-07-01~2007-05-01 |
03241-0508A-000 |
US $0.80 |
||
|
43
|
43
86880-82H11-000 ADJUSTER ASSY,RR OUTSIDE,L2005-07-01~2007-05-01 |
86880-82H11-000 |
US $187.68 |
||
|
44
|
44
86860-82H11-000 ADJUSTER ASSY,RR INSIDE,L2005-07-01~2007-05-01 |
86860-82H11-000 |
US $187.68 |
||
|
45
|
45
86781-82H10-000
HANDLE,RR ADJUSTER,R
2005-07-01~2007-05-01 |
86781-82H10-000 |
— | ||
|
46
|
46
86851-82H10-000
MEMBER,RR ADJUSTER
2005-07-01~2007-05-01 |
86851-82H10-000 |
— | ||
|
47
|
47
85771-82H10-000
MEMBER,RR
2005-07-01~2007-05-01 |
85771-82H10-000 |
— | ||
|
48
|
48
87253-82H10-000 CLAMP,RECL ROD2005-07-01~2007-05-01 |
87253-82H10-000 |
US $4.38 |
||
|
49
|
49
87295-73H00-000 SCREW,CUSH STAY FIX2005-07-01~2007-05-01 |
87295-73H00-000 |
US $3.09 |
||
|
50
|
50
01550-0612A-000 Bolt2005-07-01~2007-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
51
|
51
01550-0812A-000 Bolt2005-07-01~2007-05-01 |
01550-0812A-000 |
from US $0.91 |
||
|
52
|
52
01550-0816A-000 BoltBolt, rear 2005-07-01~2007-05-01 |
01550-0816A-000 |
from US $0.91 |
||
|
53
|
53
01550-1016A-000 BoltPlug, oil gallery 2005-07-01~2007-05-01 |
01550-1016A-000 |
from US $4.96 |
||
|
54
|
54
03241-0508A-000 SCREW2005-07-01~2007-05-01 |
03241-0508A-000 |
US $0.80 |
||
|
55
|
55
87491-73H10-R8R
COVER,FR INSIDE
ライト シート,ブラウン; 2005-07-01~2007-05-01 |
87491-73H10-R8R |
— | ||
|
56
|
56
87492-73H10-R8R
COVER,FR OUTSIDE
ライト シート,ブラウン; 2005-07-01~2007-05-01 |
87492-73H10-R8R |
— | ||
|
57
|
57
01551-1020A-000 Boltライト シート; 2005-07-01~2007-05-01 |
01551-1020A-000 |
US $17.30 |
||
|
58
|
58
87491-73H10-R8R
COVER,FR INSIDE
レフト シート,ブラウン; 2005-07-01~2007-05-01 |
87491-73H10-R8R |
— | ||
|
59
|
59
87492-73H10-R8R
COVER,FR OUTSIDE
レフト シート,ブラウン; 2005-07-01~2007-05-01 |
87492-73H10-R8R |
— | ||
|
60
|
60
01551-1020A-000 Boltレフト シート; 2005-07-01~2007-05-01 |
01551-1020A-000 |
US $17.30 |
||
