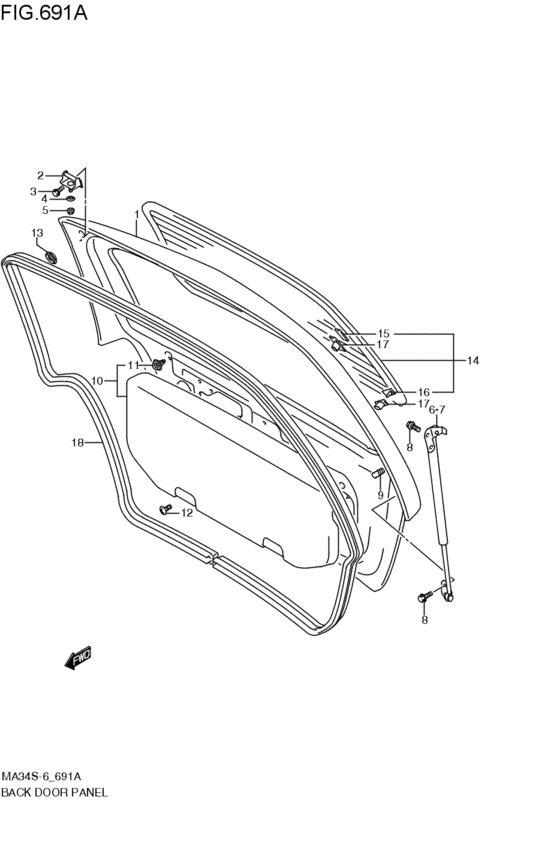

back door panel (2007-06-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-78FD0-000 PANEL ASSY,BACK DOOR2007-06-01~ |
69100-78FD0-000 |
US $718.08 |
||
|
2
|
2
69510-76G00-000 HINGE,BACK DOOR2007-06-01~ |
69510-76G00-000 |
from US $16.49 |
||
|
3
|
3
01550-0612A-000 Bolt2007-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
69571-76G00-000 PACKING,BACK DR HNG2007-06-01~ |
69571-76G00-000 |
US $2.24 |
||
|
5
|
5
08361-2508A-000 NUT2007-06-01~ |
08361-2508A-000 |
from US $0.96 |
||
|
6
|
6
81850-78F00-000 BALANCER,BACK DR,R2007-06-01~ |
81850-78F00-000 |
US $103.04 |
||
|
7
|
7
81860-78F00-000 BALANCER,BACK DR,L2007-06-01~ |
81860-78F00-000 |
US $103.04 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
9
|
9
82683-60B10-000 CUSHION2007-06-01~ |
82683-60B10-000 |
from US $1.92 |
||
|
10
|
10
83770-78F01-R8R TRIM,BACK DOOR2007-06-01~ |
83770-78F01-R8R |
US $113.34 |
||
|
11
|
11
76216-76F20-000 CLIP,QTR TRIM2007-06-01~ |
76216-76F20-000 |
from US $1.89 |
||
|
12
|
12
02142-0616A-000 SCREW2007-06-01~ |
02142-0616A-000 |
from US $0.76 |
||
|
13
|
13
09250-20023-000 CAP(OD:25.8)2007-06-01~ |
09250-20023-000 |
from US $1.67 |
||
|
14
|
14
84570-78F10-000 GLASS,BACK DR WINDOWCENTRAL ダークグレー; XX; 2007-06-01~ |
84570-78F10-000 |
US $443.52 |
||
|
15
|
15
84513-76F00-000 MALE,GLASS FASTENER NO.22007-06-01~ |
84513-76F00-000 |
from US $1.60 |
||
|
16
|
16
84572-74G00-000 MALE,GLASS FASTENER NO.12007-06-01~ |
84572-74G00-000 |
from US $3.20 |
||
|
17
|
17
84515-65D00-000 FEMALE,GLASS FASTENER NO.22007-06-01~ |
84515-65D00-000 |
from US $3.60 |
||
|
18
|
18
84681-78F00-000 WEATHERSTRIP,BACK DR OPNG2007-06-01~ |
84681-78F00-000 |
US $90.53 |
