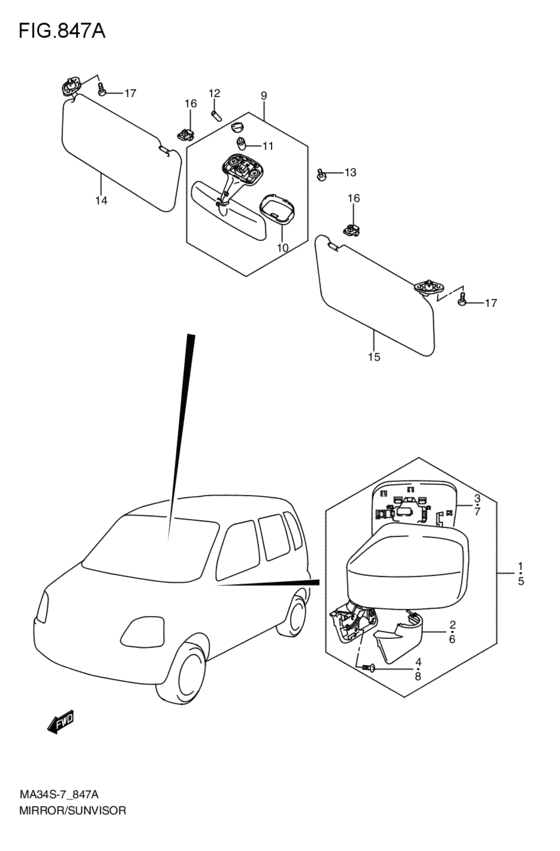

mirror / sun visor (2009-06-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84701-78F01-ZEL
ミラーアッシ,アウトリヤビュー,ライト(ブラウン)
2WD:XX; 2009-06-01~ |
84701-78F01-ZEL |
— | ||
|
1
|
1
84701-78F01-ZJP
ミラーアッシ,リヤビュー,ライト(ブルー)
2WD:XX; 2009-06-01~ |
84701-78F01-ZJP |
— | ||
|
1
|
1
84701-78F01-ZJ3 MIRROR ASSY,RR VIEW,R2WD:XX; 2009-06-01~ |
84701-78F01-ZJ3 |
US $242.88 |
||
|
1
|
1
84701-78F01-Z2S MIRROR ASSY,RR VIEW,R2WD:XX; 2009-06-01~ |
84701-78F01-Z2S |
US $242.88 |
||
|
1
|
1
84701-78F01-Z7T MIRROR ASSY,RR VIEW,R2WD:XX; 2009-06-01~ |
84701-78F01-Z7T |
US $242.88 |
||
|
2
|
2
84719-78F00-ZEL カバー,アウトリヤビューミラー,ライト(ブラウン)2009-06-01~ |
84719-78F00-ZEL |
US $18.18 |
||
|
2
|
2
84719-78F00-ZJP
カバー,アウトリヤビューミラー,ライト(ブルー)
2009-06-01~ |
84719-78F00-ZJP |
— | ||
|
2
|
2
84719-78F00-ZJ3 COVER,OUT RR VIEW MIR,R2009-06-01~ |
84719-78F00-ZJ3 |
US $18.18 |
||
|
2
|
2
84719-78F00-Z2S COVER,OUT RR VIEW MIR,R2009-06-01~ |
84719-78F00-Z2S |
US $18.18 |
||
|
2
|
2
84719-78F00-Z7T COVER,OUT RR VIEW MIR,R2009-06-01~ |
84719-78F00-Z7T |
US $18.18 |
||
|
3
|
3
84720-78F50-000 GLASS,RR VIEW MIRROR,R2WD; 2009-06-01~ |
84720-78F50-000 |
US $46.74 |
||
|
4
|
4
02142-0512A-000 SCREWScrew, lower 2009-06-01~ |
02142-0512A-000 |
from US $0.96 |
||
|
5
|
5
84702-78F01-ZEL
ミラーアッシ,アウトリヤビュー,レフト(ブラウン)
2WD:XX; 2009-06-01~ |
84702-78F01-ZEL |
— | ||
|
5
|
5
84702-78F01-ZJP
ミラーアッシ,リヤビュー,レフト(ブルー)
2WD:XX; 2009-06-01~ |
84702-78F01-ZJP |
— | ||
|
5
|
5
84702-78F01-ZJ3 MIRROR ASSY,RR VIEW,L2WD:XX; 2009-06-01~ |
84702-78F01-ZJ3 |
US $242.88 |
||
|
5
|
5
84702-78F01-Z2S MIRROR ASSY,RR VIEW,L2WD:XX; 2009-06-01~ |
84702-78F01-Z2S |
US $242.88 |
||
|
5
|
5
84702-78F01-Z7T MIRROR ASSY,RR VIEW,L2WD:XX; 2009-06-01~ |
84702-78F01-Z7T |
US $242.88 |
||
|
6
|
6
84759-78F00-ZEL
カバー,アウトリヤビューミラー,レフト(ブラウン)
2009-06-01~ |
84759-78F00-ZEL |
— | ||
|
6
|
6
84759-78F00-ZJP
カバー,アウトリヤビューミラー,レフト(ブルー)
2009-06-01~ |
84759-78F00-ZJP |
— | ||
|
6
|
6
84759-78F00-ZJ3 COVER,OUT RR VIEW MIR,L2009-06-01~ |
84759-78F00-ZJ3 |
US $18.18 |
||
|
6
|
6
84759-78F00-Z2S COVER,OUT RR VIEW MIR,L2009-06-01~ |
84759-78F00-Z2S |
US $18.18 |
||
|
6
|
6
84759-78F00-Z7T COVER,OUT RR VIEW MIR,L2009-06-01~ |
84759-78F00-Z7T |
US $18.18 |
||
|
7
|
7
84760-78F50-000 GLASS,RR VIEW MIRROR,L2WD; 2009-06-01~ |
84760-78F50-000 |
US $46.74 |
||
|
8
|
8
02142-0512A-000 SCREWScrew, lower 2009-06-01~ |
02142-0512A-000 |
from US $0.96 |
||
|
9
|
9
84703-81A12-6GS
Mirror assy,inside rear view
XX; 2009-06-01~ |
84703-81A12-6GS |
— | ||
| replacement | |||||
|
9
|
9
84703-81A14-6GS MIRROR ASSY,INS RR VIEW(GRAY)XX; 2009-06-01~ |
84703-81A14-6GS |
from US $85.19 |
||
|
10
|
10
36212-81A00-000 LENS,ROOM LAMPXX; 2009-06-01~ |
36212-81A00-000 |
from US $4.03 |
||
|
12
|
12
84782-76G00-000 SUPPORT,INSIDE MIRROR2009-06-01~ |
84782-76G00-000 |
US $3.31 |
||
|
13
|
13
02142-0616A-000 SCREW2009-06-01~ |
02142-0616A-000 |
from US $0.76 |
||
|
14
|
14
84801-78F41-6GS SUNVISOR ASSY,R2009-06-01~ |
84801-78F41-6GS |
US $58.88 |
||
|
15
|
15
84802-78F13-6GS
サンバイザアッシ,レフト(グレー)
2009-06-01~ |
84802-78F13-6GS |
— | ||
|
16
|
16
84851-65D00-6GS HOLDER,SUNVISOR2009-06-01~ |
84851-65D00-6GS |
from US $2.56 |
||
|
17
|
17
09139-05061-000 SCREW(5X16)2009-06-01~ |
09139-05061-000 |
US $0.80 |
||
