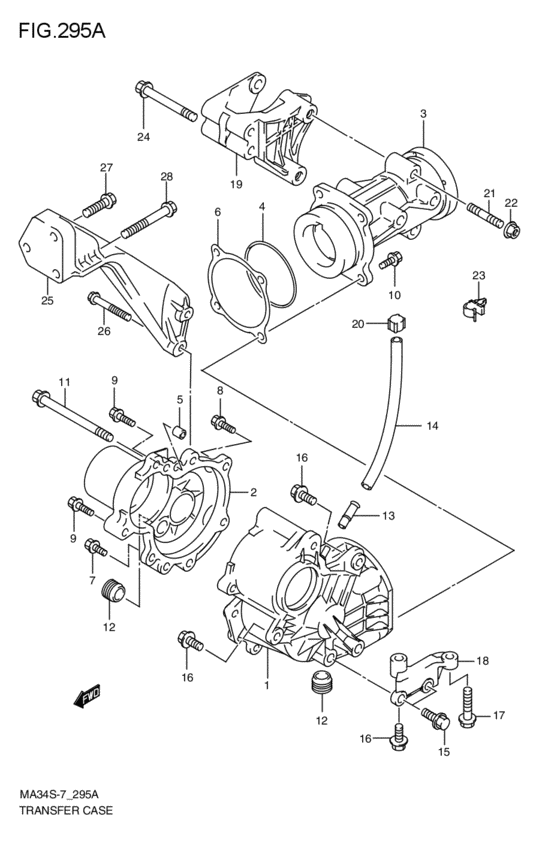

transfer case (2009-06-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29511-70H02-000
Case,transfer left
2009-06-01~ |
29511-70H02-000 |
— | ||
| replacement | |||||
|
1
|
1
29510-70811-000 CASE SET,TRANSFER LEFT2009-06-01~ |
29510-70811-000 |
US $540.80 |
||
|
2
|
2
29521-70H01-000 CASE,TRANSFER,R2009-06-01~ |
29521-70H01-000 |
US $189.52 |
||
|
3
|
3
29271-70H00-000 RETAINER,T/F OUTPUT2009-06-01~ |
29271-70H00-000 |
US $167.44 |
||
|
4
|
4
09280-76008-000 O RING(D:3.1,ID:74)O ring, rr final housing 2009-06-01~ |
09280-76008-000 |
from US $5.15 |
||
|
5
|
5
04211-09169-000 PIN2009-06-01~ |
04211-09169-000 |
from US $0.68 |
||
|
6
|
6
29261-75F90-030 SHIM,T/F RETAINER T:0.302009-06-01~ |
29261-75F90-030 |
US $13.62 |
||
|
6
|
6
29261-75F90-200 SHIM,T/F RETAINER T:2.002009-06-01~ |
29261-75F90-200 |
US $16.45 |
||
|
6
|
6
29261-75F90-203 SHIM,T/F RETAINER T:2.032009-06-01~ |
29261-75F90-203 |
US $16.45 |
||
|
6
|
6
29261-75F90-206 SHIM,T/F RETAINER T:2.062009-06-01~ |
29261-75F90-206 |
US $16.45 |
||
|
6
|
6
29261-75F90-209 SHIM,T/F RETAINER T:2.092009-06-01~ |
29261-75F90-209 |
US $16.45 |
||
|
6
|
6
29261-75F90-212 SHIM,T/F RETAINER T:2.122009-06-01~ |
29261-75F90-212 |
US $16.45 |
||
|
6
|
6
29261-75F90-215 SHIM,T/F RETAINER T:2.152009-06-01~ |
29261-75F90-215 |
US $16.45 |
||
|
6
|
6
29261-75F90-218 SHIM,T/F RETAINER T:2.182009-06-01~ |
29261-75F90-218 |
US $21.60 |
||
|
6
|
6
29261-75F90-221 SHIM,T/F RETAINER T:2.212009-06-01~ |
29261-75F90-221 |
US $16.45 |
||
|
6
|
6
29261-75F90-224 SHIM,T/F RETAINER T:2.242009-06-01~ |
29261-75F90-224 |
US $16.45 |
||
|
6
|
6
29261-75F90-227 SHIM,T/F RETAINER T:2.272009-06-01~ |
29261-75F90-227 |
US $16.45 |
||
|
7
|
7
01550-0830A-000 BoltBolt, mount oil seal cover 2009-06-01~ |
01550-0830A-000 |
from US $1.06 |
||
|
8
|
8
01550-0830A-000 BoltBolt, mount oil seal cover 2009-06-01~ |
01550-0830A-000 |
from US $1.06 |
||
|
9
|
9
01550-0860A-000 Bolt2009-06-01~ |
01550-0860A-000 |
from US $5.68 |
||
|
10
|
10
01550-1035A-000 BoltBolt, fr fork upper 2009-06-01~ |
01550-1035A-000 |
from US $1.62 |
||
|
11
|
11
29561-70H00-000 Bolt2009-06-01~ |
29561-70H00-000 |
US $4.75 |
||
|
12
|
12
09246-16010-000 PLUG2009-06-01~ |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
12
|
12
09246-16021-000 Plug,t/m Oil Drain2009-06-01~ |
09246-16021-000 |
from US $4.37 |
||
|
13
|
13
09364-08004-000 UNION2009-06-01~ |
09364-08004-000 |
US $14.40 |
||
|
14
|
14
29351-85K00-000
ホース,トランスファブリーザ
2009-06-01~ |
29351-85K00-000 |
— | ||
|
15
|
15
01550-1030A-000 Bolt2009-06-01~ |
01550-1030A-000 |
from US $1.12 |
||
|
16
|
16
01550-1035A-000 BoltBolt, fr fork upper 2009-06-01~ |
01550-1035A-000 |
from US $1.62 |
||
|
17
|
17
01550-1045A-000 Bolt2009-06-01~ |
01550-1045A-000 |
US $19.50 |
||
|
18
|
18
29531-80G00-000 STIFFENER,T/F CASE2009-06-01~ |
29531-80G00-000 |
US $56.30 |
||
|
19
|
19
29551-70H10-000
BRACKET,T/F MOUNTING RR
2009-06-01~ |
29551-70H10-000 |
— | ||
|
20
|
20
27991-65D01-000 PLUG,BREATHER2009-06-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
21
|
21
01411-1050A-000 BOLT,STUD2009-06-01~ |
01411-1050A-000 |
from US $1.44 |
||
|
22
|
22
08316-1010A-000 NUTNut, kick starter 2009-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
23
|
23
09403-11314-000 CLAMP2009-06-01~ |
09403-11314-000 |
from US $5.20 |
||
|
24
|
24
29552-80G00-000 BOLT,T/F RR MOUNT BKT NO.22009-06-01~ |
29552-80G00-000 |
US $2.94 |
||
|
25
|
25
24792-70H10-000 STIFFENER,ENG&T/F2009-06-01~ |
24792-70H10-000 |
US $73.97 |
||
|
26
|
26
01550-0850A-000 Bolt2009-06-01~ |
01550-0850A-000 |
from US $5 |
||
|
27
|
27
01550-1040A-000 Bolt2009-06-01~ |
01550-1040A-000 |
from US $1.28 |
||
|
28
|
28
01550-1080A-000 Bolt2009-06-01~ |
01550-1080A-000 |
US $21.70 |
||
