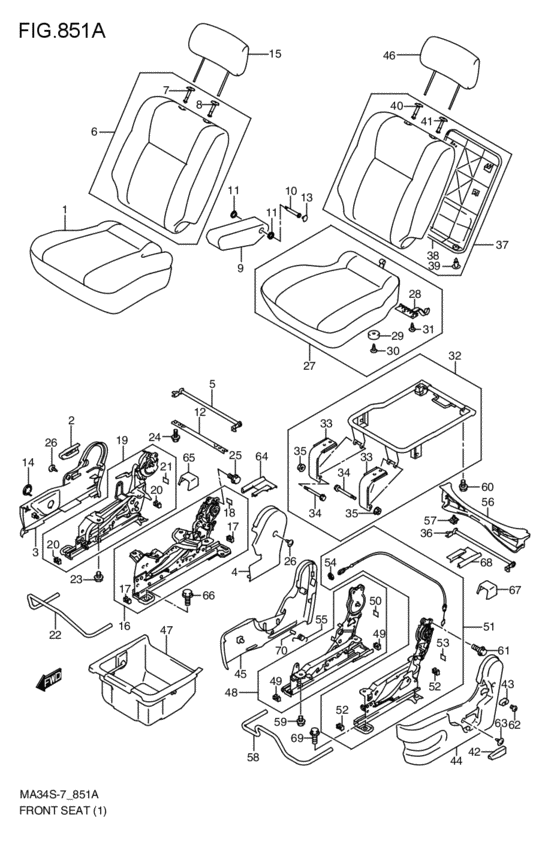

front seat (XXL; 2009-06-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XXL
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-82H40-CBH
CUSHION ASSY,FR,R(BROWN)
XXL:2WD; 2009-06-01~ |
85101-82H40-CBH |
— | ||
|
2
|
2
85211-75H00-R8R
KNOB,RCLNG,R
XXL; 2009-06-01~ |
85211-75H00-R8R |
— | ||
|
3
|
3
85221-76F02-R8R COVER,RECL OUTSIDE,RXXL; 2009-06-01~ |
85221-76F02-R8R |
US $50.42 |
||
|
4
|
4
85241-78F32-R8R
COVER,RECL INSIDE,R
XXL; 2009-06-01~ |
85241-78F32-R8R |
— | ||
|
5
|
5
85250-78F00-000 ROD,FR ADJUSTERXXL; 2009-06-01~ |
85250-78F00-000 |
US $12.99 |
||
|
6
|
6
85301-82HD1-CBH
BACK ASSY,FR
XXL; 2009-06-01~ |
85301-82HD1-CBH |
— | ||
| replacements | |||||
|
6
|
6
85301-82HD2-CBH
BACK ASSY,FR
XXL; 2009-06-01~ |
85301-82HD2-CBH |
— | ||
|
6
|
6
85301-82HD3-CBH Back Assy,frXXL; 2009-06-01~ |
85301-82HD3-CBH |
US $475.20 |
||
|
7
|
7
85341-65K10-P4Z
GUIDE,HEADRESTRAINT
XXL; 2009-06-01~ |
85341-65K10-P4Z |
— | ||
| replacement | |||||
|
7
|
7
85341-65K11-P4Z GUIDE,HEADRESTRAINTXXL; 2009-06-01~ |
85341-65K11-P4Z |
US $5.48 |
||
|
8
|
8
85840-65K10-P4Z
GUIDE,HEADRESTRAINT
XXL; 2009-06-01~ |
85840-65K10-P4Z |
— | ||
| replacement | |||||
|
8
|
8
85840-65K11-P4Z GUIDE COMP,HEADRESTRAINTXXL; 2009-06-01~ |
85840-65K11-P4Z |
US $6 |
||
|
9
|
9
85501-82HK0-T6L
アームレストアッシ,フロント,ライト(ブラウン)
XXL; 2009-06-01~ |
85501-82HK0-T6L |
— | ||
| replacement | |||||
|
9
|
9
85501-65KD1-T6L
ARMREST ASSY,FR,R
XXL; 2009-06-01~ |
85501-65KD1-T6L |
— | ||
|
10
|
10
85541-58J01-000 BOLT,ARMREST HINGEXXL; 2009-06-01~ |
85541-58J01-000 |
US $7.21 |
||
|
11
|
11
85544-58J00-000 BUSH,ARMRESTXXL; 2009-06-01~ |
85544-58J00-000 |
US $2.17 |
||
|
12
|
12
85771-78F00-000
MEMBER,FR SEAT
XXL; 2009-06-01~ |
85771-78F00-000 |
— | ||
|
13
|
13
85542-65KD0-P4Z CAP,ARMRESTXXL; 2009-06-01~ |
85542-65KD0-P4Z |
US $3.09 |
||
|
14
|
14
85223-58J00-R8R
キャップ,リクライニング,アウトサイド(ブラウン)
XXL; 2009-06-01~ |
85223-58J00-R8R |
— | ||
|
15
|
15
86401-82H00-T6L
HEADRESTRAINT ASSY
XXL; 2009-06-01~ |
86401-82H00-T6L |
— | ||
|
16
|
16
86601-82H11-000
アジャスタアッシ,フロントインサイド,ライト
XXL; 2009-06-01~ |
86601-82H11-000 |
— | ||
|
17
|
17
86652-76F00-000 COVER,LOWER RAIL ENDXXL; 2009-06-01~ |
86652-76F00-000 |
US $3.50 |
||
|
18
|
18
86654-76F00-000
COVER,UPPER RAIL END
XXL; 2009-06-01~ |
86654-76F00-000 |
— | ||
|
19
|
19
86603-78F11-000 ADJUSTER ASSY,FR OUTSIDE,RXXL; 2009-06-01~ |
86603-78F11-000 |
US $268.64 |
||
|
20
|
20
86652-76F00-000 COVER,LOWER RAIL ENDXXL; 2009-06-01~ |
86652-76F00-000 |
US $3.50 |
||
|
21
|
21
86654-76F00-000
COVER,UPPER RAIL END
XXL; 2009-06-01~ |
86654-76F00-000 |
— | ||
|
22
|
22
86691-78F00-000 HANDLE,FR ADJ,RXXL; 2009-06-01~ |
86691-78F00-000 |
US $31.28 |
||
|
23
|
23
01550-0812A-000 BoltXXL; 2009-06-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
24
|
24
01550-0816A-000 BoltBolt, rear XXL; 2009-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
25
|
25
01550-1020A-000 BoltBolt, bal sprocket XXL; 2009-06-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
26
|
26
03241-0512A-000 SCREWXXL; 2009-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
27
|
27
85102-82HA0-CBH
CUSHION ASSY,FR,L(BROWN)
XXL; 2009-06-01~ |
85102-82HA0-CBH |
— | ||
| replacements | |||||
|
27
|
27
85102-82HA1-CBH
CUSHION ASSY,FR,L
XXL; 2009-06-01~ |
85102-82HA1-CBH |
— | ||
|
27
|
27
85102-82HA2-CBH Cushion Assy,fr,lXXL; 2009-06-01~ |
85102-82HA2-CBH |
US $360.64 |
||
|
28
|
28
85970-75F00-000 LOCK,FR CUSHXXL; 2009-06-01~ |
85970-75F00-000 |
US $45.60 |
||
|
29
|
29
87196-83000-000 CUSHIONXXL; 2009-06-01~ |
87196-83000-000 |
US $3.09 |
||
|
30
|
30
03241-0512A-000 SCREWXXL; 2009-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
31
|
31
03241-0512A-000 SCREWXXL; 2009-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
32
|
32
85760-78FA0-000
MEMBER ASSY,FR CONV,L
XXL; 2009-06-01~ |
85760-78FA0-000 |
— | ||
|
33
|
33
85762-76FA0-000 MAIL,MBR OUTXXL; 2009-06-01~ |
85762-76FA0-000 |
US $14.83 |
||
|
34
|
34
85763-76FA1-000 BOLT,MEMBER HINGEXXL; 2009-06-01~ |
85763-76FA1-000 |
US $3.42 |
||
|
35
|
35
08316-2006A-000 NUTXXL; 2009-06-01~ |
08316-2006A-000 |
from US $0.76 |
||
|
36
|
36
85250-78FA0-000
ROD,FR ADJUSTER
XXL; 2009-06-01~ |
85250-78FA0-000 |
— | ||
|
37
|
37
85302-82HK1-CBH
Back assy,fr,l
XXL; 2009-06-01~ |
85302-82HK1-CBH |
— | ||
| replacements | |||||
|
37
|
37
85302-82HK2-CBH
BACK ASSY,FR,L
XXL; 2009-06-01~ |
85302-82HK2-CBH |
— | ||
|
37
|
37
85302-82HK3-CBH Back Assy,fr,lXXL; 2009-06-01~ |
85302-82HK3-CBH |
US $489.28 |
||
|
38
|
38
85890-76FA0-R8R BOARD,FR BACKXXL; 2009-06-01~ |
85890-76FA0-R8R |
US $41.22 |
||
|
39
|
39
85891-76FA0-R8R CLIP,BOARDXXL; 2009-06-01~ |
85891-76FA0-R8R |
US $2.94 |
||
|
40
|
40
85341-65K10-P4Z
GUIDE,HEADRESTRAINT
XXL; 2009-06-01~ |
85341-65K10-P4Z |
— | ||
| replacement | |||||
|
40
|
40
85341-65K11-P4Z GUIDE,HEADRESTRAINTXXL; 2009-06-01~ |
85341-65K11-P4Z |
US $5.48 |
||
|
41
|
41
85840-65K10-P4Z
GUIDE,HEADRESTRAINT
XXL; 2009-06-01~ |
85840-65K10-P4Z |
— | ||
| replacement | |||||
|
41
|
41
85840-65K11-P4Z GUIDE COMP,HEADRESTRAINTXXL; 2009-06-01~ |
85840-65K11-P4Z |
US $6 |
||
|
42
|
42
85711-75H00-R8R
KNOB,RECL,L
XXL; 2009-06-01~ |
85711-75H00-R8R |
— | ||
|
43
|
43
85713-76FA0-R8R
KNOB,RECL STOPPER
XXL; 2009-06-01~ |
85713-76FA0-R8R |
— | ||
|
44
|
44
85721-78FA2-R8R
COVER,RECL OUTSIDE,L
XXL; 2009-06-01~ |
85721-78FA2-R8R |
— | ||
|
45
|
45
85741-78FA2-R8R
COVER,RECL INSIDE,L
XXL; 2009-06-01~ |
85741-78FA2-R8R |
— | ||
|
46
|
46
86401-82H00-T6L
HEADRESTRAINT ASSY
XXL; 2009-06-01~ |
86401-82H00-T6L |
— | ||
|
47
|
47
86510-78FA0-000 BOX ASSY,CONVXXL; 2009-06-01~ |
86510-78FA0-000 |
US $75.81 |
||
|
48
|
48
86602-78FA1-000 ADJUSTER ASSY,FR INSIDE,LXXL; 2009-06-01~ |
86602-78FA1-000 |
US $287.04 |
||
|
49
|
49
86652-76F00-000 COVER,LOWER RAIL ENDXXL; 2009-06-01~ |
86652-76F00-000 |
US $3.50 |
||
|
50
|
50
86654-76F00-000
COVER,UPPER RAIL END
XXL; 2009-06-01~ |
86654-76F00-000 |
— | ||
|
51
|
51
86604-78FA0-000 ADJUSTER ASSY,FR OUTSIDE,LXXL; 2009-06-01~ |
86604-78FA0-000 |
US $351.44 |
||
|
52
|
52
86652-76F00-000 COVER,LOWER RAIL ENDXXL; 2009-06-01~ |
86652-76F00-000 |
US $3.50 |
||
|
53
|
53
86654-76F00-000
COVER,UPPER RAIL END
XXL; 2009-06-01~ |
86654-76F00-000 |
— | ||
|
54
|
54
85752-78FA0-000
NUT,ADJUSTER CABLE
XXL; 2009-06-01~ |
85752-78FA0-000 |
— | ||
|
55
|
55
86856-76FA0-000 SPRING,FR BUCKLEXXL; 2009-06-01~ |
86856-76FA0-000 |
US $4.20 |
||
|
56
|
56
85785-78FA0-R8R
COVER,RECL CABLE RR
XXL; 2009-06-01~ |
85785-78FA0-R8R |
— | ||
|
57
|
57
75411-76G00-000 Clamp, CableXXL; 2009-06-01~ |
75411-76G00-000 |
US $2.39 |
||
|
58
|
58
86891-78FA0-000 HANDLE,FR ADJUSTER,LXXL; 2009-06-01~ |
86891-78FA0-000 |
US $34.41 |
||
|
59
|
59
01550-0812A-000 BoltXXL; 2009-06-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
60
|
60
01550-0816A-000 BoltBolt, rear XXL; 2009-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
61
|
61
01550-1020A-000 BoltBolt, bal sprocket XXL; 2009-06-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
62
|
62
03241-0512A-000 SCREWXXL; 2009-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
63
|
63
03241-0512A-000 SCREWXXL; 2009-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
64
|
64
85495-73H10-R8R COVER,RR INSIDE,RXXL; 2009-06-01~ |
85495-73H10-R8R |
US $7.03 |
||
|
65
|
65
85496-76F00-R8R
COVER,RR OUTSIDE
XXL; 2009-06-01~ |
85496-76F00-R8R |
— | ||
|
66
|
66
01551-1025A-000 BoltXXL; 2009-06-01~ |
01551-1025A-000 |
US $1.12 |
||
|
67
|
67
85496-76F00-R8R
COVER,RR OUTSIDE
XXL; 2009-06-01~ |
85496-76F00-R8R |
— | ||
|
68
|
68
85995-73H10-R8R
COVER,RR INSIDE,L
XXL; 2009-06-01~ |
85995-73H10-R8R |
— | ||
|
69
|
69
01551-1025A-000 BoltXXL; 2009-06-01~ |
01551-1025A-000 |
US $1.12 |
||
|
70
|
70
86857-76FA0-000 COLLAR,FR BUCKLE SPRINGXXL; 2009-06-01~ |
86857-76FA0-000 |
US $3.13 |
||
