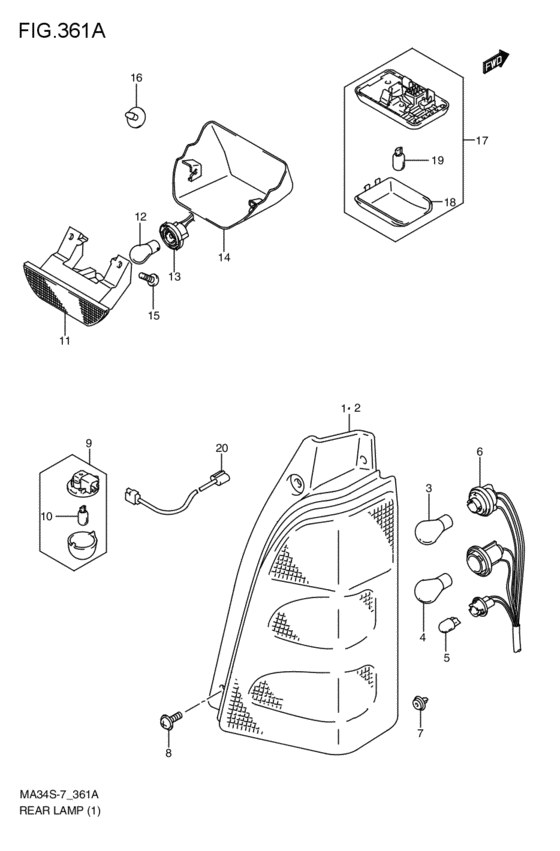

rear lamp / ル - ムランプ (XXL; 2009-06-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XXL
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-78F11-000 LAMP UNIT,RR COMB,RXXL; 2009-06-01~ |
35650-78F11-000 |
US $202.40 |
||
|
2
|
2
35670-78F11-000 LAMP UNIT,RR COMB,LXXL; 2009-06-01~ |
35670-78F11-000 |
US $193.20 |
||
|
3
|
3
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; XXL; 2009-06-01~ |
09471-12083-000 |
from US $4.52 |
||
| replacement | |||||
|
3
|
3
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; XXL; 2009-06-01~ |
09471-12128-000 |
from US $7.20 |
||
|
4
|
4
09471-12186-000 BULB(12V21W,AMBER)アンバ-; XXL; 2009-06-01~ |
09471-12186-000 |
from US $9.23 |
||
|
5
|
5
09471-12146-000 BULB(12V16W)Bulb (12v18w) XXL; 2009-06-01~ |
09471-12146-000 |
from US $3.36 |
||
|
6
|
6
35658-78F01-000
Socket & cord,rr comb
XXL; 2009-06-01~ |
35658-78F01-000 |
— | ||
| replacement | |||||
|
6
|
6
35658-78F04-000 SOCKET&CORD ASSYXXL; 2009-06-01~ |
35658-78F04-000 |
US $47.10 |
||
|
7
|
7
71812-78F00-000 CLIPXXL; 2009-06-01~ |
71812-78F00-000 |
from US $1.67 |
||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust XXL; 2009-06-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
9
|
9
35910-75F12-000 Lamp assy,licenseXXL; 2009-06-01~ |
35910-75F12-000 |
from US $14.33 |
||
|
10
|
10
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; XXL; 2009-06-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; XXL; 2009-06-01~ |
09471-12216-000 |
from US $3.02 |
||
|
11
|
11
35820-82H01-000
ランプユニット,ハイマウントストップ
XXL; 2009-06-01~ |
35820-82H01-000 |
— | ||
| replacement | |||||
|
11
|
11
35820-82H02-000
New Genuine Part
XXL; 2009-06-01~ |
35820-82H02-000 |
— | ||
|
12
|
12
09471-12045-000 BULB(12V21W)XXL; 2009-06-01~ |
09471-12045-000 |
from US $3.11 |
||
|
13
|
13
35818-73H10-000
Socket& cord assy
XXL; 2009-06-01~ |
35818-73H10-000 |
— | ||
| replacement | |||||
|
13
|
13
35818-73H11-000 SOCKET&CORD ASSYXXL; 2009-06-01~ |
35818-73H11-000 |
US $11.52 |
||
|
14
|
14
35821-73H01-P4Z COVER,HIGH MOUNT STOP LAMPグレ-; XXL; 2009-06-01~ |
35821-73H01-P4Z |
US $37.54 |
||
|
15
|
15
02142-0612A-000 SCREWXXL; 2009-06-01~ |
02142-0612A-000 |
from US $0.80 |
||
|
16
|
16
09250-05011-5PK CAP(OD:12)Plug ブラツク; XXL; 2009-06-01~ |
09250-05011-5PK |
from US $2.21 |
||
|
17
|
17
36210-74F02-6GS LAMP ASSY,RR ROOMグレ-; XXL; 2009-06-01~ |
36210-74F02-6GS |
from US $25.25 |
||
|
18
|
18
36212-74F00-000 LENS,ROOM LAMPXXL; 2009-06-01~ |
36212-74F00-000 |
from US $4.05 |
||
|
19
|
19
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; XXL; 2009-06-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
19
|
19
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; XXL; 2009-06-01~ |
09471-12216-000 |
from US $3.02 |
||
|
20
|
20
36843-78F00-000 WIRE,LICENSE LAMPXXL; 2009-06-01~ |
36843-78F00-000 |
US $14.87 |
||
