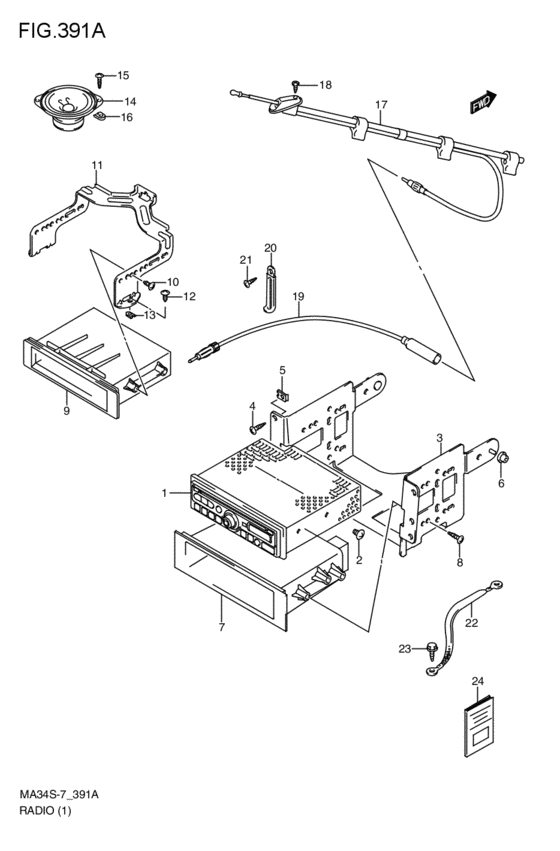

radio (XXL; 2009-06-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XXL
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-72J30-CYY
チューナアッシ(AM/FM,CD)
XXL; 2009-06-01~ |
39101-72J30-CYY |
— | ||
|
2
|
2
02142-0508A-000 SCREWScrew, cap XXL; 2009-06-01~ |
02142-0508A-000 |
from US $0.76 |
||
|
3
|
3
39321-82H00-000 BRACKET,TUNERXXL; 2009-06-01~ |
39321-82H00-000 |
US $15.97 |
||
|
4
|
4
03541-0516A-000 SCREWXXL; 2009-06-01~ |
03541-0516A-000 |
from US $0.76 |
||
|
5
|
5
09148-05045-000 NUTXXL; 2009-06-01~ |
09148-05045-000 |
from US $0.79 |
||
|
6
|
6
34955-54G10-000 BUSH,RADIO BRKTXXL; 2009-06-01~ |
34955-54G10-000 |
from US $0.88 |
||
|
7
|
7
39182-80J00-000
Pocket,tuner
XXL; 2009-06-01~ |
39182-80J00-000 |
— | ||
| replacement | |||||
|
7
|
7
39182-80J10-000 POCKET,TUNERXXL; 2009-06-01~ |
39182-80J10-000 |
US $16.30 |
||
|
8
|
8
03241-0512A-000 SCREWXXL; 2009-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
9
|
9
39182-82H01-000 POCKET,TUNERXXL; 2009-06-01~ |
39182-82H01-000 |
US $21.71 |
||
|
10
|
10
03241-0512A-000 SCREWXXL; 2009-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
39321-82H10-000 BRACKET,INSTPNL UPPER POCKETXXL; 2009-06-01~ |
39321-82H10-000 |
US $12.81 |
||
|
12
|
12
03541-0512A-000 SCREWXXL; 2009-06-01~ |
03541-0512A-000 |
from US $0.70 |
||
|
13
|
13
09148-05045-000 NUTXXL; 2009-06-01~ |
09148-05045-000 |
from US $0.79 |
||
|
14
|
14
39102-80G20-000
Speaker assy
XXL; 2009-06-01~ |
39102-80G20-000 |
— | ||
| replacement | |||||
|
14
|
14
39102-80G30-000 SPEAKER ASSYXXL; 2009-06-01~ |
39102-80G30-000 |
US $41.22 |
||
|
15
|
15
03141-0512A-000 SCREWScrew, belt cooling duct XXL; 2009-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
16
|
16
09148-05045-000 NUTXXL; 2009-06-01~ |
09148-05045-000 |
from US $0.79 |
||
|
17
|
17
39250-76F00-000
ANTENNA ASSY
XXL; 2009-06-01~ |
39250-76F00-000 |
— | ||
|
18
|
18
09129-04003-000 SCREW(4X12)XXL; 2009-06-01~ |
09129-04003-000 |
US $1.60 |
||
|
19
|
19
39271-76F00-000 FEEDER,ANT L 460XXL; 2009-06-01~ |
39271-76F00-000 |
US $22.08 |
||
|
20
|
20
09404-06433-000
CLAMP(L:80)
XXL; 2009-06-01~ |
09404-06433-000 |
— | ||
| replacements | |||||
|
20
|
20
09404-06434-000
CLAMP(L:80 T:1.0)
XXL; 2009-06-01~ |
09404-06434-000 |
— | ||
|
20
|
20
09404-06436-000 Clamp(L:80)XXL; 2009-06-01~ |
09404-06436-000 |
from US $2.13 |
||
|
20
|
20
09404-06036-000 Clamp(L:80)XXL; 2009-06-01~ |
09404-06036-000 |
from US $1.82 |
||
|
21
|
21
03541-0512A-000 SCREWXXL; 2009-06-01~ |
03541-0512A-000 |
from US $0.70 |
||
|
22
|
22
39312-78F01-000 WIRE,NOISE SUPPRXXL; 2009-06-01~ |
39312-78F01-000 |
US $5.67 |
||
|
23
|
23
09115-06005-000 BOLT(6X16)XXL; 2009-06-01~ |
09115-06005-000 |
from US $0.86 |
||
|
24
|
24
39103-72J01-000
マニュアル,オーディオ
XXL; 2009-06-01~ |
39103-72J01-000 |
— | ||
| replacement | |||||
|
24
|
24
39103-72J02-000
New Genuine Part
XXL; 2009-06-01~ |
39103-72J02-000 |
— | ||
