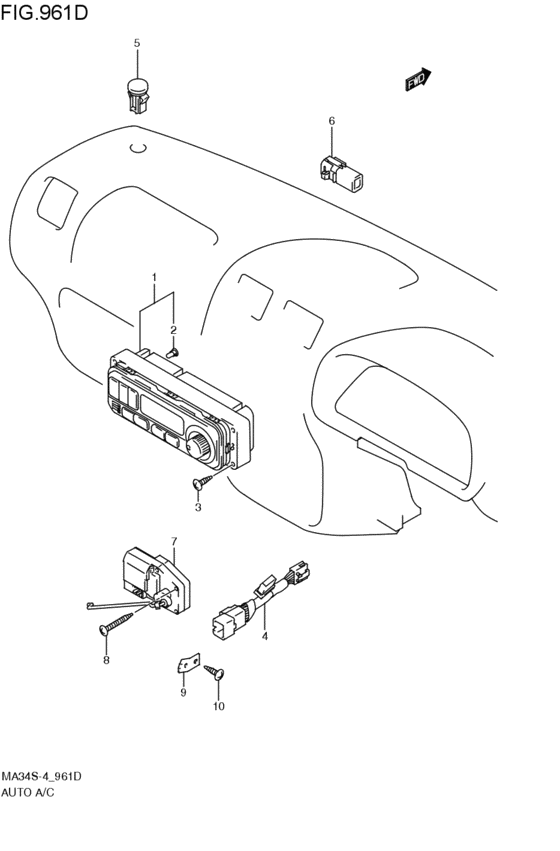

automatic air-conditioner (XXC,XXSL; 2003-12-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2004 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95610-78F92-5PK PANEL UNIT,AUTO A/Cブラック; (XXC,XXSL):XXC; 2004-12-01~ |
95610-78F92-5PK |
US $612.48 |
||
|
2
|
2
95614-83H00-000
バルブ
XXC,XXSL; 2003-12-01~ |
95614-83H00-000 |
— | ||
|
3
|
3
03541-05123-000
Screw
XXC,XXSL; 2003-12-01~ |
03541-05123-000 |
— | ||
| replacement | |||||
|
3
|
3
03541-0512B-000 SCREWXXC,XXSL; 2003-12-01~ |
03541-0512B-000 |
from US $0.76 |
||
|
4
|
4
95633-78F80-000
ハーネス,アクチュエータジョイント
XXC,XXSL; 2003-12-01~ |
95633-78F80-000 |
— | ||
|
5
|
5
95642-64G20-000 SENSOR,SUN LIGHTDENSO; XXC,XXSL; 2003-12-01~ |
95642-64G20-000 |
US $39.62 |
||
|
6
|
6
95643-65D00-000 SENSOR,OUTSIDE TEMPXXC,XXSL; 2003-12-01~ |
95643-65D00-000 |
from US $19.20 |
||
|
7
|
7
95652-78F80-000
アクチュエータ,フレッシュ/サーキュレーション
XXC,XXSL; 2003-12-01~ |
95652-78F80-000 |
— | ||
|
8
|
8
03541-04303-000
Screw,lower
XXC,XXSL; 2003-12-01~ |
03541-04303-000 |
— | ||
| replacement | |||||
|
8
|
8
03541-0430A-000 SCREWXXC,XXSL; 2003-12-01~ |
03541-0430A-000 |
US $10.30 |
||
|
9
|
9
95672-78F80-000
ブラケット,ジョイントハーネス
XXC,XXSL; 2003-12-01~ |
95672-78F80-000 |
— | ||
|
10
|
10
03541-05123-000
Screw
XXC,XXSL; 2003-12-01~ |
03541-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0512B-000 SCREWXXC,XXSL; 2003-12-01~ |
03541-0512B-000 |
from US $0.76 |
||
