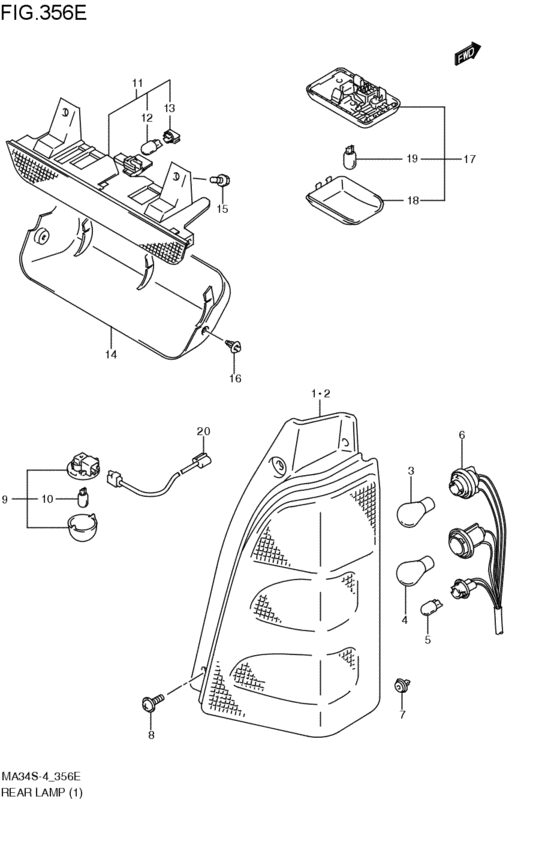

rear lamp (XXL,XXC; 2003-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2004 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-78F10-000
ランプユニット,リヤコンビネーション,ライト
ライト; XXL,XXC; 2003-08-01~ |
35650-78F10-000 |
— | ||
| replacement | |||||
|
1
|
1
35650-78F11-000 LAMP UNIT,RR COMB,Rライト; XXL,XXC; 2003-08-01~ |
35650-78F11-000 |
US $202.40 |
||
|
2
|
2
35670-78F10-000
ランプユニット,リヤコンビネーション,レフト
レフト; XXL,XXC; 2003-08-01~ |
35670-78F10-000 |
— | ||
| replacement | |||||
|
2
|
2
35670-78F11-000 LAMP UNIT,RR COMB,Lレフト; XXL,XXC; 2003-08-01~ |
35670-78F11-000 |
US $193.20 |
||
|
3
|
3
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; XXL,XXC; 2003-08-01~ |
09471-12083-000 |
from US $5 |
||
| replacement | |||||
|
3
|
3
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; XXL,XXC; 2003-08-01~ |
09471-12128-000 |
from US $7.20 |
||
|
4
|
4
09471-12186-000 BULB(12V21W,AMBER)アンバ-; XXL,XXC; 2003-08-01~ |
09471-12186-000 |
from US $10.80 |
||
|
5
|
5
09471-12146-000 BULB(12V16W)Bulb (12v18w) STANLEY; XXL,XXC; 2003-08-01~ |
09471-12146-000 |
from US $3.36 |
||
|
6
|
6
35658-78F00-000
ソケット/コード,リヤコンビネーション
XXL,XXC; 2003-08-01~ |
35658-78F00-000 |
— | ||
| replacement | |||||
|
6
|
6
35658-78F04-000 SOCKET&CORD ASSYXXL,XXC; 2003-08-01~ |
35658-78F04-000 |
US $47.10 |
||
|
7
|
7
71812-78F00-000 CLIPXXL,XXC; 2003-08-01~ |
71812-78F00-000 |
from US $1.67 |
||
|
8
|
8
02162-06163-000
Screw
XXL,XXC; 2003-08-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust XXL,XXC; 2003-08-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
9
|
9
35910-75F11-000
Lamp assy, license
XXL,XXC; 2003-08-01~ |
35910-75F11-000 |
— | ||
| replacement | |||||
|
9
|
9
35910-75F12-000 Lamp assy,licenseXXL,XXC; 2003-08-01~ |
35910-75F12-000 |
from US $14.33 |
||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) XXL,XXC; 2003-08-01~ |
09471-12216-000 |
from US $3.02 |
||
|
11
|
11
35820-76F11-000 LAMP UNIT,HIGH MT STOPXXC; 2004-12-01~ |
35820-76F11-000 |
US $104.51 |
||
|
12
|
12
09471-12146-000 BULB(12V16W)Bulb (12v18w) STANLEY; XXC; 2004-12-01~ |
09471-12146-000 |
from US $3.36 |
||
|
13
|
13
35818-76F10-000 SOCKETXXC; 2004-12-01~ |
35818-76F10-000 |
from US $7.92 |
||
|
14
|
14
35821-76F00-000 COVER,HIGH MOUNT STOP LAMPXXL,XXC; 2003-08-01~ |
35821-76F00-000 |
from US $11.14 |
||
|
15
|
15
02162-06123-000
Bolt (6x12)
XXL,XXC; 2003-08-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt XXL,XXC; 2003-08-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket XXL,XXC; 2003-08-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
16
|
16
09409-06314-5PK CLIP(BLACK)ブラック; XXL,XXC; 2003-08-01~ |
09409-06314-5PK |
from US $1.52 |
||
|
17
|
17
36210-74F02-6GS LAMP ASSY,RR ROOMグレ-; XXL,XXC; 2003-08-01~ |
36210-74F02-6GS |
from US $25.25 |
||
|
18
|
18
36212-74F00-000 LENS,ROOM LAMPXXL,XXC; 2003-08-01~ |
36212-74F00-000 |
from US $4.05 |
||
|
19
|
19
09471-12216-000 BULB(12V5W)Bulb (12v5w) XXL,XXC; 2003-08-01~ |
09471-12216-000 |
from US $3.02 |
||
|
20
|
20
36843-78F00-000 WIRE,LICENSE LAMPXXL,XXC; 2003-08-01~ |
36843-78F00-000 |
US $14.87 |
||
