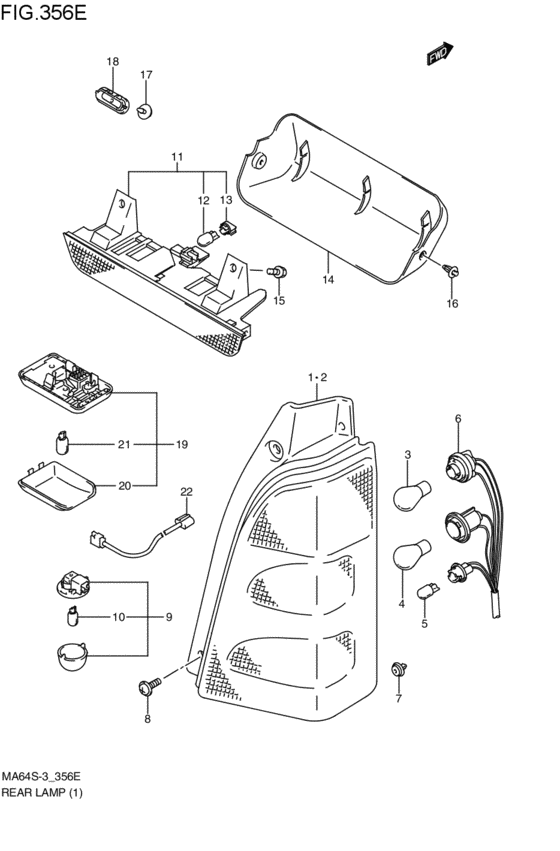

rear lamp (XE,XS,XXL; 2002-06-01~2003-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2002
- Sales region
- Japan
- Engine
- K10A
- drive
- 2WD
- grade
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-78F10-000
ランプユニット,リヤコンビネーション,ライト
XE,XS,XXL; 2002-06-01~2003-09-01 |
35650-78F10-000 |
— | ||
| replacement | |||||
|
1
|
1
35650-78F11-000 LAMP UNIT,RR COMB,RXE,XS,XXL; 2002-06-01~2003-09-01 |
35650-78F11-000 |
US $202.40 |
||
|
2
|
2
35670-78F10-000
ランプユニット,リヤコンビネーション,レフト
XE,XS,XXL; 2002-06-01~2003-09-01 |
35670-78F10-000 |
— | ||
| replacement | |||||
|
2
|
2
35670-78F11-000 LAMP UNIT,RR COMB,LXE,XS,XXL; 2002-06-01~2003-09-01 |
35670-78F11-000 |
US $193.20 |
||
|
3
|
3
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; XE,XS,XXL; 2002-06-01~2003-09-01 |
09471-12083-000 |
from US $4.75 |
||
| replacement | |||||
|
3
|
3
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; XE,XS,XXL; 2002-06-01~2003-09-01 |
09471-12128-000 |
from US $7.20 |
||
|
4
|
4
09471-12186-000 BULB(12V21W,AMBER)アンバー; XE,XS,XXL; 2002-06-01~2003-09-01 |
09471-12186-000 |
from US $5.65 |
||
|
5
|
5
09471-12146-000 BULB(12V16W)Bulb (12v18w) STANLEY; XE,XS,XXL; 2002-06-01~2003-09-01 |
09471-12146-000 |
from US $3.36 |
||
|
6
|
6
35658-78F00-000
ソケット/コード,リヤコンビネーション
XE,XS,XXL; 2002-06-01~2003-09-01 |
35658-78F00-000 |
— | ||
| replacement | |||||
|
6
|
6
35658-78F04-000 SOCKET&CORD ASSYXE,XS,XXL; 2002-06-01~2003-09-01 |
35658-78F04-000 |
US $47.10 |
||
|
7
|
7
71812-78F00-000 CLIPXE,XS,XXL; 2002-06-01~2003-09-01 |
71812-78F00-000 |
from US $1.53 |
||
|
8
|
8
02162-06163-000
Screw
XE,XS,XXL; 2002-06-01~2003-09-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust XE,XS,XXL; 2002-06-01~2003-09-01 |
02162-0616B-000 |
from US $0.80 |
||
|
9
|
9
35910-75F11-000
Lamp assy, license
XE,XS,XXL; 2002-06-01~2003-09-01 |
35910-75F11-000 |
— | ||
| replacement | |||||
|
9
|
9
35910-75F12-000 Lamp assy,licenseXE,XS,XXL; 2002-06-01~2003-09-01 |
35910-75F12-000 |
from US $12.31 |
||
|
10
|
10
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; XE,XS,XXL; 2002-06-01~2003-09-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; XE,XS,XXL; 2002-06-01~2003-09-01 |
09471-12216-000 |
from US $2.66 |
||
|
17
|
17
09409-06311-5ES CAP(BLACK)ブラック; XE; 2002-06-01~2003-09-01 |
09409-06311-5ES |
US $17.30 |
||
|
18
|
18
83917-82010-5PK CAP,BACK DR HOLEブラック; XE; 2002-06-01~2003-09-01 |
83917-82010-5PK |
US $1.60 |
||
|
19
|
19
36210-74F02-6GS LAMP ASSY,RR ROOMグレ-; XE,XS,XXL; 2002-06-01~2003-09-01 |
36210-74F02-6GS |
US $35.20 |
||
|
20
|
20
36212-74F00-000 LENS,ROOM LAMPXE,XS,XXL; 2002-06-01~2003-09-01 |
36212-74F00-000 |
US $4.05 |
||
|
21
|
21
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; XE,XS,XXL; 2002-06-01~2003-09-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
21
|
21
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; XE,XS,XXL; 2002-06-01~2003-09-01 |
09471-12216-000 |
from US $2.66 |
||
|
22
|
22
36843-78F00-000 WIRE,LICENSE LAMPXE,XS,XXL; 2002-06-01~2003-09-01 |
36843-78F00-000 |
US $14.87 |
||
