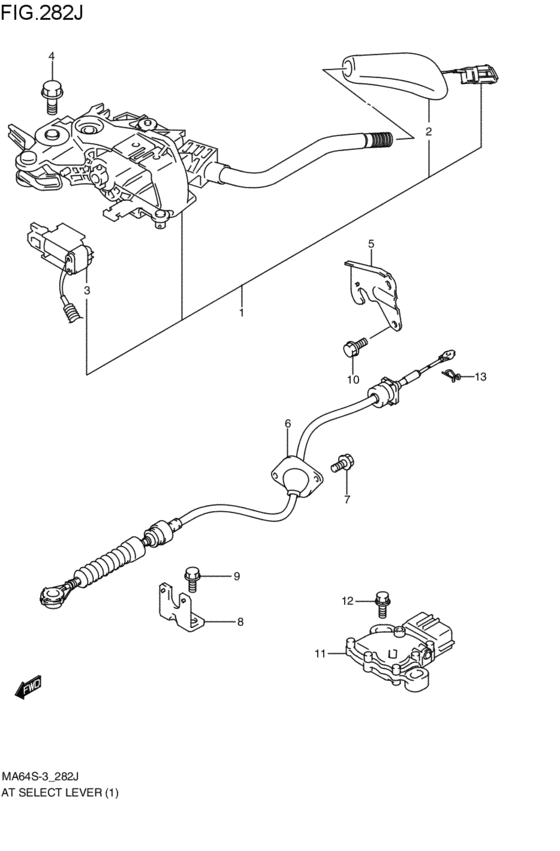

select lever (K10A; 2002-06-01~2003-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2002
- Sales region
- Japan
- Engine
- K10A
- drive
- 2WD
- grade
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-82H11-000
セレクトアッシ,コラム
K10A; 2002-06-01~2003-09-01 |
28100-82H11-000 |
— | ||
| replacement | |||||
|
1
|
1
28100-82H12-000
SELECTOR ASSY,COLUMN
K10A; 2002-06-01~2003-09-01 |
28100-82H12-000 |
— | ||
|
2
|
2
28160-76FK0-000
KNOB ASSY,SEL LEVER
K10A; 2002-06-01~2003-09-01 |
28160-76FK0-000 |
— | ||
| replacement | |||||
|
2
|
2
28160-76FK1-000 KNOB ASSY,SEL LEVERK10A; 2002-06-01~2003-09-01 |
28160-76FK1-000 |
US $23.18 |
||
|
3
|
3
28610-82H10-000
SOLENOID,SHIFT LOCK
K10A; 2002-06-01~2003-09-01 |
28610-82H10-000 |
— | ||
|
4
|
4
01550-08203-000
Bolt
K10A; 2002-06-01~2003-09-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 BoltK10A; 2002-06-01~2003-09-01 |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket K10A; 2002-06-01~2003-09-01 |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
28222-78FJ0-000 BRACKET,SEL CABLE COLUMNK10A; 2002-06-01~2003-09-01 |
28222-78FJ0-000 |
US $8.72 |
||
|
6
|
6
28210-78FM0-000 CABLE ASSY,COLUMNK10A; 2002-06-01~2003-09-01 |
28210-78FM0-000 |
US $100.10 |
||
|
7
|
7
02162-06203-000
Bolt
K10A; 2002-06-01~2003-09-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
7
|
7
02162-0620C-000 SCREWK10A; 2002-06-01~2003-09-01 |
02162-0620C-000 |
from US $0.80 |
||
|
8
|
8
28221-61D11-000 BRACKET,SELECT CABLEK10A; 2002-06-01~2003-09-01 |
28221-61D11-000 |
US $6.59 |
||
|
9
|
9
28223-61D00-000 BOLTBolt, selector cable bracket K10A; 2002-06-01~2003-09-01 |
28223-61D00-000 |
US $3.97 |
||
|
10
|
10
01550-08203-000
Bolt
K10A; 2002-06-01~2003-09-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0820B-000 BoltK10A; 2002-06-01~2003-09-01 |
01550-0820B-000 |
from US $0.91 |
||
|
10
|
10
01550-0820A-000 BOLTBolt, funnel bracket K10A; 2002-06-01~2003-09-01 |
01550-0820A-000 |
from US $0.96 |
||
|
11
|
11
37720-76G31-000 SWITCH ASSY,SHIFTK10A; 2002-06-01~2003-09-01 |
37720-76G31-000 |
US $162.64 |
||
|
12
|
12
25948-76G10-000
Bolt, shift switch
K10A; 2002-06-01~2003-09-01 |
25948-76G10-000 |
— | ||
| replacement | |||||
|
12
|
12
25948-76G11-000 BOLT,SHIFT SWITCHK10A; 2002-06-01~2003-09-01 |
25948-76G11-000 |
US $3.97 |
||
|
13
|
13
09385-08007-000 PIN,SNAPClip K10A; 2002-06-01~2003-09-01 |
09385-08007-000 |
from US $1.09 |
||
