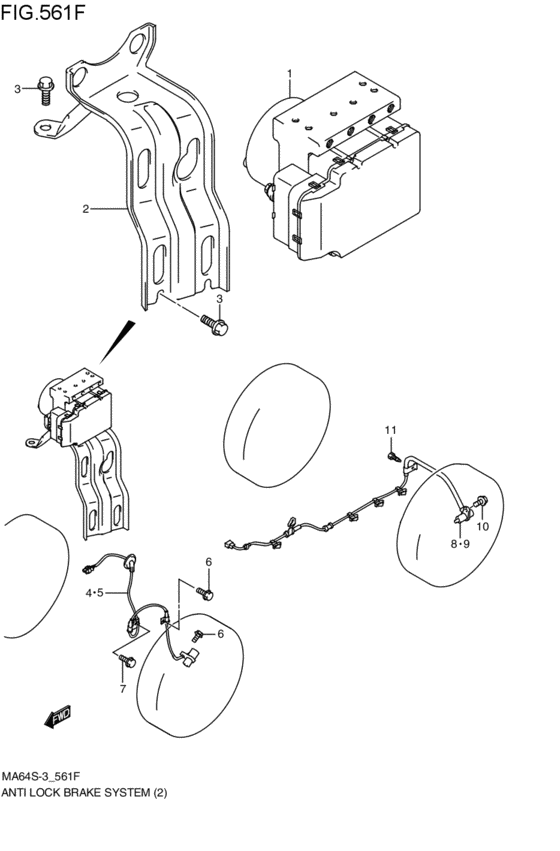

antilock brake system (4WD; 2002-06-01~2003-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2002
- Sales region
- Japan
- Engine
- K10A
- drive
- 4WD
- grade
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-78F11-000
アクチュエータアッシ,ABS
4WD; 2002-06-01~2003-09-01 |
56100-78F11-000 |
— | ||
|
2
|
2
56160-78F00-000
BRACKET,ACTUATOR
4WD; 2002-06-01~2003-09-01 |
56160-78F00-000 |
— | ||
|
3
|
3
01550-08123-000
Bolt
4WD; 2002-06-01~2003-09-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0812B-000 BoltPlug, drain 4WD; 2002-06-01~2003-09-01 |
01550-0812B-000 |
from US $0.96 |
||
|
3
|
3
01550-0812A-000 BOLT4WD; 2002-06-01~2003-09-01 |
01550-0812A-000 |
from US $0.91 |
||
|
4
|
4
56210-83E11-000
SENSOR,FR WHEEL,R
4WD; 2002-06-01~2003-09-01 |
56210-83E11-000 |
— | ||
| replacement | |||||
|
4
|
4
56210-83E12-000 SENSOR,FR WHEEL,R4WD; 2002-06-01~2003-09-01 |
56210-83E12-000 |
US $163.39 |
||
|
5
|
5
56220-83E11-000
SENSOR,FR WHEEL,L
4WD; 2002-06-01~2003-09-01 |
56220-83E11-000 |
— | ||
| replacement | |||||
|
5
|
5
56220-83E12-000 SENSOR,FR WHEEL,L4WD; 2002-06-01~2003-09-01 |
56220-83E12-000 |
US $163.39 |
||
|
6
|
6
02162-06163-000
Screw
4WD; 2002-06-01~2003-09-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0616B-000 SCREWBolt, adjust 4WD; 2002-06-01~2003-09-01 |
02162-0616B-000 |
from US $0.80 |
||
|
7
|
7
02162-06123-000
Bolt (6x12)
4WD; 2002-06-01~2003-09-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt 4WD; 2002-06-01~2003-09-01 |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket 4WD; 2002-06-01~2003-09-01 |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
56310-82H10-000
SENSOR,RR WHEEL,R
4WD; 2002-06-01~2003-09-01 |
56310-82H10-000 |
— | ||
| replacement | |||||
|
8
|
8
56310-82H11-000
SENSOR,RR WHEEL,R
4WD; 2002-06-01~2003-09-01 |
56310-82H11-000 |
— | ||
|
9
|
9
56320-82H10-000
SENSOR,RR WHEEL,L
4WD; 2002-06-01~2003-09-01 |
56320-82H10-000 |
— | ||
| replacement | |||||
|
9
|
9
56320-82H11-000
SENSOR,RR WHEEL,L
4WD; 2002-06-01~2003-09-01 |
56320-82H11-000 |
— | ||
|
10
|
10
01550-06123-000
Bolt
4WD; 2002-06-01~2003-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp 4WD; 2002-06-01~2003-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLT4WD; 2002-06-01~2003-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
09132-05028-000 SCREW(5X8)4WD; 2002-06-01~2003-09-01 |
09132-05028-000 |
US $12.90 |
||
