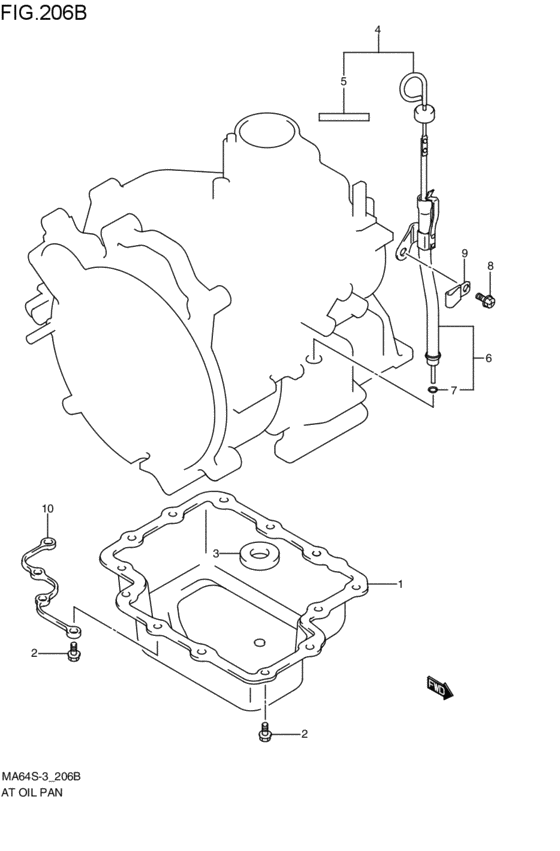

at - oil pan (K10A; 2002-06-01~2003-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2002
- Sales region
- Japan
- Engine
- K10A
- drive
- 2WD
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24761-78G10-000
Pan, oil
K10A; 2002-06-01~2003-09-01 |
24761-78G10-000 |
— | ||
| replacement | |||||
|
1
|
1
24761-78G30-000 PAN,OILK10A; 2002-06-01~2003-09-01 |
24761-78G30-000 |
US $84.80 |
||
|
2
|
2
24362-78G50-000 BoltK10A; 2002-06-01~2003-09-01 |
24362-78G50-000 |
US $10.24 |
||
|
3
|
3
24861-78H10-000 MAGNET,OIL CLEANERK10A; 2002-06-01~2003-09-01 |
24861-78H10-000 |
US $6.40 |
||
|
4
|
4
24830-78G31-000 GAUGE,T/M OIL LEVELK10A; 2002-06-01~2003-09-01 |
24830-78G31-000 |
US $23.55 |
||
|
5
|
5
24839-78G30-000 EMBLEM,ATFK10A; 2002-06-01~2003-09-01 |
24839-78G30-000 |
US $2.72 |
||
|
6
|
6
24770-75F70-000
TUBE ASSY,T/M OIL FILLER
K10A; 2002-06-01~2003-09-01 |
24770-75F70-000 |
— | ||
|
7
|
7
09280-09008-000 O RING(D:2.1,ID:8.8)O ring (d:2.1,id:8.8) K10A; 2002-06-01~2003-09-01 |
09280-09008-000 |
from US $1.49 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
K10A; 2002-06-01~2003-09-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt K10A; 2002-06-01~2003-09-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket K10A; 2002-06-01~2003-09-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
26585-71B70-000 CLIP,HARN,NO.3K10A; 2002-06-01~2003-09-01 |
26585-71B70-000 |
US $3.02 |
||
|
10
|
10
24762-78G10-000
Stiffener, oil pan
K10A; 2002-06-01~2003-09-01 |
24762-78G10-000 |
— | ||
| replacement | |||||
|
10
|
10
24762-78G30-000 STIFFENER,OIL PANK10A; 2002-06-01~2003-09-01 |
24762-78G30-000 |
US $32 |
||
