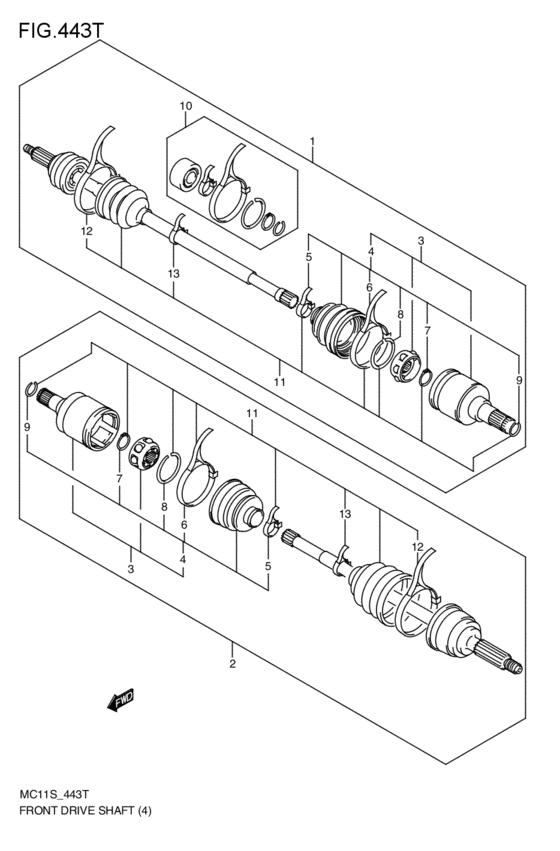

front-drive shaft (2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- F6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FG
- number of the gears
- 3AT
- body
- MC11S
- air bag
- AB
- abs
- ABS
- ゲンテイ
- NORMAL
- vvt
- VVT-N
- selector
- FLOOR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-76G60-000
シャフトアッシ,フロントドライブ,ライト
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44101-76G60-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-73H08-000 SHAFT ASSY,FRONT DRIVE,R2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44101-73H08-000 |
US $447.04 |
||
|
2
|
2
44102-76G60-000
シャフトアッシ,フロントドライブ,レフト
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44102-76G60-000 |
— | ||
| replacements | |||||
|
2
|
2
44102-76G66-000
SHAFT ASSY,FRONT DRIVE,L
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44102-76G66-000 |
— | ||
|
2
|
2
44102-76G67-000
SHAFT ASSY,FR DRIVE,L
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44102-76G67-000 |
— | ||
|
3
|
3
44117-76G00-000
ジョイントアッシ,ディファレンシャルサイド
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44117-76G00-000 |
— | ||
| replacement | |||||
|
3
|
3
44117-76GC0-000
New Genuine Part
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44117-76GC0-000 |
— | ||
|
4
|
4
44119-76G00-000
ブーツセット,ディファレンシャルサイド
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44119-76G00-000 |
— | ||
| replacement | |||||
|
4
|
4
44119-76GA0-000
New Genuine Part
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44119-76GA0-000 |
— | ||
|
5
|
5
44124-60DA0-000
バンド,ブーツ
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44124-60DA0-000 |
— | ||
|
6
|
6
44121-60DA0-000
バンド,ブーツ
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44121-60DA0-000 |
— | ||
|
7
|
7
44111-64B90-000 RING,SNAP2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44111-64B90-000 |
US $2.80 |
||
|
8
|
8
44112-51F40-000 CIRCLIP2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44112-51F40-000 |
US $3.97 |
||
|
9
|
9
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
09381-24001-000 |
from US $1.60 |
||
|
10
|
10
44411-76G20-000
ダンパセット
ライト; 2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44411-76G20-000 |
— | ||
| replacement | |||||
|
10
|
10
44411-76GA0-000
New Genuine Part
ライト; 2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44411-76GA0-000 |
— | ||
|
11
|
11
44118-76G00-000
ブーツセット,ホイールサイド
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44118-76G00-000 |
— | ||
| replacement | |||||
|
11
|
11
44118-76GA0-000
New Genuine Part
2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44118-76GA0-000 |
— | ||
|
12
|
12
44122-86010-000 BAND,BOOTClamp, differential side outer boot 2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44122-86010-000 |
from US $9.02 |
||
|
13
|
13
44124-50A20-000 BAND,BOOTClamp, side inner boot 2WD:AT:(FG,RX,FX); 1998-09-01~1999-09-01 |
44124-50A20-000 |
from US $8.48 |
||
