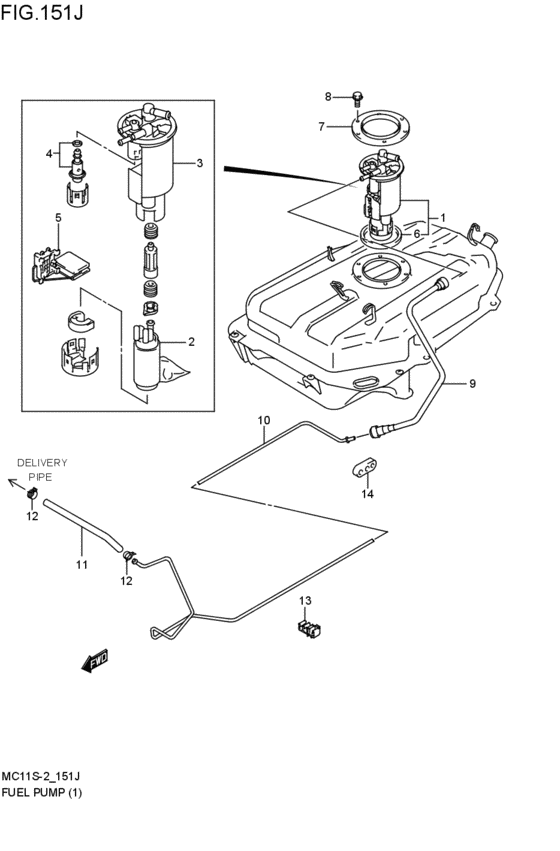

Fuel Pump (4V; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- F6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FMMM
- number of the gears
- 3AT
- body
- C
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-77811-000
ポンプセット,フューエル
4V:F6A; 1999-10-01~ |
15100-77811-000 |
— | ||
| replacements | |||||
|
1
|
1
15100-77814-000 PUMP SET,FUEL4V:F6A; 1999-10-01~ |
15100-77814-000 |
US $675.84 |
||
|
1
|
1
15121-75F01-000 PLATE,FUEL PUMP4V:F6A; 1999-10-01~ |
15121-75F01-000 |
US $9.75 |
||
|
2
|
2
15110-77G00-000
PUMP ASSY,FUEL
4V:F6A; 1999-10-01~2000-07-01 |
15110-77G00-000 |
— | ||
|
2
|
2
15110-77G01-000
ポンプアッシ,フューエル
4V:F6A; 2000-07-01~ |
15110-77G01-000 |
— | ||
| replacement | |||||
|
2
|
2
15110-77G00-000
PUMP ASSY,FUEL
4V:F6A; 2000-07-01~ |
15110-77G00-000 |
— | ||
|
3
|
3
15310-77G00-000
フィルタアッシ,フューエル
4V:F6A; 1999-10-01~2000-07-01 |
15310-77G00-000 |
— | ||
| replacement | |||||
|
3
|
3
15310-77G02-000 FILTER ASSY,FUEL4V:F6A; 1999-10-01~2000-07-01 |
15310-77G02-000 |
US $167.07 |
||
|
3
|
3
15310-77G01-000
フィルタアッシ,フューエル
4V:F6A; 2000-07-01~ |
15310-77G01-000 |
— | ||
| replacement | |||||
|
3
|
3
15310-77G02-000 FILTER ASSY,FUEL4V:F6A; 2000-07-01~ |
15310-77G02-000 |
US $167.07 |
||
|
4
|
4
15610-77G00-000
レギュレータアッシ,フューエル
4V:F6A; 1999-10-01~ |
15610-77G00-000 |
— | ||
|
5
|
5
34810-77G00-000
ゲージアッシ,フューエルレベル
4V:F6A; 1999-10-01~ |
34810-77G00-000 |
— | ||
|
6
|
6
15111-75F00-000
Gasket
4V; 1999-10-01~ |
15111-75F00-000 |
— | ||
| replacement | |||||
|
6
|
6
15111-75F01-000 GASKET,FUEL PUMP4V; 1999-10-01~ |
15111-75F01-000 |
US $9.12 |
||
|
7
|
7
15121-75F00-000
Plate
4V; 1999-10-01~ |
15121-75F00-000 |
— | ||
| replacement | |||||
|
7
|
7
15121-75F01-000 PLATE,FUEL PUMP4V; 1999-10-01~ |
15121-75F01-000 |
US $9.75 |
||
|
8
|
8
02162-06103-000
Bolt
4V; 1999-10-01~ |
02162-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0610A-000 SCREW4V; 1999-10-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15812-76G01-000
Pipe, fuel (pump to pipe)
ポンプツーパイプ; 4V; 1999-10-01~ |
15812-76G01-000 |
— | ||
| replacement | |||||
|
9
|
9
15812-76G03-000 PIPE,FUEL PUMP TO PIPEポンプツーパイプ; 4V; 1999-10-01~ |
15812-76G03-000 |
US $81.32 |
||
|
10
|
10
15811-76G10-000
パイプ,フューエル
4V; 1999-10-01~ |
15811-76G10-000 |
— | ||
| replacement | |||||
|
10
|
10
15811-76G11-000 PIPE,FUEL4V; 1999-10-01~ |
15811-76G11-000 |
US $51.52 |
||
|
11
|
11
15815-76G50-000 HOSE,FUEL PIPE TO ENGパイプツーエンジン; 4V; 1999-10-01~ |
15815-76G50-000 |
US $39.01 |
||
|
12
|
12
09401-11418-000
Clip
4V; 1999-10-01~ |
09401-11418-000 |
— | ||
| replacement | |||||
|
12
|
12
09401-11420-000 CLIP4V; 1999-10-01~ |
09401-11420-000 |
US $1.52 |
||
|
13
|
13
15893-76G00-000 CLAMP,FUEL PIPE4V; 1999-10-01~2000-02-01 |
15893-76G00-000 |
US $2.87 |
||
|
13
|
13
15893-83G00-000
クランプ,フューエルパイプ
4V; 2000-06-01~ |
15893-83G00-000 |
— | ||
| replacement | |||||
|
13
|
13
15893-83G01-000 CLAMP,FUEL PIPE4V; 2000-06-01~ |
15893-83G01-000 |
US $1.52 |
||
|
14
|
14
15438-76G00-000 CUSHION,FUEL PIPE4V; 1999-10-01~ |
15438-76G00-000 |
US $6.69 |
||
