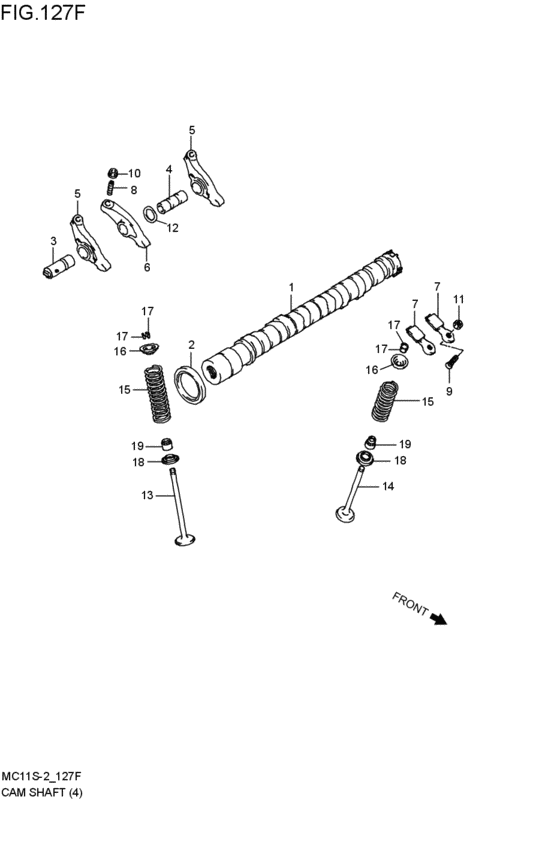

camshaft / valve (F6A:4V; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- F6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- FMME
- number of the gears
- 5MT
- body
- F
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12710-77G00-000
カムシャフト
F6A:4V; 1999-10-01~ |
12710-77G00-000 |
— | ||
|
2
|
2
09283-35047-000 SEAL,OIL(35X47X6)Seal, oil F6A:4V; 1999-10-01~ |
09283-35047-000 |
from US $8.66 |
||
|
3
|
3
12861-71G00-000
SHAFT,ROCKER ARM NO.1
F6A:4V; 1999-10-01~ |
12861-71G00-000 |
— | ||
|
4
|
4
12862-71G00-000 SHAFT,ROCKER ARM NO.2F6A:4V; 1999-10-01~ |
12862-71G00-000 |
US $14.79 |
||
|
5
|
5
12841-77G01-000
アーム,バルブロッカインテーク,N0.1
F6A:4V; 1999-10-01~ |
12841-77G01-000 |
— | ||
|
6
|
6
12844-77G01-000
アーム,バルブロッカインテーク,N0.2
F6A:4V; 1999-10-01~ |
12844-77G01-000 |
— | ||
|
7
|
7
12845-77G00-000 ARM,VALVE ROCKER EXHF6A:4V; 1999-10-01~ |
12845-77G00-000 |
US $34.04 |
||
|
8
|
8
12842-77G00-000
SCREW,VALVE ADJUSTING INTK
F6A:4V; 1999-10-01~ |
12842-77G00-000 |
— | ||
|
9
|
9
12846-61D00-000 SCREW,VALVE ADJUSTINGF6A:4V; 1999-10-01~ |
12846-61D00-000 |
from US $4.03 |
||
|
10
|
10
12843-32400-000 NUT,ADJUSTING SCREWF6A:4V; 1999-10-01~ |
12843-32400-000 |
from US $1.60 |
||
|
11
|
11
12843-66D00-000 NUT,ADJUSTING SCREWF6A:4V; 1999-10-01~ |
12843-66D00-000 |
US $2.02 |
||
|
12
|
12
12891-81410-000 WASHER,WAVEF6A:4V; 1999-10-01~ |
12891-81410-000 |
US $3.02 |
||
|
13
|
13
12911-77G00-000 Valve,intakeF6A:4V; 1999-10-01~ |
12911-77G00-000 |
from US $17.64 |
||
|
14
|
14
12915-77G00-000 Valve,exhaustF6A:4V; 1999-10-01~ |
12915-77G00-000 |
US $81.33 |
||
|
15
|
15
12921-51E00-000
SPRING,VALVE
NHK; F6A:4V; 1999-10-01~ |
12921-51E00-000 |
— | ||
|
16
|
16
12931-77G00-000 RETAINER,VALVE SPRINGF6A:4V; 1999-10-01~ |
12931-77G00-000 |
US $2.56 |
||
|
17
|
17
12932-24400-000 COTTER,VALVEF6A:4V; 1999-10-01~ |
12932-24400-000 |
from US $1.13 |
||
|
18
|
18
12933-51E00-000 SEAT,VALVE SPRINGSeat, valve spring F6A:4V; 1999-10-01~ |
12933-51E00-000 |
from US $1.60 |
||
|
19
|
19
09289-05012-000 SEAL,OIL(5.5X11.5X9.3)F6A:4V; 1999-10-01~ |
09289-05012-000 |
from US $3.94 |
