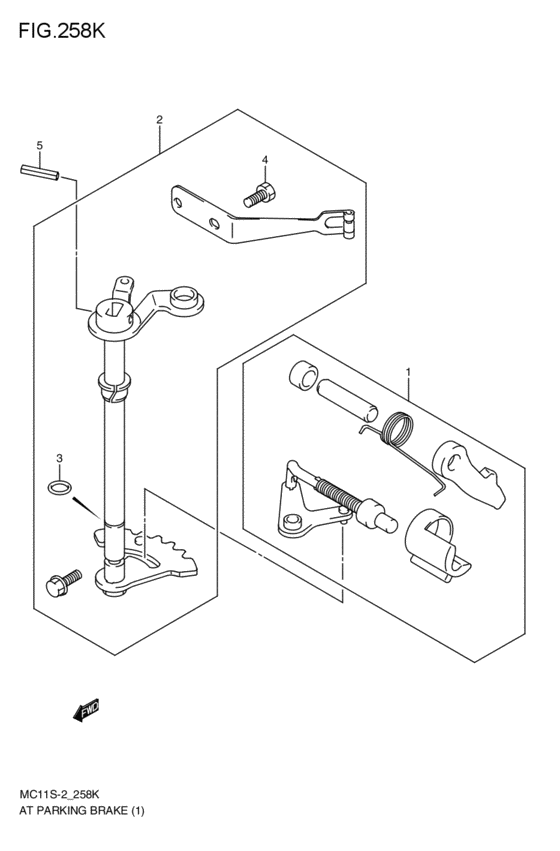

at - parking lock (3AT; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- F6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FMME
- number of the gears
- 3AT
- body
- F
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25910-76GT0-000 PAWL SET,PARKING3AT; 1999-10-01~ |
25910-76GT0-000 |
US $129.54 |
||
|
2
|
2
25940-76GT1-000 SHAFT SET,MANUAL3AT:F; 1999-10-01~ |
25940-76GT1-000 |
US $137.63 |
||
|
3
|
3
09280-09007-000
O ring
3AT; 1999-10-01~ |
09280-09007-000 |
— | ||
| replacement | |||||
|
3
|
3
29280-78G10-000 O-RING,MANUAL SHF SHAFT3AT; 1999-10-01~ |
29280-78G10-000 |
from US $3.02 |
||
|
4
|
4
09128-06008-000 SCREW(6X14)Screw 3AT; 1999-10-01~ |
09128-06008-000 |
from US $2.04 |
||
|
5
|
5
25954-51F00-000 PIN,SELECT RANGE LEVER3AT; 1999-10-01~ |
25954-51F00-000 |
US $1.69 |
||
