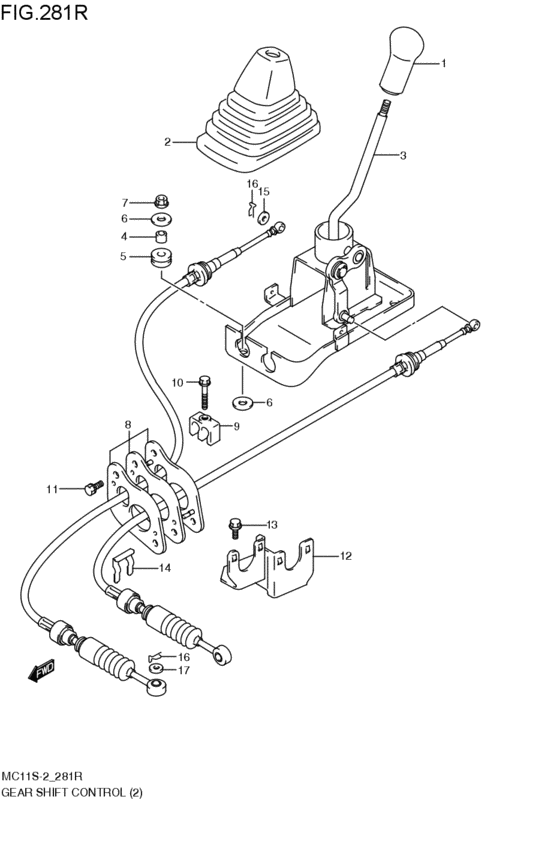

gearlever control (MT:2WD:TURBO; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- F6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- RRFS
- number of the gears
- 5MT
- body
- F
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28113-76F00-5PK
ノブ,コントロールレバー(ブラック)
ブラック; MT:2WD:TURBO; 1999-10-01~ |
28113-76F00-5PK |
— | ||
| replacement | |||||
|
1
|
1
28113-76F01-5PK
New Genuine Part
ブラック; MT:2WD:TURBO; 1999-10-01~ |
28113-76F01-5PK |
— | ||
|
2
|
2
28136-63E00-5PK BOOT,SHIFT LEVERブラック; MT:2WD:TURBO; 1999-10-01~ |
28136-63E00-5PK |
US $25.09 |
||
|
3
|
3
28101-76F40-000
レバーサブアッシ,ギヤシフト
MT:2WD:TURBO; 1999-10-01~ |
28101-76F40-000 |
— | ||
|
4
|
4
28367-76G00-000
スペーサ,ギアコントロールガイドクッション
MT:2WD:TURBO; 1999-10-01~ |
28367-76G00-000 |
— | ||
| replacement | |||||
|
4
|
4
28367-72J20-000 SPACER,GEAR CONT GUIDE CUSHIONMT:2WD:TURBO; 1999-10-01~ |
28367-72J20-000 |
US $2.76 |
||
|
5
|
5
09320-12036-000 CUSHIONCushion, holder MT:2WD:TURBO; 1999-10-01~ |
09320-12036-000 |
from US $1.92 |
||
|
6
|
6
09160-08133-000
Washer
MT:2WD:TURBO; 1999-10-01~ |
09160-08133-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT:2WD:TURBO; 1999-10-01~ |
09160-08151-000 |
from US $0.91 |
||
|
7
|
7
08316-10083-000
Nut
MT:2WD:TURBO; 1999-10-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUTMT:2WD:TURBO; 1999-10-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
28300-78G01-000
ケーブルアッシ,ギヤシフトコントロール
MT:2WD:TURBO; 1999-10-01~2000-04-01 |
28300-78G01-000 |
— | ||
| replacements | |||||
|
8
|
8
09160-08143-000 WASHER(8.5X38X1.6)MT:2WD:TURBO; 1999-10-01~2000-04-01 |
09160-08143-000 |
from US $0.96 |
||
|
8
|
8
25610-78G00-000 LEVER,SHIFT CABLEMT:2WD:TURBO; 1999-10-01~2000-04-01 |
25610-78G00-000 |
US $43.79 |
||
|
8
|
8
28300-78G02-000 CABLE ASSY,GEAR SHIFT CONTROLMT:2WD:TURBO; 1999-10-01~2000-04-01 |
28300-78G02-000 |
US $588.80 |
||
|
8
|
8
28391-78G02-000 BRACKET,T/M CONT CABLEMT:2WD:TURBO; 1999-10-01~2000-04-01 |
28391-78G02-000 |
US $18.95 |
||
|
8
|
8
28300-78G02-000 CABLE ASSY,GEAR SHIFT CONTROLMT:2WD:TURBO; 2000-04-01~ |
28300-78G02-000 |
US $588.80 |
||
|
9
|
9
28385-74B00-000 CLAMP,GR SHF CONT CABLEMT:2WD:TURBO; 1999-10-01~ |
28385-74B00-000 |
US $4.60 |
||
|
10
|
10
01550-06403-000
Bolt (green)
MT:2WD:TURBO; 1999-10-01~ |
01550-06403-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0640B-000 BoltMT:2WD:TURBO; 1999-10-01~ |
01550-0640B-000 |
from US $0.96 |
||
|
10
|
10
01550-0640A-000 BoltBolt (l:40) MT:2WD:TURBO; 1999-10-01~ |
01550-0640A-000 |
from US $3.83 |
||
|
11
|
11
02162-06163-000
Screw
MT:2WD:TURBO; 1999-10-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0616B-000 SCREWBolt, adjust MT:2WD:TURBO; 1999-10-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
12
|
12
28391-78G01-000
ブラケット,トランスミッションコントロールケーブル
MT:2WD:TURBO; 1999-10-01~2000-04-01 |
28391-78G01-000 |
— | ||
| replacement | |||||
|
12
|
12
28391-78G02-000 BRACKET,T/M CONT CABLEMT:2WD:TURBO; 1999-10-01~2000-04-01 |
28391-78G02-000 |
US $18.95 |
||
|
12
|
12
28391-78G02-000 BRACKET,T/M CONT CABLEMT:2WD:TURBO; 2000-04-01~ |
28391-78G02-000 |
US $18.95 |
||
|
13
|
13
01570-08203-000
Bolt
MT:2WD:TURBO; 1999-10-01~ |
01570-08203-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0820B-000 BoltMT:2WD:TURBO; 1999-10-01~ |
01570-0820B-000 |
US $17.30 |
||
|
13
|
13
01570-0820A-000 BOLTMT:2WD:TURBO; 1999-10-01~ |
01570-0820A-000 |
from US $0.96 |
||
|
14
|
14
09383-19001-000 E RINGClip CHKK; MT:2WD:TURBO; 1999-10-01~ |
09383-19001-000 |
from US $2.72 |
||
|
15
|
15
08322-01083-000
WASHER
MT:2WD:TURBO; 1999-10-01~ |
08322-01083-000 |
— | ||
| replacements | |||||
|
15
|
15
08322-0108B-000 WASHERMT:2WD:TURBO; 1999-10-01~ |
08322-0108B-000 |
from US $0.80 |
||
|
15
|
15
08322-0108A-000 WASHERMT:2WD:TURBO; 1999-10-01~ |
08322-0108A-000 |
from US $0.80 |
||
|
16
|
16
09385-08007-000 PIN,SNAPClip MT:2WD:TURBO; 1999-10-01~ |
09385-08007-000 |
from US $1.09 |
||
|
17
|
17
09160-08133-000
Washer
MT:2WD:TURBO; 1999-10-01~2000-04-01 |
09160-08133-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT:2WD:TURBO; 1999-10-01~2000-04-01 |
09160-08151-000 |
from US $0.91 |
||
|
17
|
17
09160-08143-000 WASHER(8.5X38X1.6)MT:2WD:TURBO; 2000-04-01~ |
09160-08143-000 |
from US $0.96 |
||
