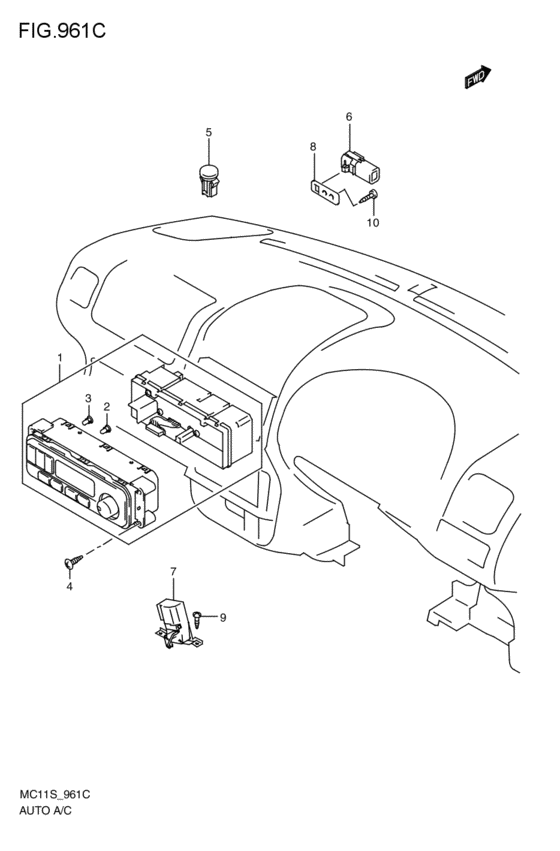

automatic air-conditioner (SA(RRリミテッド); FR:RRLTD; 1999-05-01~1999-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FR
- number of the gears
- 4AT
- body
- MC21S
- air bag
- AB
- abs
- ABS
- ゲンテイ
- RRLTD
- vvt
- VVT-N
- selector
- COLUMN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95610-76G10-000
パネルユニット,オートエアコン
FR:RRLTD; 1999-05-01~1999-09-01 |
95610-76G10-000 |
— | ||
| replacement | |||||
|
1
|
1
95610-76G12-5PK PANEL UNIT,AUTO A/CFR:RRLTD; 1999-05-01~1999-09-01 |
95610-76G12-5PK |
US $707.52 |
||
|
2
|
2
95614-64G20-000 BULB,12V 100MAFR:RRLTD; 1999-05-01~1999-09-01 |
95614-64G20-000 |
US $11.74 |
||
|
3
|
3
95615-64G20-000 BULB,12V 80MAFR:RRLTD; 1999-05-01~1999-09-01 |
95615-64G20-000 |
US $12.14 |
||
|
4
|
4
03541-05123-000
Screw
FR:RRLTD; 1999-05-01~1999-09-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
4
|
4
03541-0512B-000 SCREWFR:RRLTD; 1999-05-01~1999-09-01 |
03541-0512B-000 |
from US $0.76 |
||
|
5
|
5
95642-64G20-000 SENSOR,SUN LIGHTDENSO; FR:RRLTD; 1999-05-01~1999-09-01 |
95642-64G20-000 |
US $39.62 |
||
|
6
|
6
95643-65D00-000 SENSOR,OUTSIDE TEMPFR:RRLTD; 1999-05-01~1999-09-01 |
95643-65D00-000 |
from US $19.20 |
||
|
7
|
7
95652-76G00-000
Actuator
FR:RRLTD; 1999-05-01~1999-09-01 |
95652-76G00-000 |
— | ||
| replacement | |||||
|
7
|
7
95652-76G01-000 ACTUATOR,F/RFR:RRLTD; 1999-05-01~1999-09-01 |
95652-76G01-000 |
US $88.32 |
||
|
8
|
8
95671-76G00-000 BRACKET,OUT DR TEMP SNSRBracket, out door temperature sensor FR:RRLTD; 1999-05-01~1999-09-01 |
95671-76G00-000 |
US $3.02 |
||
|
9
|
9
03541-04123-000
Screw
FR:RRLTD; 1999-05-01~1999-09-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
9
|
9
03541-0412B-000 SCREWScrew, plate FR:RRLTD; 1999-05-01~1999-09-01 |
03541-0412B-000 |
from US $0.80 |
||
|
9
|
9
03541-0412A-000 SCREWScrew, speedometer FR:RRLTD; 1999-05-01~1999-09-01 |
03541-0412A-000 |
from US $0.96 |
||
|
10
|
10
03541-05123-000
Screw
FR:RRLTD; 1999-05-01~1999-09-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0512B-000 SCREWFR:RRLTD; 1999-05-01~1999-09-01 |
03541-0512B-000 |
from US $0.76 |
||
