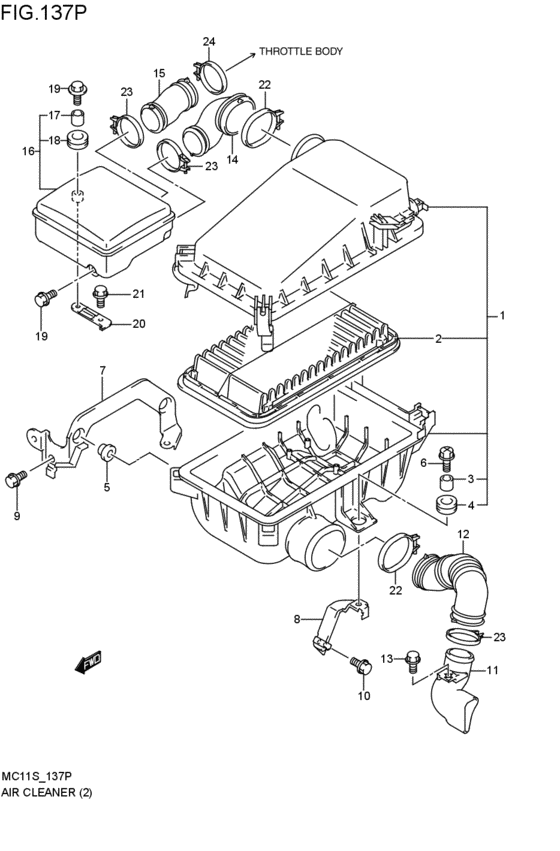

air cleaner (4V:K6A; 1998-09-01~1999-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- CVT
- Number of doors
- 5DR
- grade
- FX
- number of the gears
- VT
- body
- MC21S
- air bag
- AB
- abs
- ABS
- ゲンテイ
- NORMAL
- vvt
- VVT
- selector
- FLOOR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-77G00-000 CLEANER ASSY,AIR4V:K6A; 1998-09-01~1999-09-01 |
13700-77G00-000 |
US $170.02 |
||
|
2
|
2
13780-75F00-000 ELEMENT,AIR CLEANER4V:K6A; 1998-09-01~1999-09-01 |
13780-75F00-000 |
from US $25.09 |
||
|
3
|
3
13772-75F00-000 SPACER4V:K6A; 1998-09-01~1999-09-01 |
13772-75F00-000 |
US $4.75 |
||
|
4
|
4
09320-11017-000 CUSHION4V:K6A; 1998-09-01~1999-09-01 |
09320-11017-000 |
from US $10.24 |
||
|
5
|
5
13723-75F00-000 GROMMET,AIR CLEANER4V:K6A; 1998-09-01~1999-09-01 |
13723-75F00-000 |
US $1.62 |
||
|
6
|
6
09136-06141-000 SCREW(6X25)4V:K6A; 1998-09-01~1999-09-01 |
09136-06141-000 |
from US $0.86 |
||
|
7
|
7
13810-75F00-000
Bracket, air cleaner no.1
4V:K6A; 1998-09-01~1999-09-01 |
13810-75F00-000 |
— | ||
| replacement | |||||
|
7
|
7
13810-75F01-000 BRACKET,AIR CLNR N0.14V:K6A; 1998-09-01~1999-09-01 |
13810-75F01-000 |
US $15.53 |
||
|
8
|
8
13820-75F01-000 BRACKET,AIR CLNR,NO.24V:K6A; 1998-09-01~1999-09-01 |
13820-75F01-000 |
US $21.16 |
||
|
9
|
9
01550-06123-000
Bolt
4V:K6A; 1998-09-01~1999-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BoltBolt, clamp 4V:K6A; 1998-09-01~1999-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 Bolt4V:K6A; 1998-09-01~1999-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
01550-08163-000
Bolt, holder
4V:K6A; 1998-09-01~1999-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0816B-000 Bolt4V:K6A; 1998-09-01~1999-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
10
|
10
01550-0816A-000 BoltBolt, rear 4V:K6A; 1998-09-01~1999-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
11
|
11
13870-76G00-000 PIPE,AIR CLNR INLET4V:K6A; 1998-09-01~1999-09-01 |
13870-76G00-000 |
US $12.95 |
||
|
12
|
12
13871-77G10-000
ホース,エアクリーナ,インレット
4V:K6A; 1998-09-01~1999-09-01 |
13871-77G10-000 |
— | ||
| replacement | |||||
|
12
|
12
13871-77G11-000
ホース,エアクリーナ,インレット
4V:K6A; 1998-09-01~1999-09-01 |
13871-77G11-000 |
— | ||
|
13
|
13
18495-50E00-000 Bolt4V:K6A; 1998-09-01~1999-09-01 |
18495-50E00-000 |
US $2.36 |
||
|
14
|
14
13881-77G10-000
ホース,エアクリーナアウトレット,NO.1
4V:K6A; 1998-09-01~1999-09-01 |
13881-77G10-000 |
— | ||
|
15
|
15
13882-75F00-000 HOSE,AIR CLNR OUTLET NO.24V:K6A; 1998-09-01~1999-09-01 |
13882-75F00-000 |
US $40.80 |
||
|
16
|
16
13760-75F00-000 RESONATOR,AIR INTK4V:K6A; 1998-09-01~1999-09-01 |
13760-75F00-000 |
US $78.75 |
||
|
17
|
17
13765-77G10-000 COLLAR,9.2X11X94V:K6A; 1999-02-01~1999-09-01 |
13765-77G10-000 |
US $2.32 |
||
|
17
|
17
09180-06263-000 SPACER(6.5X9X9)4V:K6A; 1998-09-01~1999-02-01 |
09180-06263-000 |
from US $1.52 |
||
|
18
|
18
09320-09501-000 CUSHION4V:K6A; 1999-02-01~1999-09-01 |
09320-09501-000 |
from US $0.92 |
||
|
18
|
18
13766-77G10-000 CUSHION,10.9X14.4/20X104V:K6A; 1999-02-01~1999-09-01 |
13766-77G10-000 |
US $2.32 |
||
|
19
|
19
09116-06167-000 BOLT(6X20)Bolt (6x20) 4V:K6A; 1998-09-01~1999-09-01 |
09116-06167-000 |
from US $1.37 |
||
|
20
|
20
13765-75F01-000
ブラケット,レゾネータ
4V:K6A; 1998-09-01~1999-09-01 |
13765-75F01-000 |
— | ||
| replacement | |||||
|
20
|
20
13765-75F0V-000 BRACKET,RESONATOR4V:K6A; 1998-09-01~1999-09-01 |
13765-75F0V-000 |
US $3.97 |
||
|
21
|
21
01550-06123-000
Bolt
4V:K6A; 1998-09-01~1999-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0612B-000 BoltBolt, clamp 4V:K6A; 1998-09-01~1999-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
21
|
21
01550-0612A-000 Bolt4V:K6A; 1998-09-01~1999-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
22
|
22
13875-75F00-000 CLAMP,AIR CLEANER HOSEClamp (clnr) 4V:K6A; 1998-09-01~1999-09-01 |
13875-75F00-000 |
from US $2.77 |
||
|
23
|
23
09402-50208-000 CLAMP4V:K6A; 1998-09-01~1999-07-01 |
09402-50208-000 |
from US $5.17 |
||
|
23
|
23
09402-50901-000 CLAMP4V:K6A; 1999-07-01~1999-09-01 |
09402-50901-000 |
US $36.40 |
||
|
24
|
24
09402-52208-000 CLAMP4V:K6A; 1998-09-01~1999-09-01 |
09402-52208-000 |
from US $2.08 |
||
