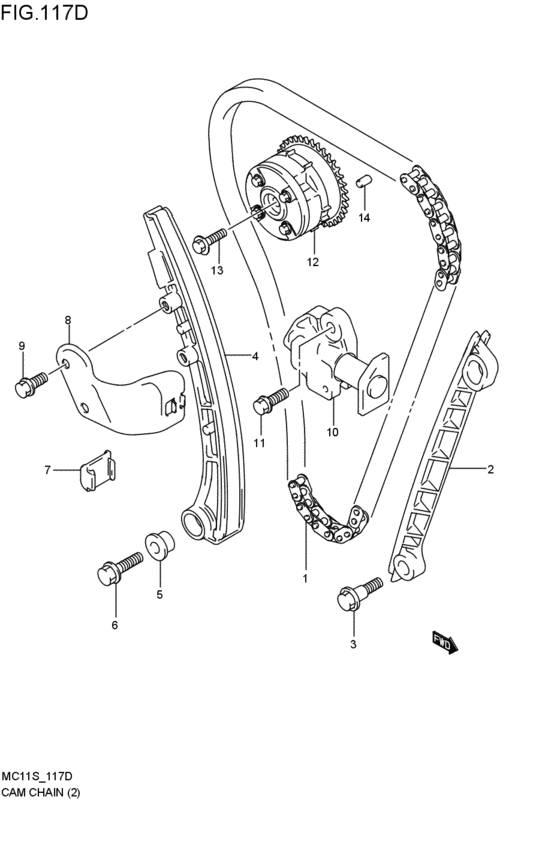

cam chain (VVTシヨウ; K6A:VVT; 1998-09-01~1999-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- CVT
- Number of doors
- 5DR
- grade
- FX
- number of the gears
- VT
- body
- MC21S
- air bag
- AB
- abs
- ABS
- ゲンテイ
- NORMAL
- vvt
- VVT
- selector
- FLOOR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12761-73G00-000
Chain, timing
K6A:VVT; 1998-09-01~1999-09-01 |
12761-73G00-000 |
— | ||
| replacement | |||||
|
1
|
1
12761-73G01-000 CHAIN,TIMINGK6A:VVT; 1998-09-01~1999-09-01 |
12761-73G01-000 |
from US $76.76 |
||
|
2
|
2
12771-73G00-000 GUIDE,TIMING CHAIN NO.1K6A:VVT; 1998-09-01~1999-09-01 |
12771-73G00-000 |
from US $26.60 |
||
|
3
|
3
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide K6A:VVT; 1998-09-01~1999-09-01 |
12776-85FA0-000 |
from US $3.04 |
||
|
4
|
4
12811-73G01-000
Tensioner, chain
K6A:VVT; 1998-09-01~1999-09-01 |
12811-73G01-000 |
— | ||
| replacements | |||||
|
4
|
4
12811-58J00-000 Tensioner, Timing ChainK6A:VVT; 1998-09-01~1999-09-01 |
12811-58J00-000 |
from US $81.83 |
||
|
4
|
4
12821-58J10-000 LINK,TENSIONERK6A:VVT; 1998-09-01~1999-09-01 |
12821-58J10-000 |
from US $7.92 |
||
|
5
|
5
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner K6A:VVT; 1998-09-01~1999-09-01 |
12812-73G10-000 |
from US $4.48 |
||
|
6
|
6
01550-08253-000
Bolt, rear
K6A:VVT; 1998-09-01~1999-09-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0825B-000 BoltK6A:VVT; 1998-09-01~1999-09-01 |
01550-0825B-000 |
from US $1.06 |
||
|
6
|
6
01550-0825A-000 BoltK6A:VVT; 1998-09-01~1999-09-01 |
01550-0825A-000 |
from US $0.47 |
||
|
7
|
7
12813-73G00-000 PAD,TIMING CHAIN TENSIONERPad, timing chain tensioner K6A:VVT; 1998-09-01~1999-09-01 |
12813-73G00-000 |
from US $2.72 |
||
|
8
|
8
12821-78G00-000 LINK,TIMING CHAIN TENSIONERK6A:VVT; 1998-09-01~1999-09-01 |
12821-78G00-000 |
US $33.60 |
||
|
9
|
9
01550-06123-000
Bolt
K6A:VVT; 1998-09-01~1999-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BoltBolt, clamp K6A:VVT; 1998-09-01~1999-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 BoltK6A:VVT; 1998-09-01~1999-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
12831-78G00-000
アジャスタアッシ,テンショナ
K6A:VVT; 1998-09-01~1999-09-01 |
12831-78G00-000 |
— | ||
| replacements | |||||
|
10
|
10
12831-58J00-000 ADJUSTER ASSY,TENSIONERK6A:VVT; 1998-09-01~1999-09-01 |
12831-58J00-000 |
from US $123.01 |
||
|
10
|
10
12832-58J00-000 GASKET,TENSIONER ADJUSTERK6A:VVT; 1998-09-01~1999-09-01 |
12832-58J00-000 |
from US $3.26 |
||
|
11
|
11
01550-06203-000
Bolt
K6A:VVT; 1998-09-01~1999-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0620B-000 BoltBolt, inspection cap K6A:VVT; 1998-09-01~1999-09-01 |
01550-0620B-000 |
from US $0.76 |
||
|
12
|
12
12740-78G80-000
スプロケットアッシ,カムタイミング
K6A:VVT:CVT; 1998-09-01~1999-09-01 |
12740-78G80-000 |
— | ||
|
13
|
13
11238-76G00-000 BOLT,10X35K6A:VVT; 1998-09-01~1999-09-01 |
11238-76G00-000 |
from US $1.95 |
||
|
14
|
14
09206-05001-000 PIN(3.4X5X10)K6A:VVT; 1999-06-01~1999-09-01 |
09206-05001-000 |
from US $1.28 |
||
|
14
|
14
04221-05109-000 PINK6A:VVT; 1998-09-01~1999-06-01 |
04221-05109-000 |
from US $0.38 |
||
