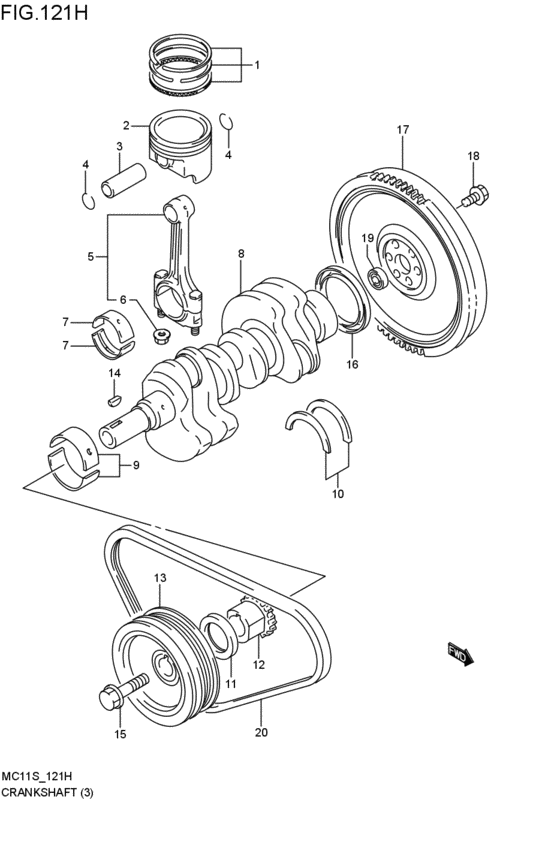

crankshaft (K6A:4V; 1998-09-01~1999-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- CVT
- Number of doors
- 5DR
- grade
- FX
- number of the gears
- VT
- body
- MC21S
- air bag
- AB
- abs
- ABS
- ゲンテイ
- NORMAL
- vvt
- VVT
- selector
- FLOOR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12140-73G01-000 RING SET,PISTON STDK6A:4V; 1998-09-01~1999-09-01 |
12140-73G01-000 |
from US $51.62 |
||
|
2
|
2
12111-78G80-0A0
ピストン,STD,マーク 1
マ-ク1; K6A:4V:VVT; 1998-09-01~1999-09-01 |
12111-78G80-0A0 |
— | ||
| replacement | |||||
|
2
|
2
12111-78G81-0A0
ピストン,STD,マーク 1
マ-ク1; K6A:4V:VVT; 1998-09-01~1999-09-01 |
12111-78G81-0A0 |
— | ||
|
2
|
2
12111-78G80-0B0
ピストン,STD,マーク 2
マ-ク2; K6A:4V:VVT; 1998-09-01~1999-09-01 |
12111-78G80-0B0 |
— | ||
| replacement | |||||
|
2
|
2
12111-78G81-0B0
ピストン,STD,マーク 1
マ-ク2; K6A:4V:VVT; 1998-09-01~1999-09-01 |
12111-78G81-0B0 |
— | ||
|
3
|
3
12151-54A50-000 PIN,PISTONK6A:4V; 1998-09-01~1999-09-01 |
12151-54A50-000 |
from US $7.92 |
||
|
4
|
4
09381-17005-000 CIRCLIPK6A:4V; 1999-03-01~1999-09-01 |
09381-17005-000 |
from US $1.12 |
||
|
4
|
4
09381-18005-000 CIRCLIPK6A:4V; 1998-09-01~1999-03-01 |
09381-18005-000 |
from US $1.12 |
||
|
5
|
5
12160-73G00-000
CONNROD ASSY
K6A:4V; 1998-09-01~1999-09-01 |
12160-73G00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-73G01-000 CONNROD ASSYK6A:4V; 1998-09-01~1999-09-01 |
12160-73G01-000 |
from US $117.20 |
||
|
6
|
6
09159-08033-000 NUTK6A:4V; 1998-09-01~1999-09-01 |
09159-08033-000 |
from US $0.97 |
||
|
7
|
7
12181-81051-0A0 BEARING,CONNROD STDK6A:4V; 1998-09-01~1999-09-01 |
12181-81051-0A0 |
from US $8.01 |
||
|
8
|
8
12221-73G70-000 CRANKSHAFTK6A:4V; 1998-09-01~1999-09-01 |
12221-73G70-000 |
US $1,362.20 |
||
|
9
|
9
12300-82830-0A0
ベアリングセット,カラー:グリーン
カラー:グリーン; K6A:4V; 1998-09-01~1999-06-01 |
12300-82830-0A0 |
— | ||
|
9
|
9
12300-82830-0B0
ベアリングセット,カラー:ブラック
カラー:ブラック; K6A:4V; 1998-09-01~1999-06-01 |
12300-82830-0B0 |
— | ||
|
9
|
9
12300-82830-0C0
ベアリングセット,カラー:ナシ
カラー:ナシ; K6A:4V; 1998-09-01~1999-06-01 |
12300-82830-0C0 |
— | ||
|
9
|
9
12300-82830-0D0
ベアリングセット,カラー:イエロー
カラー:イエロ; K6A:4V; 1998-09-01~1999-06-01 |
12300-82830-0D0 |
— | ||
|
9
|
9
12300-82830-0E0
ベアリングセット,カラー:ブルー
カラー:ブルー; K6A:4V; 1998-09-01~1999-06-01 |
12300-82830-0E0 |
— | ||
|
9
|
9
12300-75820-0A0 BEARING SET,CRANKSHAFT STDカラー:グリーン; K6A:4V; 1999-05-01~1999-09-01 |
12300-75820-0A0 |
US $24.84 |
||
|
9
|
9
12300-75820-0B0
BEARING SET,CRANKSHAFT STD
カラー:ブラック; K6A:4V; 1999-05-01~1999-09-01 |
12300-75820-0B0 |
— | ||
|
9
|
9
12300-75820-0C0 BEARING SET,CRANKSHAFT STDカラー:ナシ; K6A:4V; 1999-05-01~1999-09-01 |
12300-75820-0C0 |
US $29.81 |
||
|
9
|
9
12300-75820-0D0
BEARING SET,CRANKSHAFT STD
カラー:イエロ; K6A:4V; 1999-05-01~1999-09-01 |
12300-75820-0D0 |
— | ||
|
9
|
9
12300-75820-0E0
ベアリングセット,カラー:ブルー
K6A:4V; 1999-05-01~1999-09-01 |
12300-75820-0E0 |
— | ||
|
10
|
10
12300-82820-000
Bearing set, crank thrust (STD)
K6A:4V; 1998-09-01~1999-09-01 |
12300-82820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-000 BEARING SET,CRANK THRUST (STD)K6A:4V; 1998-09-01~1999-09-01 |
12300-60840-000 |
from US $10.10 |
||
|
10
|
10
12300-82820-012
Bearing set, crank thrust (OS:0.125)
K6A:4V; 1998-09-01~1999-09-01 |
12300-82820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)K6A:4V; 1998-09-01~1999-09-01 |
12300-60840-012 |
from US $12.24 |
||
|
11
|
11
09283-35047-000 SEAL,OIL(35X47X6)Seal, oil K6A:4V; 1998-09-01~1999-09-01 |
09283-35047-000 |
from US $8.66 |
||
|
12
|
12
12631-73G60-000
Sprocket, crank timing
K6A:4V; 1998-09-01~1999-09-01 |
12631-73G60-000 |
— | ||
| replacement | |||||
|
12
|
12
12631-58J00-000 Sprocket, Crankshaft TimingK6A:4V; 1998-09-01~1999-09-01 |
12631-58J00-000 |
from US $31.32 |
||
|
13
|
13
12611-73G60-000 PULLEY,CRANKSHAFTK6A:4V; 1998-09-01~1999-09-01 |
12611-73G60-000 |
US $296 |
||
|
14
|
14
09420-04008-000 KEYK6A:4V; 1998-09-01~1999-09-01 |
09420-04008-000 |
from US $1.76 |
||
|
15
|
15
12619-73G00-000
Bolt
K6A:4V; 1998-09-01~1999-09-01 |
12619-73G00-000 |
— | ||
| replacement | |||||
|
15
|
15
12619-69G10-000 BOLT,CRANK PULLEYK6A:4V; 1998-09-01~1999-09-01 |
12619-69G10-000 |
from US $9.60 |
||
|
16
|
16
09283-79001-000
Seal, oil (78x99x8)
K6A:4V; 1998-09-01~1999-09-01 |
09283-79001-000 |
— | ||
| replacement | |||||
|
16
|
16
09283-79002-000 SEAL,OIL(79X99X8)K6A:4V; 1998-09-01~1999-09-01 |
09283-79002-000 |
from US $43.81 |
||
|
20
|
20
49181-56B10-000 BELT,4PK810K6A:4V; 1998-09-01~1999-09-01 |
49181-56B10-000 |
from US $29.21 |
||
