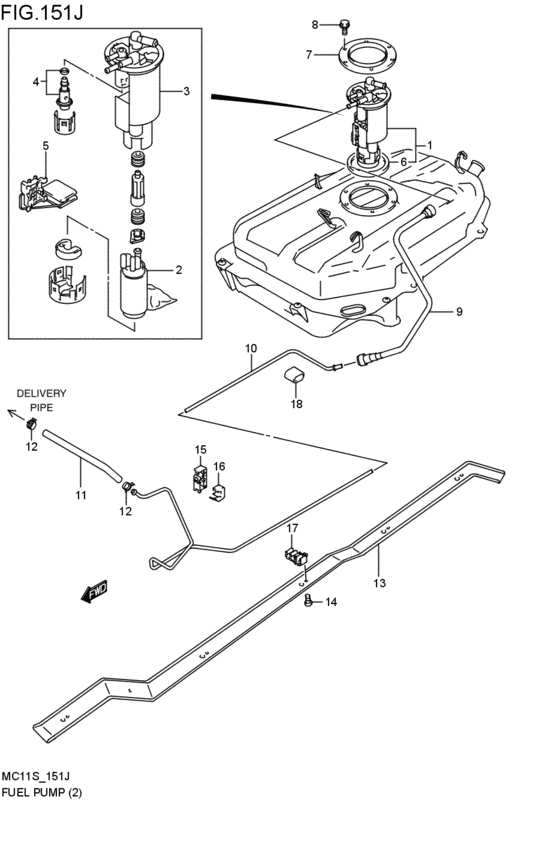

Fuel Pump (4V:K6A; 1998-09-01~1999-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- CVT
- Number of doors
- 5DR
- grade
- FX
- number of the gears
- VT
- body
- MC21S
- air bag
- AB
- abs
- ABS
- ゲンテイ
- NORMAL
- vvt
- VVT
- selector
- FLOOR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-78820-000
ポンプセット,フューエル
4V:K6A; 1998-09-01~1999-09-01 |
15100-78820-000 |
— | ||
| replacements | |||||
|
1
|
1
15100-78825-000
ポンプセット,フューエル
4V:K6A; 1998-09-01~1999-09-01 |
15100-78825-000 |
— | ||
|
1
|
1
15121-75F01-000 PLATE,FUEL PUMP4V:K6A; 1998-09-01~1999-09-01 |
15121-75F01-000 |
from US $6.17 |
||
|
2
|
2
15110-78G00-000
ポンプアッシ,フューエル
4V:K6A; 1998-09-01~1999-09-01 |
15110-78G00-000 |
— | ||
| replacement | |||||
|
2
|
2
15110-73H11-000
ポンプアッシ,フューエル
4V:K6A; 1998-09-01~1999-09-01 |
15110-73H11-000 |
— | ||
|
3
|
3
15310-78G00-000
フィルタアッシ,フューエル
4V:K6A; 1998-09-01~1999-09-01 |
15310-78G00-000 |
— | ||
| replacements | |||||
|
3
|
3
15310-78G02-000 FILTER ASSY,FUEL4V:K6A; 1998-09-01~1999-09-01 |
15310-78G02-000 |
US $176.27 |
||
|
3
|
3
15610-78G01-000 REGULATOR ASSY,FUEL4V:K6A; 1998-09-01~1999-09-01 |
15610-78G01-000 |
US $214.40 |
||
|
4
|
4
15610-78G00-000
REGULATOR ASSY,FUEL
4V:K6A; 1998-09-01~1999-09-01 |
15610-78G00-000 |
— | ||
|
5
|
5
34810-78G00-000
ゲージアッシ,フューエルレベル
4V:K6A; 1998-09-01~1999-09-01 |
34810-78G00-000 |
— | ||
|
6
|
6
15111-75F00-000
Gasket
4V:K6A; 1998-09-01~1999-09-01 |
15111-75F00-000 |
— | ||
| replacement | |||||
|
6
|
6
15111-75F01-000 GASKET,FUEL PUMP4V:K6A; 1998-09-01~1999-09-01 |
15111-75F01-000 |
from US $8.84 |
||
|
7
|
7
15121-75F00-000
Plate
4V:K6A; 1998-09-01~1999-09-01 |
15121-75F00-000 |
— | ||
| replacement | |||||
|
7
|
7
15121-75F01-000 PLATE,FUEL PUMP4V:K6A; 1998-09-01~1999-09-01 |
15121-75F01-000 |
from US $6.17 |
||
|
8
|
8
02162-06103-000
Bolt
4V:K6A; 1998-09-01~1999-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0610A-000 SCREW4V:K6A; 1998-09-01~1999-09-01 |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15812-76G00-000
パイプ,フューエル(ポンプツーパイプ)
ポンプツ-パイプ; 4V:K6A; 1998-09-01~1999-08-01 |
15812-76G00-000 |
— | ||
| replacement | |||||
|
9
|
9
15812-76G03-000 PIPE,FUEL PUMP TO PIPEポンプツ-パイプ; 4V:K6A; 1998-09-01~1999-08-01 |
15812-76G03-000 |
US $81.32 |
||
|
9
|
9
15812-76G01-000
Pipe, fuel (pump to pipe)
ポンプツ-パイプ; 4V:K6A; 1999-08-01~1999-09-01 |
15812-76G01-000 |
— | ||
| replacement | |||||
|
9
|
9
15812-76G03-000 PIPE,FUEL PUMP TO PIPEポンプツ-パイプ; 4V:K6A; 1999-08-01~1999-09-01 |
15812-76G03-000 |
US $81.32 |
||
|
10
|
10
15811-76G00-000 PIPE,FUEL4V:K6A; 1998-09-01~1999-09-01 |
15811-76G00-000 |
US $39.74 |
||
|
11
|
11
15815-76G50-000 HOSE,FUEL PIPE TO ENGパイプツ-エンジン; 4V:K6A; 1998-09-01~1999-09-01 |
15815-76G50-000 |
US $39.01 |
||
|
12
|
12
09401-11418-000
Clip
4V:K6A; 1998-09-01~1999-09-01 |
09401-11418-000 |
— | ||
| replacement | |||||
|
12
|
12
09401-11420-000 CLIP4V:K6A; 1998-09-01~1999-09-01 |
09401-11420-000 |
from US $1.26 |
||
|
13
|
13
15871-76G00-000 COVER,FUEL PIPE4V:K6A; 1998-09-01~1999-09-01 |
15871-76G00-000 |
US $25.76 |
||
|
14
|
14
03541-05123-000
Screw
4V:K6A; 1998-09-01~1999-09-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03541-0512B-000 SCREW4V:K6A; 1998-09-01~1999-09-01 |
03541-0512B-000 |
from US $0.76 |
||
|
15
|
15
15882-60B00-000 CLAMP,FUEL PIPING,FR4V:K6A; 1998-09-01~1999-09-01 |
15882-60B00-000 |
US $1.92 |
||
|
16
|
16
15886-60B00-000 RETAINER,FRONT4V:K6A; 1998-09-01~1999-01-01 |
15886-60B00-000 |
US $1.60 |
||
|
16
|
16
15886-76G00-000 RETAINER,FRONT4V:K6A; 1999-01-01~1999-09-01 |
15886-76G00-000 |
US $48.94 |
||
|
17
|
17
15893-75F00-000 CLAMP,FUEL PIPE4V:K6A; 1998-09-01~1999-09-01 |
15893-75F00-000 |
US $2.24 |
||
|
18
|
18
15439-70G10-000 CUSHION,FUEL PIPE4V:K6A; 1998-09-01~1999-09-01 |
15439-70G10-000 |
from US $1.36 |
||
