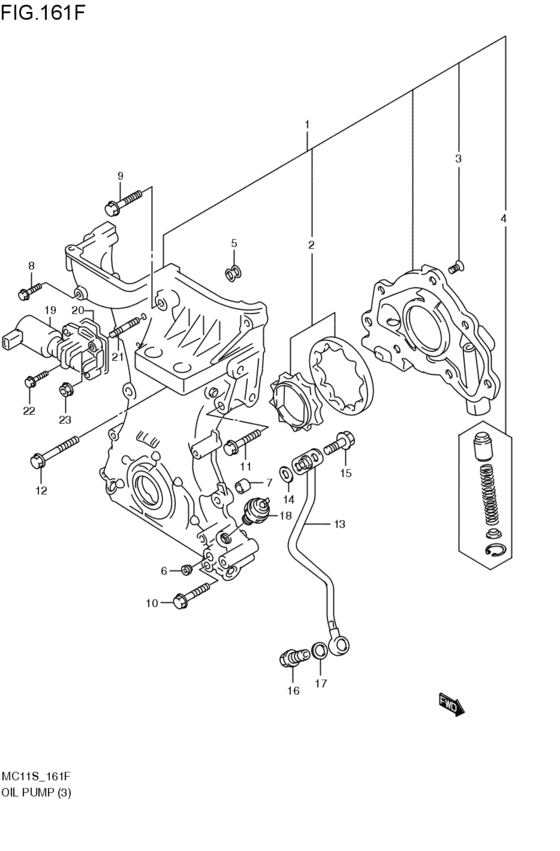

Oil pump (VVTシヨウ; K6A:VVT; 1998-09-01~1999-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- CVT
- Number of doors
- 5DR
- grade
- FX
- number of the gears
- VT
- body
- MC21S
- air bag
- AB
- abs
- ABS
- ゲンテイ
- NORMAL
- vvt
- VVT
- selector
- FLOOR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-78G70-000
ポンプアッシ,オイル
K6A:VVT; 1998-09-01~1999-09-01 |
16100-78G70-000 |
— | ||
| replacements | |||||
|
1
|
1
01550-0650A-000 BoltBolt (6x50) K6A:VVT; 1998-09-01~1999-09-01 |
01550-0650A-000 |
from US $0.96 |
||
|
1
|
1
16100-78G75-000
ポンプアッシ,オイル
K6A:VVT; 1998-09-01~1999-09-01 |
16100-78G75-000 |
— | ||
|
1
|
1
16118-73H00-000 O-RING,OIL PUMP CASEK6A:VVT; 1998-09-01~1999-09-01 |
16118-73H00-000 |
from US $2.36 |
||
|
1
|
1
16140-78G71-000 PIPE,OIL GALLERYK6A:VVT; 1998-09-01~1999-09-01 |
16140-78G71-000 |
US $39.01 |
||
|
2
|
2
16130-78820-000 ROTOR SET,OIL PUMPK6A:VVT; 1998-09-01~1999-09-01 |
16130-78820-000 |
US $76.54 |
||
|
3
|
3
02122-06163-000
Screw
K6A:VVT; 1998-09-01~1999-09-01 |
02122-06163-000 |
— | ||
| replacements | |||||
|
3
|
3
02122-0616B-000 SCREWScrew, intake pipe K6A:VVT; 1998-09-01~1999-09-01 |
02122-0616B-000 |
from US $0.80 |
||
|
3
|
3
02122-0616A-000 SCREWK6A:VVT; 1998-09-01~1999-09-01 |
02122-0616A-000 |
from US $0.76 |
||
|
4
|
4
16150-60A00-000
Valve set, relief
K6A:VVT; 1998-09-01~1999-09-01 |
16150-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
16150-60A20-000 VALVE SET,OIL PUMP RELIEFK6A:VVT; 1998-09-01~1999-09-01 |
16150-60A20-000 |
from US $4.48 |
||
|
5
|
5
16118-78G70-000 O-RING,OIL PUMP CASEK6A:VVT; 1998-09-01~1999-09-01 |
16118-78G70-000 |
from US $2.36 |
||
|
6
|
6
09246-05006-000 PLUG(1/8PT,H:5.5)K6A:VVT; 1998-09-01~1999-09-01 |
09246-05006-000 |
from US $1.76 |
||
|
7
|
7
04211-09109-000 PINKnock pin K6A:VVT; 1998-09-01~1999-09-01 |
04211-09109-000 |
from US $0.86 |
||
|
8
|
8
01550-06303-000
Bolt (6x30)
K6A:VVT; 1998-09-01~1999-09-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0630A-000 BoltK6A:VVT; 1998-09-01~1999-09-01 |
01550-0630A-000 |
from US $1.12 |
||
|
9
|
9
01550-06503-000
Bolt
K6A:VVT; 1998-09-01~1999-09-01 |
01550-06503-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0650B-000 BoltK6A:VVT; 1998-09-01~1999-09-01 |
01550-0650B-000 |
US $15.50 |
||
|
9
|
9
01550-0650A-000 BoltBolt (6x50) K6A:VVT; 1998-09-01~1999-09-01 |
01550-0650A-000 |
from US $0.96 |
||
|
10
|
10
01550-06553-000
Bolt
K6A:VVT; 1998-09-01~1999-09-01 |
01550-06553-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-0655B-000 BoltBolt, hydraulic unit no.2 K6A:VVT; 1998-09-01~1999-09-01 |
01550-0655B-000 |
from US $0.91 |
||
|
11
|
11
01550-08403-000
Bolt
K6A:VVT; 1998-09-01~1999-09-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0840B-000 BoltK6A:VVT; 1998-09-01~1999-09-01 |
01550-0840B-000 |
from US $1.12 |
||
|
11
|
11
01550-0840A-000 BoltK6A:VVT; 1998-09-01~1999-09-01 |
01550-0840A-000 |
from US $1.12 |
||
|
12
|
12
09103-08344-000
Bolt (8x40)
K6A:VVT; 1998-09-01~1999-09-01 |
09103-08344-000 |
— | ||
| replacement | |||||
|
12
|
12
09103-08388-000 BOLT(8X40)Bolt, rr final gr case K6A:VVT; 1998-09-01~1999-09-01 |
09103-08388-000 |
US $16.90 |
||
|
13
|
13
16140-78G70-000
パイプ,オイルギャラリ
K6A:VVT; 1998-09-01~1999-09-01 |
16140-78G70-000 |
— | ||
| replacement | |||||
|
13
|
13
16140-78G71-000 PIPE,OIL GALLERYK6A:VVT; 1998-09-01~1999-09-01 |
16140-78G71-000 |
US $39.01 |
||
|
14
|
14
16147-78G70-000 O-RING,OIL PIPE D:1.9 ID:7.8K6A:VVT; 1998-09-01~1999-09-01 |
16147-78G70-000 |
from US $1.37 |
||
|
15
|
15
01550-06123-000
Bolt
K6A:VVT; 1998-09-01~1999-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BoltBolt, clamp K6A:VVT; 1998-09-01~1999-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BoltK6A:VVT; 1998-09-01~1999-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
09360-12005-000 UNIONBolt,union K6A:VVT; 1998-09-01~1999-09-01 |
09360-12005-000 |
from US $4.14 |
||
|
17
|
17
09168-12017-000 GASKET(12X17X1)Gasket, drain plug K6A:VVT; 1998-09-01~1999-09-01 |
09168-12017-000 |
from US $1.04 |
||
|
18
|
18
37820-82001-000
Switch assy, oil pressure
K6A:VVT; 1998-09-01~1999-09-01 |
37820-82001-000 |
— | ||
| replacement | |||||
|
18
|
18
37820-820P0-000 SWITCH ASSY,OIL PRESSUREK6A:VVT; 1998-09-01~1999-09-01 |
37820-820P0-000 |
from US $12.67 |
||
|
19
|
19
16550-78G80-000
バルブ,オイルコントロール
K6A:VVT; 1998-09-01~1999-09-01 |
16550-78G80-000 |
— | ||
| replacements | |||||
|
19
|
19
16550-83G30-000 VALVE,OIL CONTROLK6A:VVT; 1998-09-01~1999-09-01 |
16550-83G30-000 |
US $158.98 |
||
|
19
|
19
16555-58J32-000 GASKET,OCVK6A:VVT; 1998-09-01~1999-09-01 |
16555-58J32-000 |
from US $16.04 |
||
|
20
|
20
16532-78G70-000
O-RING,OIL CONTROL VALVE
K6A:VVT; 1998-09-01~1999-09-01 |
16532-78G70-000 |
— | ||
|
21
|
21
09108-06118-000
Bolt, stud (l:20)
K6A:VVT; 1998-09-01~1999-09-01 |
09108-06118-000 |
— | ||
| replacement | |||||
|
21
|
21
09108-06134-000 BOLT,STUDK6A:VVT; 1998-09-01~1999-09-01 |
09108-06134-000 |
US $1.68 |
||
|
22
|
22
01550-06203-000
Bolt
K6A:VVT; 1998-09-01~1999-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-0620B-000 BoltBolt, inspection cap K6A:VVT; 1998-09-01~1999-09-01 |
01550-0620B-000 |
from US $0.76 |
||
|
23
|
23
08316-10063-000
Nut
K6A:VVT; 1998-09-01~1999-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1006B-000 NUTK6A:VVT; 1998-09-01~1999-09-01 |
08316-1006B-000 |
from US $0.76 |
||
