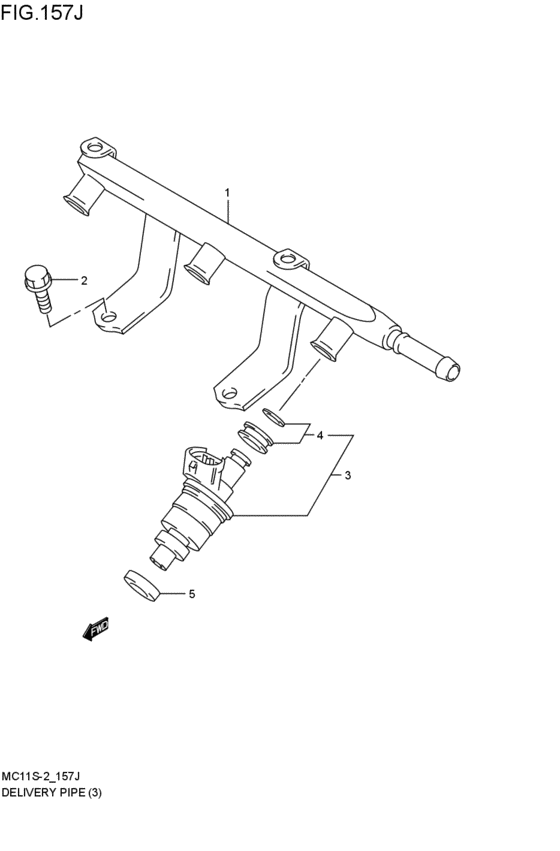

delivery pipe / fuel injector (K6A:4V; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- FXST
- number of the gears
- 5MT
- body
- F
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15730-78G10-000 PIPE,DELIVERYK6A:4V; 1999-10-01~ |
15730-78G10-000 |
US $75.81 |
||
|
2
|
2
01550-06163-000
Bolt
K6A:4V; 1999-10-01~ |
01550-06163-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0616B-000 BoltK6A:4V; 1999-10-01~ |
01550-0616B-000 |
from US $0.76 |
||
|
2
|
2
01550-0616A-000 BoltK6A:4V; 1999-10-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
3
|
3
15710-78G00-000 INJECTOR ASSY,FUELK6A:4V; 1999-10-01~ |
15710-78G00-000 |
US $281.52 |
||
|
4
|
4
15716-65DT0-000 GROMMET SET,FUEL INJECTORK6A:4V; 1999-10-01~ |
15716-65DT0-000 |
from US $8.64 |
||
|
5
|
5
09320-08062-000 CUSHIONK6A:4V; 1999-10-01~ |
09320-08062-000 |
from US $4.64 |
||
