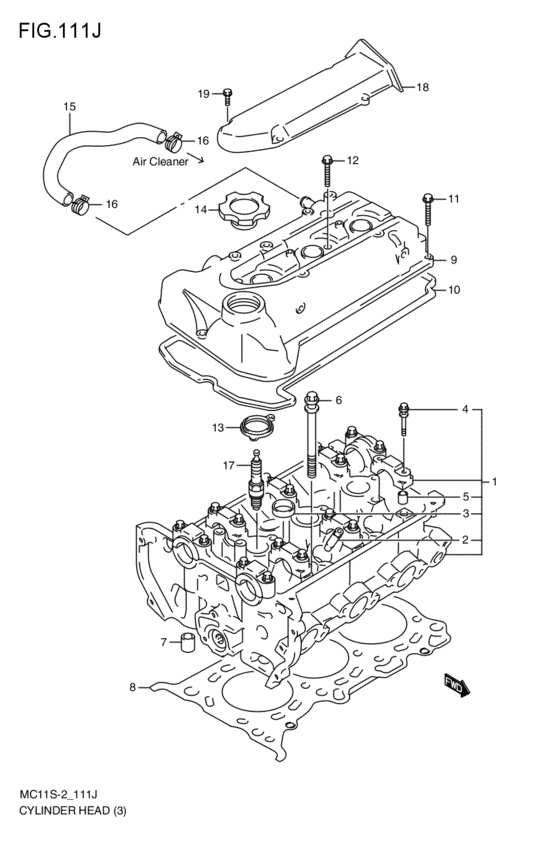

Cylinder head (K6A:TURBO; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- RRST
- number of the gears
- 4AT
- body
- C
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-78G10-000
ヘッドアッシ,シリンダ
K6A:TURBO; 1999-10-01~ |
11100-78G10-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-78G22-000 HEAD ASSY,CYLINDERK6A:TURBO; 1999-10-01~ |
11100-78G22-000 |
US $1,413.84 |
||
|
2
|
2
11115-73G00-001
Guide, valve
K6A:TURBO; 1999-10-01~ |
11115-73G00-001 |
— | ||
| replacement | |||||
|
2
|
2
11115-73G01-001 GUIDE,VALVEK6A:TURBO; 1999-10-01~ |
11115-73G01-001 |
from US $13.38 |
||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil K6A:TURBO; 1999-10-01~ |
09241-20006-000 |
from US $1.60 |
||
|
4
|
4
11128-73G60-000 BOLT,CAMSHAFT HOUSING 6X36K6A:TURBO; 1999-10-01~ |
11128-73G60-000 |
US $1.52 |
||
|
5
|
5
09206-08001-000 PIN(8X11)K6A:TURBO; 1999-10-01~ |
09206-08001-000 |
from US $1.53 |
||
|
6
|
6
11117-73G00-000 BOLT,CYLINDER HEADK6A:TURBO; 1999-10-01~ |
11117-73G00-000 |
from US $4.80 |
||
|
7
|
7
09206-13020-000 PIN(10.4X13X18)K6A:TURBO; 1999-10-01~ |
09206-13020-000 |
from US $1.22 |
||
|
8
|
8
11141-73G00-000
Gasket, cylinder head
K6A:TURBO; 1999-10-01~ |
11141-73G00-000 |
— | ||
| replacement | |||||
|
8
|
8
11141-73G03-000 GASKET,CYL HEADK6A:TURBO; 1999-10-01~ |
11141-73G03-000 |
from US $77.99 |
||
|
9
|
9
11170-78G01-000
Cover, cylinder head
K6A:TURBO; 1999-10-01~2000-07-01 |
11170-78G01-000 |
— | ||
| replacement | |||||
|
9
|
9
11170-78G02-000 Cover,cylinder headK6A:TURBO; 1999-10-01~2000-07-01 |
11170-78G02-000 |
US $283.36 |
||
|
9
|
9
11170-78G02-000 Cover,cylinder headK6A:TURBO; 2000-07-01~ |
11170-78G02-000 |
US $283.36 |
||
|
10
|
10
11189-78G01-000 Gasket, Cylinder Head CoverK6A:TURBO; 1999-10-01~ |
11189-78G01-000 |
from US $21.26 |
||
|
11
|
11
01547-06253-000
Bolt
K6A:TURBO; 1999-10-01~ |
01547-06253-000 |
— | ||
| replacement | |||||
|
11
|
11
01547-0625B-000 BoltK6A:TURBO; 1999-10-01~ |
01547-0625B-000 |
from US $0.91 |
||
|
12
|
12
01547-06553-000
Bolt
K6A:TURBO; 1999-10-01~ |
01547-06553-000 |
— | ||
| replacement | |||||
|
12
|
12
01547-0655B-000 BoltK6A:TURBO; 1999-10-01~ |
01547-0655B-000 |
from US $1.91 |
||
|
13
|
13
11179-73G00-000 GASKET,SPARK PLUG HOLEGasket, spark plug hole K6A:TURBO; 1999-10-01~ |
11179-73G00-000 |
from US $10.94 |
||
|
14
|
14
16920-86502-000
Cap, oil filler
K6A:TURBO; 1999-10-01~ |
16920-86502-000 |
— | ||
| replacements | |||||
|
14
|
14
16920-83G00-000
Cap,oil filler
K6A:TURBO; 1999-10-01~ |
16920-83G00-000 |
— | ||
|
14
|
14
16920-83G01-000 CAP OIL FILLERK6A:TURBO; 1999-10-01~ |
16920-83G01-000 |
US $10.22 |
||
|
15
|
15
11191-75F00-000 HOSE,BREATHERK6A:TURBO; 1999-10-01~ |
11191-75F00-000 |
US $15.16 |
||
|
16
|
16
09401-18404-000 CLIPK6A:TURBO; 1999-10-01~ |
09401-18404-000 |
from US $1.17 |
||
|
17
|
17
09482-00527-000
SPARK PLUG(KR7AI)
NGK; K6A:TURBO; 1999-10-01~ |
09482-00527-000 |
— | ||
|
18
|
18
11180-78G00-000
Cover, cylinder head upper
K6A:TURBO; 1999-10-01~ |
11180-78G00-000 |
— | ||
| replacement | |||||
|
18
|
18
11180-80HA0-000 COVER,CYL HEAD UPPERK6A:TURBO; 1999-10-01~ |
11180-80HA0-000 |
US $36.80 |
||
|
19
|
19
01547-06163-000
Bolt (green)
K6A:TURBO; 1999-10-01~ |
01547-06163-000 |
— | ||
| replacement | |||||
|
19
|
19
01547-0616B-000 BoltK6A:TURBO; 1999-10-01~ |
01547-0616B-000 |
from US $0.76 |
||
