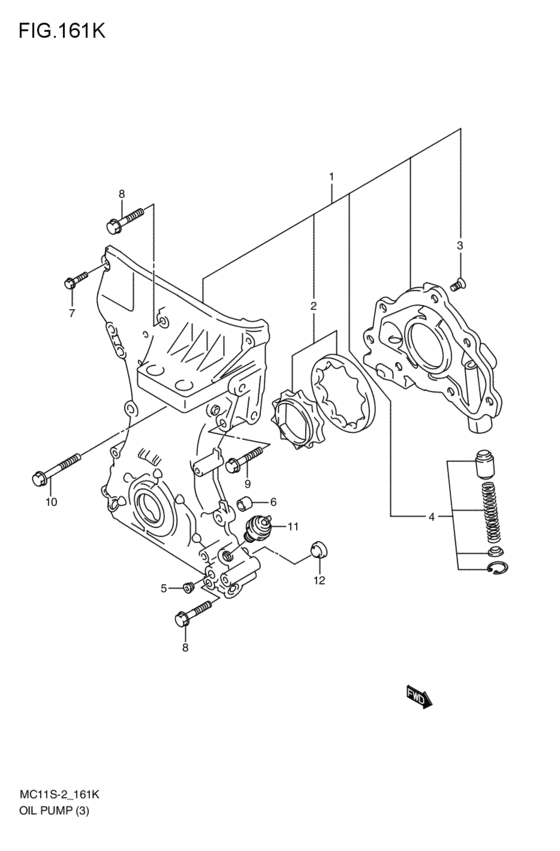

Oil pump (K6A:TURBO; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- RRST
- number of the gears
- 4AT
- body
- C
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-78G01-000
ポンプアッシ,オイル
K6A:TURBO; 1999-10-01~ |
16100-78G01-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-78G03-000 PUMP ASSY,OILK6A:TURBO; 1999-10-01~ |
16100-78G03-000 |
US $509.20 |
||
|
2
|
2
16130-70B01-000 ROTOR SET,OIL PUMPRotor set, oil pump K6A:TURBO; 1999-10-01~ |
16130-70B01-000 |
US $121.60 |
||
|
3
|
3
02122-06163-000
Screw
K6A:TURBO; 1999-10-01~ |
02122-06163-000 |
— | ||
| replacements | |||||
|
3
|
3
02122-0616B-000 SCREWScrew, intake pipe K6A:TURBO; 1999-10-01~ |
02122-0616B-000 |
from US $0.80 |
||
|
3
|
3
02122-0616A-000 SCREWK6A:TURBO; 1999-10-01~ |
02122-0616A-000 |
from US $0.76 |
||
|
4
|
4
16150-60A00-000
Valve set, relief
K6A:TURBO; 1999-10-01~ |
16150-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
16150-60A20-000 VALVE SET,OIL PUMP RELIEFK6A:TURBO; 1999-10-01~ |
16150-60A20-000 |
from US $4.48 |
||
|
5
|
5
09246-05006-000 PLUG(1/8PT,H:5.5)K6A:TURBO; 1999-10-01~ |
09246-05006-000 |
from US $1.76 |
||
|
6
|
6
04211-09109-000 PINKnock pin K6A:TURBO; 1999-10-01~ |
04211-09109-000 |
from US $0.86 |
||
|
7
|
7
01550-06303-000
Bolt (6x30)
K6A:TURBO; 1999-10-01~ |
01550-06303-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0630A-000 BoltK6A:TURBO; 1999-10-01~ |
01550-0630A-000 |
from US $1.12 |
||
|
8
|
8
01550-06503-000
Bolt
K6A:TURBO; 1999-10-01~ |
01550-06503-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0650B-000 BoltK6A:TURBO; 1999-10-01~ |
01550-0650B-000 |
US $15.50 |
||
|
8
|
8
01550-0650A-000 BoltBolt (6x50) K6A:TURBO; 1999-10-01~ |
01550-0650A-000 |
from US $0.96 |
||
|
9
|
9
01550-08403-000
Bolt
K6A:TURBO; 1999-10-01~ |
01550-08403-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0840B-000 BoltK6A:TURBO; 1999-10-01~ |
01550-0840B-000 |
from US $1.12 |
||
|
9
|
9
01550-0840A-000 BoltK6A:TURBO; 1999-10-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
10
|
10
09103-08344-000
Bolt (8x40)
K6A:TURBO; 1999-10-01~ |
09103-08344-000 |
— | ||
| replacement | |||||
|
10
|
10
09103-08388-000 BOLT(8X40)Bolt, rr final gr case K6A:TURBO; 1999-10-01~ |
09103-08388-000 |
US $16.90 |
||
|
11
|
11
37820-82001-000
Switch assy, oil pressure
K6A:TURBO; 1999-10-01~ |
37820-82001-000 |
— | ||
| replacement | |||||
|
11
|
11
37820-820P0-000 SWITCH ASSY,OIL PRESSUREK6A:TURBO; 1999-10-01~ |
37820-820P0-000 |
from US $12.67 |
||
|
12
|
12
16211-83G00-000
カラー,オイルギャラリ
K6A:TURBO; 2000-06-01~ |
16211-83G00-000 |
— | ||
| replacement | |||||
|
12
|
12
16210-73H01-000 FILTER,OIL GALLERYK6A:TURBO; 2000-06-01~ |
16210-73H01-000 |
from US $7.45 |
||
