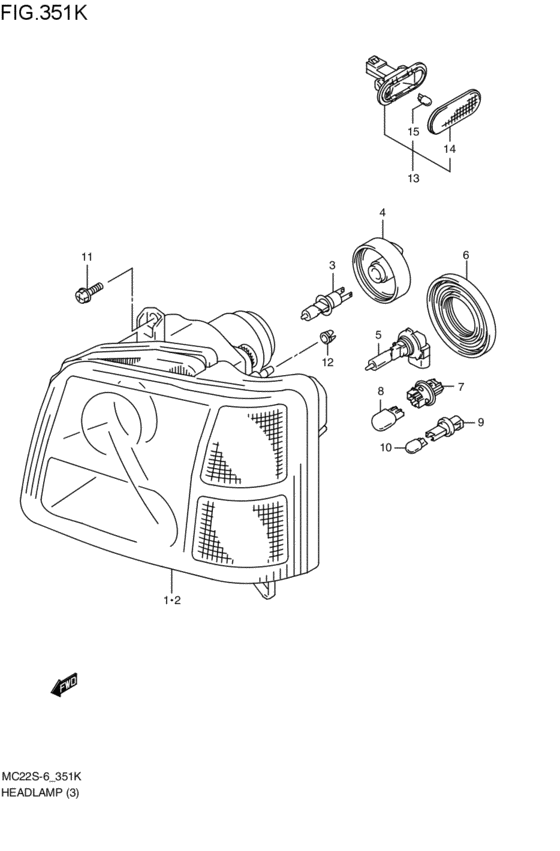

head lamp (FM,FMM,FT; 2003-04-01~2003-08-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- FMM
- abs
- ABS
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-84F22-000
ユニット,ヘッドランプ,ライト
FM,FMM,FT; 2003-04-01~2003-08-01 |
35120-84F22-000 |
— | ||
|
2
|
2
35320-84F22-000
ユニット,ヘッドランプ,レフト
FM,FMM,FT; 2003-04-01~2003-08-01 |
35320-84F22-000 |
— | ||
|
3
|
3
09471-12198-000
バルブ,12V55W H3C
FM,FMM,FT; 2003-04-01~2003-08-01 |
09471-12198-000 |
— | ||
|
4
|
4
35179-76F20-000
カバー,ソケット
FM,FMM,FT; 2003-04-01~2003-08-01 |
35179-76F20-000 |
— | ||
|
5
|
5
09471-12151-000 BULB(12V60W,HB3,#9005)Bulb (12v,60w,hb3,p20d) FM,FMM,FT; 2003-04-01~2003-08-01 |
09471-12151-000 |
from US $26.58 |
||
|
6
|
6
35179-76F10-000 COVER,SOCKETFM,FMM,FT; 2003-04-01~2003-08-01 |
35179-76F10-000 |
from US $5.27 |
||
|
7
|
7
36118-76F10-000 SOCKET,TURN LAMPFM,FMM,FT; 2003-04-01~2003-08-01 |
36118-76F10-000 |
from US $4.91 |
||
|
8
|
8
09471-12191-000 BULB(12V21W)FM,FMM,FT; 2003-04-01~2003-08-01 |
09471-12191-000 |
from US $3.87 |
||
|
9
|
9
35118-76F00-000 SOCKET,POSITION LAMPFM,FMM,FT; 2003-04-01~2003-08-01 |
35118-76F00-000 |
from US $9.28 |
||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) FM,FMM,FT; 2003-04-01~2003-08-01 |
09471-12216-000 |
from US $2.66 |
||
|
11
|
11
09122-76001-000 SCREW(6X16)FM,FMM,FT; 2003-04-01~2003-08-01 |
09122-76001-000 |
US $0.80 |
||
|
12
|
12
35153-60G00-000 GROMMET,LAMPFM,FMM,FT; 2003-04-01~2003-08-01 |
35153-60G00-000 |
from US $1.60 |
||
|
13
|
13
36410-50E01-000 LAMP,SIDE TURN(HSGFM,FMM,FT; 2003-04-01~2003-08-01 |
36410-50E01-000 |
from US $19.22 |
||
|
14
|
14
36412-70B00-000 LENS,SIDE TURN (AMBER)(AMBER) FM,FMM,FT; 2003-04-01~2003-08-01 |
36412-70B00-000 |
from US $4.55 |
||
|
15
|
15
09471-12216-000 BULB(12V5W)Bulb (12v5w) FM,FMM,FT; 2003-04-01~2003-08-01 |
09471-12216-000 |
from US $2.66 |
