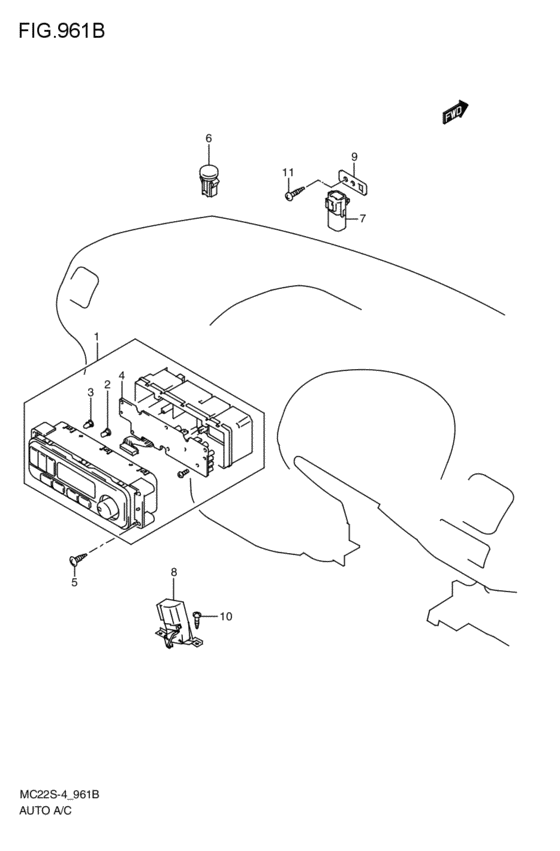

automatic air-conditioner (FRS; 2001-10-01~2002-08-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2001 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- FRS
- abs
- ABS
- side air bag
- NSAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95610-76G10-5PK
パネルユニット,オートエアコン(ブラック)
ブラック; FRS; 2001-10-01~2002-08-01 |
95610-76G10-5PK |
— | ||
| replacement | |||||
|
1
|
1
95610-76G12-5PK PANEL UNIT,AUTO A/Cブラック; FRS; 2001-10-01~2002-08-01 |
95610-76G12-5PK |
US $707.52 |
||
|
2
|
2
95614-64G20-000 BULB,12V 100MAFRS; 2001-10-01~2002-08-01 |
95614-64G20-000 |
US $11.74 |
||
|
3
|
3
95615-64G20-000 BULB,12V 80MAFRS; 2001-10-01~2002-08-01 |
95615-64G20-000 |
US $12.14 |
||
|
4
|
4
95600-76811-000
ボードセット,オートエアコン
FRS; 2001-10-01~2002-08-01 |
95600-76811-000 |
— | ||
|
5
|
5
03541-05123-000
Screw
FRS; 2001-10-01~2002-08-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03541-0512B-000 SCREWFRS; 2001-10-01~2002-08-01 |
03541-0512B-000 |
from US $0.76 |
||
|
6
|
6
95642-64G20-000
SENSOR,SUN LIGHT
DENSO; FRS; 2001-10-01~2002-08-01 |
95642-64G20-000 |
— | ||
|
7
|
7
95643-65D00-000 SENSOR,OUTSIDE TEMPFRS; 2001-10-01~2002-08-01 |
95643-65D00-000 |
from US $19.20 |
||
|
8
|
8
95652-76G01-000 ACTUATOR,F/RFRS; 2001-10-01~2002-08-01 |
95652-76G01-000 |
US $88.32 |
||
|
9
|
9
95671-76G00-000 BRACKET,OUT DR TEMP SNSRBracket, out door temperature sensor FRS; 2001-10-01~2002-08-01 |
95671-76G00-000 |
US $3.02 |
||
|
10
|
10
03541-04123-000
Screw
FRS; 2001-10-01~2002-08-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
10
|
10
03541-0412B-000 SCREWScrew, plate FRS; 2001-10-01~2002-08-01 |
03541-0412B-000 |
from US $0.80 |
||
|
10
|
10
03541-0412A-000 SCREWScrew, speedometer FRS; 2001-10-01~2002-08-01 |
03541-0412A-000 |
from US $0.80 |
||
|
11
|
11
03541-05123-000
Screw
FRS; 2001-10-01~2002-08-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0512B-000 SCREWFRS; 2001-10-01~2002-08-01 |
03541-0512B-000 |
from US $0.76 |
||
