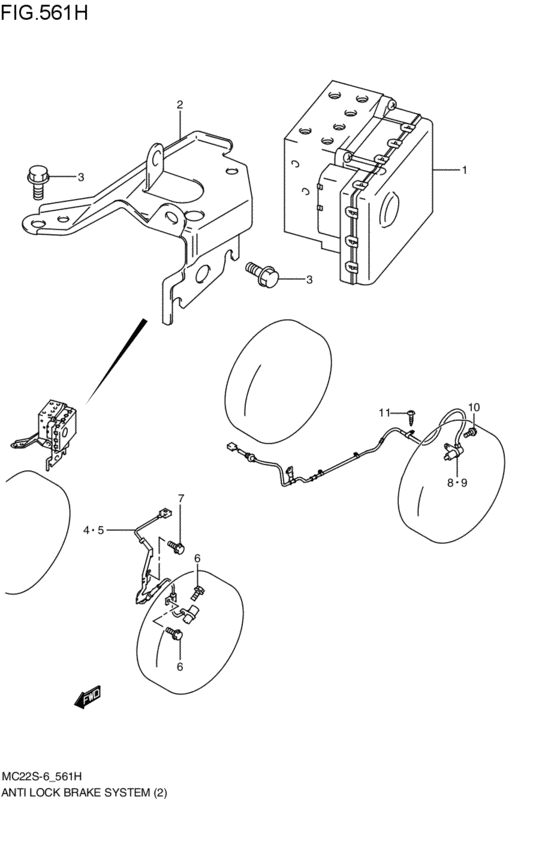

antilock brake system (4WD:ABS; 2003-04-01~2003-08-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- FT
- abs
- ABS
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-76F11-000
アクチュエータアッシ,ABS
4WD:ABS; 2003-04-01~2003-08-01 |
56100-76F11-000 |
— | ||
|
2
|
2
56161-76F00-000
BRACKET,ACTUATOR
4WD:ABS; 2003-04-01~2003-08-01 |
56161-76F00-000 |
— | ||
|
3
|
3
01550-08123-000
Bolt
4WD:ABS; 2003-04-01~2003-08-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0812B-000 BoltPlug, drain 4WD:ABS; 2003-04-01~2003-08-01 |
01550-0812B-000 |
from US $0.96 |
||
|
3
|
3
01550-0812A-000 BOLT4WD:ABS; 2003-04-01~2003-08-01 |
01550-0812A-000 |
from US $0.91 |
||
|
4
|
4
56210-76G00-000
SENSOR,FR WHEEL,R
4WD:ABS; 2003-04-01~2003-08-01 |
56210-76G00-000 |
— | ||
| replacement | |||||
|
4
|
4
56210-76G01-000 SENSOR,FR WHEEL,R4WD:ABS; 2003-04-01~2003-08-01 |
56210-76G01-000 |
US $154.19 |
||
|
5
|
5
56220-76G00-000
SENSOR,FR WHEEL,L
4WD:ABS; 2003-04-01~2003-08-01 |
56220-76G00-000 |
— | ||
| replacement | |||||
|
5
|
5
56220-76G01-000 SENSOR,FR WHEEL,L4WD:ABS; 2003-04-01~2003-08-01 |
56220-76G01-000 |
from US $106.45 |
||
|
6
|
6
02162-06163-000
Screw
4WD:ABS; 2003-04-01~2003-08-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0616B-000 SCREWBolt, adjust 4WD:ABS; 2003-04-01~2003-08-01 |
02162-0616B-000 |
from US $0.80 |
||
|
7
|
7
02162-06123-000
Bolt (6x12)
4WD:ABS; 2003-04-01~2003-08-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt 4WD:ABS; 2003-04-01~2003-08-01 |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket 4WD:ABS; 2003-04-01~2003-08-01 |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
56310-75H10-000
センサ,リヤホイール,ライト
4WD:ABS; 2003-04-01~2003-08-01 |
56310-75H10-000 |
— | ||
| replacement | |||||
|
8
|
8
56310-75H11-000
New Genuine Part
4WD:ABS; 2003-04-01~2003-08-01 |
56310-75H11-000 |
— | ||
|
9
|
9
56320-75H10-000
センサ,リヤホイール,レフト
4WD:ABS; 2003-04-01~2003-08-01 |
56320-75H10-000 |
— | ||
| replacement | |||||
|
9
|
9
56320-75H11-000
New Genuine Part
4WD:ABS; 2003-04-01~2003-08-01 |
56320-75H11-000 |
— | ||
|
10
|
10
01550-06123-000
Bolt
4WD:ABS; 2003-04-01~2003-08-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp 4WD:ABS; 2003-04-01~2003-08-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLT4WD:ABS; 2003-04-01~2003-08-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
09132-05028-000 SCREW(5X8)4WD:ABS; 2003-04-01~2003-08-01 |
09132-05028-000 |
US $12.90 |
||
