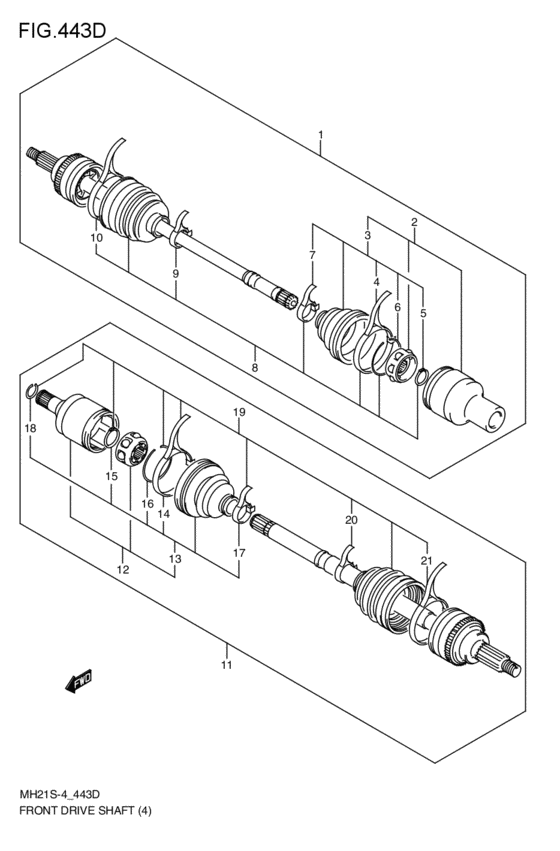

front-drive shaft (4WD:MT; 2005-08-01~2007-06-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2005 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- MT
- grade
- FA
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- NSAB
- ディスチャージ
- NDISCH
- star
- 3STAR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-58J52-000
シャフトアッシ,フロントドライブ,ライト
4WD:MT; 2005-08-01~2007-06-01 |
44101-58J52-000 |
— | ||
| replacements | |||||
|
1
|
1
44101-58J90-000
New Genuine Part
4WD:MT; 2005-08-01~2007-06-01 |
44101-58J90-000 |
— | ||
|
1
|
1
44101-58J91-000 F/DRIVE SHAFT RH4WD:MT; 2005-08-01~2007-06-01 |
44101-58J91-000 |
US $591.14 |
||
|
2
|
2
44114-58J50-000
ジョイントアッシ,ディファレンシャルサイド
4WD:MT; 2005-08-01~2007-01-01 |
44114-58J50-000 |
— | ||
| replacement | |||||
|
2
|
2
44114-58JR0-000
New Genuine Part
4WD:MT; 2005-08-01~2007-01-01 |
44114-58JR0-000 |
— | ||
|
2
|
2
44114-58J51-000
ジョイントアッシ,ディファレンシャルサイドライト
4WD:MT; 2007-02-01~2007-06-01 |
44114-58J51-000 |
— | ||
| replacements | |||||
|
2
|
2
44114-58J54-000
New Genuine Part
4WD:MT; 2007-02-01~2007-06-01 |
44114-58J54-000 |
— | ||
|
2
|
2
44114-58JF2-000
New Genuine Part
4WD:MT; 2007-02-01~2007-06-01 |
44114-58JF2-000 |
— | ||
|
3
|
3
44119-67H00-000
BOOT SET,DIFF SIDE
4WD:MT; 2005-08-01~2007-06-01 |
44119-67H00-000 |
— | ||
| replacement | |||||
|
3
|
3
44119-67HA0-000 BOOT SET,DIFF SIDE4WD:MT; 2005-08-01~2007-06-01 |
44119-67HA0-000 |
US $116.80 |
||
|
4
|
4
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD:MT; 2005-08-01~2007-06-01 |
44122-86010-000 |
from US $4.66 |
||
|
5
|
5
44111-78010-000 RING,SNAP4WD:MT; 2005-08-01~2007-06-01 |
44111-78010-000 |
from US $2.80 |
||
|
6
|
6
44112-78010-000 CIRCLIP4WD:MT; 2005-08-01~2007-06-01 |
44112-78010-000 |
from US $2.48 |
||
|
7
|
7
44124-86011-000 BAND,BOOT4WD:MT; 2005-08-01~2007-06-01 |
44124-86011-000 |
from US $3.20 |
||
|
8
|
8
44118-58J50-000
ブーツセット,ホイールサイド
4WD:MT; 2005-08-01~2006-12-01 |
44118-58J50-000 |
— | ||
| replacement | |||||
|
8
|
8
44118-58J80-000
New Genuine Part
4WD:MT; 2005-08-01~2006-12-01 |
44118-58J80-000 |
— | ||
|
8
|
8
44118-58J51-000
ブーツセット,ホイールサイド
4WD:MT; 2007-01-01~2007-06-01 |
44118-58J51-000 |
— | ||
| replacement | |||||
|
8
|
8
44118-58JS0-000
New Genuine Part
4WD:MT; 2007-01-01~2007-06-01 |
44118-58JS0-000 |
— | ||
|
9
|
9
44124-58J30-000 BAND,BOOT4WD:MT; 2005-08-01~2006-12-01 |
44124-58J30-000 |
US $6.81 |
||
|
9
|
9
44124-86011-000 BAND,BOOT4WD:MT; 2006-12-01~2007-06-01 |
44124-86011-000 |
from US $3.20 |
||
|
10
|
10
44121-58J30-000 BAND,BOOT4WD:MT; 2005-08-01~2006-12-01 |
44121-58J30-000 |
US $10.56 |
||
|
10
|
10
44222-51F00-000 BAND,BOOT4WD:MT; 2006-12-01~2007-06-01 |
44222-51F00-000 |
from US $4.88 |
||
|
11
|
11
44102-58J22-000
シャフトアッシ,フロントドライブレフト
4WD:MT; 2005-08-01~2007-06-01 |
44102-58J22-000 |
— | ||
| replacements | |||||
|
11
|
11
44102-58J80-000
New Genuine Part
4WD:MT; 2005-08-01~2007-06-01 |
44102-58J80-000 |
— | ||
|
11
|
11
44102-58J81-000
New Genuine Part
4WD:MT; 2005-08-01~2007-06-01 |
44102-58J81-000 |
— | ||
|
12
|
12
44114-58JC0-000
ジョイントアッシ,ディファレンシャルサイド
4WD:MT; 2005-08-01~2007-01-01 |
44114-58JC0-000 |
— | ||
| replacement | |||||
|
12
|
12
44114-58JL0-000
New Genuine Part
4WD:MT; 2005-08-01~2007-01-01 |
44114-58JL0-000 |
— | ||
|
12
|
12
44114-58JC1-000
ジョイントアッシ,ディファレンシャルサイドライト
4WD:MT; 2007-02-01~2007-06-01 |
44114-58JC1-000 |
— | ||
| replacements | |||||
|
12
|
12
44114-58JC4-000
New Genuine Part
4WD:MT; 2007-02-01~2007-06-01 |
44114-58JC4-000 |
— | ||
|
12
|
12
44114-58JC6-000
New Genuine Part
4WD:MT; 2007-02-01~2007-06-01 |
44114-58JC6-000 |
— | ||
|
13
|
13
44119-67H00-000
BOOT SET,DIFF SIDE
4WD:MT; 2005-08-01~2007-01-01 |
44119-67H00-000 |
— | ||
| replacement | |||||
|
13
|
13
44119-67HA0-000 BOOT SET,DIFF SIDE4WD:MT; 2005-08-01~2007-01-01 |
44119-67HA0-000 |
US $116.80 |
||
|
13
|
13
44119-67H01-000
Boot set,diff side
4WD:MT; 2007-02-01~2007-06-01 |
44119-67H01-000 |
— | ||
| replacement | |||||
|
13
|
13
44119-76GH0-000
BOOT SET,DIFF SIDE
4WD:MT; 2007-02-01~2007-06-01 |
44119-76GH0-000 |
— | ||
|
14
|
14
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD:MT; 2005-08-01~2007-06-01 |
44122-86010-000 |
from US $4.66 |
||
|
15
|
15
44111-78010-000 RING,SNAP4WD:MT; 2005-08-01~2007-06-01 |
44111-78010-000 |
from US $2.80 |
||
|
16
|
16
44112-78010-000 CIRCLIP4WD:MT; 2005-08-01~2007-06-01 |
44112-78010-000 |
from US $2.48 |
||
|
17
|
17
44124-86011-000 BAND,BOOT4WD:MT; 2005-08-01~2007-06-01 |
44124-86011-000 |
from US $3.20 |
||
|
18
|
18
44112-58JA0-000 CIRCLIP4WD:MT; 2007-02-01~2007-06-01 |
44112-58JA0-000 |
US $3.97 |
||
|
18
|
18
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 4WD:MT; 2005-08-01~2007-01-01 |
09381-24001-000 |
from US $1.60 |
||
|
19
|
19
44118-58J50-000
ブーツセット,ホイールサイド
4WD:MT; 2005-08-01~2006-12-01 |
44118-58J50-000 |
— | ||
| replacement | |||||
|
19
|
19
44118-58J80-000
New Genuine Part
4WD:MT; 2005-08-01~2006-12-01 |
44118-58J80-000 |
— | ||
|
19
|
19
44118-58J51-000
ブーツセット,ホイールサイド
4WD:MT; 2007-01-01~2007-01-01 |
44118-58J51-000 |
— | ||
| replacement | |||||
|
19
|
19
44118-58JS0-000
New Genuine Part
4WD:MT; 2007-01-01~2007-01-01 |
44118-58JS0-000 |
— | ||
|
19
|
19
44118-58J52-000
ブーツセット,ホイールサイド
4WD:MT; 2007-02-01~2007-06-01 |
44118-58J52-000 |
— | ||
| replacement | |||||
|
19
|
19
44118-58JS0-000
New Genuine Part
4WD:MT; 2007-02-01~2007-06-01 |
44118-58JS0-000 |
— | ||
|
20
|
20
44124-58J30-000 BAND,BOOT4WD:MT; 2005-08-01~2006-12-01 |
44124-58J30-000 |
US $6.81 |
||
|
20
|
20
44124-86011-000 BAND,BOOT4WD:MT; 2007-01-01~2007-06-01 |
44124-86011-000 |
from US $3.20 |
||
|
21
|
21
44121-58J30-000 BAND,BOOT4WD:MT; 2005-08-01~2006-12-01 |
44121-58J30-000 |
US $10.56 |
||
|
21
|
21
44222-51F00-000 BAND,BOOT4WD:MT; 2007-01-01~2007-06-01 |
44222-51F00-000 |
from US $4.88 |
||
