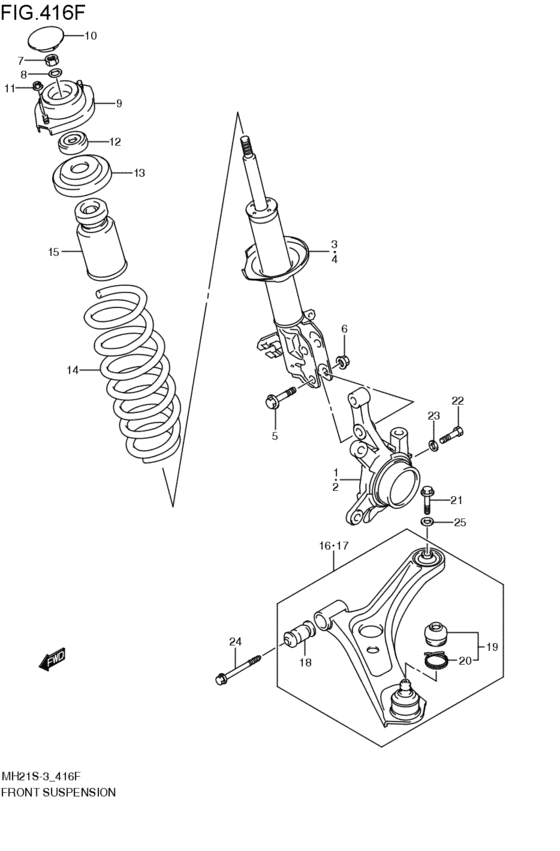

front suspension (2004-12-01~2005-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- FB
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45110-58810-000 KNUCKLE,STEERING,R2004-12-01~2005-09-01 |
45110-58810-000 |
US $184 |
||
|
2
|
2
45150-58810-000 KNUCKLE,STEERING,L2004-12-01~2005-09-01 |
45150-58810-000 |
US $176.27 |
||
|
3
|
3
41601-58J20-000
ストラットアッシ,フロントサスペンション,ライト
FA,FB,FBM; 2004-12-01~2005-09-01 |
41601-58J20-000 |
— | ||
|
4
|
4
41602-58J20-000
ストラットアッシ,フロントサスペンション,レフト
FA,FB,FBM; 2004-12-01~2005-09-01 |
41602-58J20-000 |
— | ||
|
5
|
5
09103-12051-000 BOLT(12X50)2004-12-01~2005-09-01 |
09103-12051-000 |
from US $2.56 |
||
|
6
|
6
08316-10123-000
Nut
2004-12-01~2005-09-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1012A-000 NUT2004-12-01~2005-09-01 |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
08310-00123-000
Nut
2004-12-01~2005-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0012A-000 NUT2004-12-01~2005-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
8
|
8
08321-01123-000
Washer
2004-12-01~2005-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCK2004-12-01~2005-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
41710-58J00-000 SUPPORT ASSY,FRONT STRUT2004-12-01~2005-09-01 |
41710-58J00-000 |
US $54.72 |
||
|
10
|
10
41724-83H00-000 CAP,STRUT SUPPORT2004-12-01~2005-09-01 |
41724-83H00-000 |
US $3.42 |
||
|
11
|
11
09159-08123-000 NUT2004-12-01~2005-09-01 |
09159-08123-000 |
US $14.40 |
||
|
12
|
12
41741-58J00-000 BEARING,FR STRUT2004-12-01~2005-09-01 |
41741-58J00-000 |
from US $26.17 |
||
|
13
|
13
41230-58J00-000
シート,コイルスプリング,アッパ
2004-12-01~2005-09-01 |
41230-58J00-000 |
— | ||
|
14
|
14
41111-58J20-000
スプリング,フロントコイル
2WD:(FA,FB,FBM); 2004-12-01~2005-09-01 |
41111-58J20-000 |
— | ||
|
15
|
15
42110-58J10-000
ストッパ,フロントバンプ
FA,FB,FBM; 2004-12-01~2005-09-01 |
42110-58J10-000 |
— | ||
| replacement | |||||
|
15
|
15
42110-66K00-000 STOPPER ASSY,FR BUMPFA,FB,FBM; 2004-12-01~2005-09-01 |
42110-66K00-000 |
US $47.20 |
||
|
16
|
16
45201-58J00-000
アームアッシ,フロントサスペンション,ライト
2004-12-01~2005-09-01 |
45201-58J00-000 |
— | ||
| replacement | |||||
|
16
|
16
45201-58J10-000 ARM ASSY,FR SPNSN,R2004-12-01~2005-09-01 |
45201-58J10-000 |
from US $152.37 |
||
|
17
|
17
45202-58J00-000
アームアッシ,フロントサスペンション,レフト
2004-12-01~2005-09-01 |
45202-58J00-000 |
— | ||
| replacement | |||||
|
17
|
17
45202-58J10-000 ARM ASSY,FR SPNSN,L2004-12-01~2005-09-01 |
45202-58J10-000 |
from US $279.45 |
||
|
18
|
18
45530-58J00-000 BUSHING,SPNSN ARM,FR2004-12-01~2005-09-01 |
45530-58J00-000 |
US $20.42 |
||
|
19
|
19
45723-70B00-000
SEAL SET,DUST
2004-12-01~2005-09-01 |
45723-70B00-000 |
— | ||
| replacements | |||||
|
19
|
19
45723-70B01-000
Seal Set,dust
2004-12-01~2005-09-01 |
45723-70B01-000 |
— | ||
|
19
|
19
45700-70810-000 Seal Set,dust2004-12-01~2005-09-01 |
45700-70810-000 |
from US $20.48 |
||
|
20
|
20
09401-27402-000 CLIP2004-12-01~2005-09-01 |
09401-27402-000 |
from US $1.04 |
||
|
21
|
21
45511-54G00-000 BOLT,SPNSN ARM RR2004-12-01~2005-09-01 |
45511-54G00-000 |
from US $2.40 |
||
|
22
|
22
09100-10169-000 BOLT(10X40)2004-12-01~2005-09-01 |
09100-10169-000 |
US $2.08 |
||
|
23
|
23
08321-01103-000
Washer
2004-12-01~2005-09-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0110B-000 WASHER,LOCKWasher, knuckle end 2004-12-01~2005-09-01 |
08321-0110B-000 |
from US $0.96 |
||
|
23
|
23
08321-0110A-000 WASHER,LOCK2004-12-01~2005-09-01 |
08321-0110A-000 |
from US $0.96 |
||
|
24
|
24
45215-72J10-000 BOLT,SPNSN ARM FR BUSHING2004-12-01~2005-09-01 |
45215-72J10-000 |
from US $4.43 |
||
|
25
|
25
09162-12005-000 WASHER,LOCKLock washer (12.2x21.5x3) 2004-12-01~2005-09-01 |
09162-12005-000 |
from US $1.51 |
||
