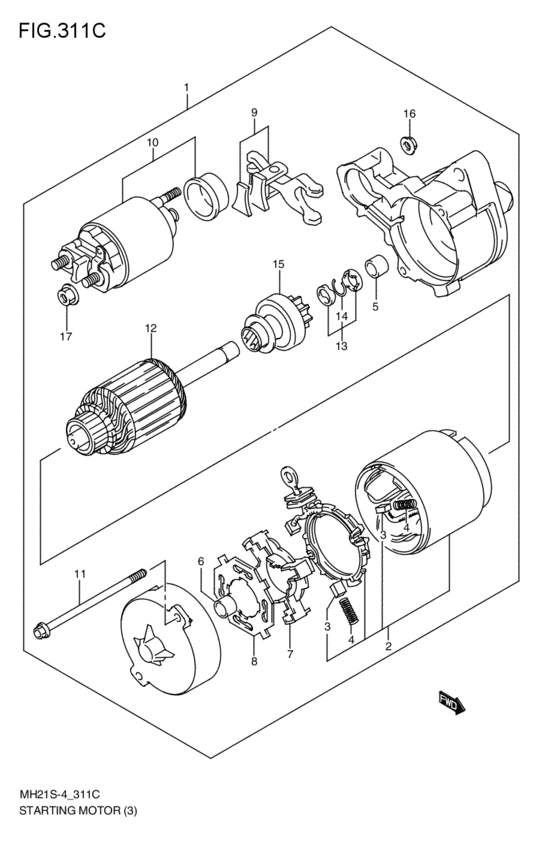

starting motor (CVT; 2006-08-01~2007-06-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2006 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- CVT
- grade
- FBS
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- NSAB
- ディスチャージ
- NDISCH
- star
- 4STAR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-58J00-000
モータアッシ,スターティング(DENSO)
CVT; 2006-08-01~2007-06-01 |
31100-58J00-000 |
— | ||
|
2
|
2
31110-77A00-000 YOKE ASSYCVT; 2006-08-01~2007-06-01 |
31110-77A00-000 |
from US $143.87 |
||
|
3
|
3
31131-51A10-000 BRUSHCVT; 2006-08-01~2007-06-01 |
31131-51A10-000 |
from US $5.36 |
||
|
4
|
4
31135-51A10-000 SPRING,BRUSHCVT; 2006-08-01~2007-06-01 |
31135-51A10-000 |
from US $1.58 |
||
|
5
|
5
31152-52A50-000 BEARINGCVT; 2006-08-01~2007-06-01 |
31152-52A50-000 |
from US $15.50 |
||
|
6
|
6
31172-51A10-000 BUSHCVT; 2006-08-01~2007-06-01 |
31172-51A10-000 |
from US $2.41 |
||
|
7
|
7
31173-51A10-000 HOLDER,BRUSHCVT; 2006-08-01~2007-06-01 |
31173-51A10-000 |
from US $21.89 |
||
|
8
|
8
31175-51A10-000 INSULATORCVT; 2006-08-01~2007-06-01 |
31175-51A10-000 |
from US $1.46 |
||
|
9
|
9
31191-85020-000 LEVER ASSYCVT; 2006-08-01~2007-06-01 |
31191-85020-000 |
from US $9.27 |
||
|
10
|
10
31220-52A20-000 SWITCH ASSY,MAGNETICCVT; 2006-08-01~2007-06-01 |
31220-52A20-000 |
US $119.23 |
||
| replacement | |||||
|
10
|
10
31220-51A10-000 SWITCH ASSYCVT; 2006-08-01~2007-06-01 |
31220-51A10-000 |
from US $99.16 |
||
|
11
|
11
31281-51A10-000 BoltCVT; 2006-08-01~2007-06-01 |
31281-51A10-000 |
from US $2.57 |
||
|
12
|
12
31311-80110-000 ARMATURECVT; 2006-08-01~2007-06-01 |
31311-80110-000 |
US $303.60 |
||
|
13
|
13
31310-51A10-000 NUT,PINION STOPCVT; 2006-08-01~2007-06-01 |
31310-51A10-000 |
from US $11.18 |
||
|
14
|
14
31312-51A10-000 RING,SNAPCVT; 2006-08-01~2007-06-01 |
31312-51A10-000 |
from US $1.71 |
||
|
15
|
15
31320-70B20-000 CLUTCH ASSYCVT; 2006-08-01~2007-06-01 |
31320-70B20-000 |
US $109.30 |
||
|
16
|
16
08316-1006A-000 NUTCVT; 2006-08-01~2007-06-01 |
08316-1006A-000 |
from US $0.80 |
||
|
17
|
17
08316-1008A-000 NUTNut, idle gear shaft CVT; 2006-08-01~2007-06-01 |
08316-1008A-000 |
from US $0.76 |
||
