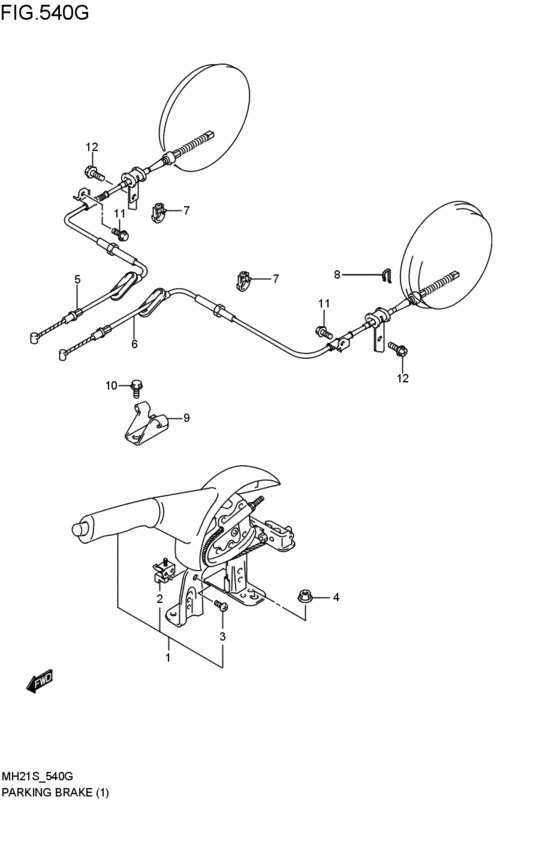

parking brakes (MT; 2003-09-01~2004-03-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 2WD
- transmission
- MT
- grade
- FB
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-76F10-5PK
LEVER ASSY,PARKING BK
MT; 2003-09-01~2004-03-01 |
54100-76F10-5PK |
— | ||
| replacement | |||||
|
1
|
1
54100-76F11-5PK LEVER ASSY,PARK BK(BLACK)MT; 2003-09-01~2004-03-01 |
54100-76F11-5PK |
US $144.99 |
||
|
2
|
2
37940-76G00-000 SWITCH ASSY,PARKING BRAKEMT; 2003-09-01~2004-03-01 |
37940-76G00-000 |
from US $4.82 |
||
|
3
|
3
54115-76G00-000 SCREWMT; 2003-09-01~2004-03-01 |
54115-76G00-000 |
from US $1.37 |
||
|
4
|
4
08316-10083-000
Nut
MT; 2003-09-01~2004-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUTMT; 2003-09-01~2004-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
54401-58J00-000
ケーブル,パーキングブレーキ,ライト
MT; 2003-09-01~2004-03-01 |
54401-58J00-000 |
— | ||
| replacement | |||||
|
5
|
5
54401-58J01-000 CABLE,PARKING BRAKE,RMT; 2003-09-01~2004-03-01 |
54401-58J01-000 |
US $75.07 |
||
|
6
|
6
54402-58J00-000
ケーブル,パーキングブレーキ,レフト
MT; 2003-09-01~2004-03-01 |
54402-58J00-000 |
— | ||
| replacement | |||||
|
6
|
6
54402-58J01-000 CABLE,PARKING BRAKE,LMT; 2003-09-01~2004-03-01 |
54402-58J01-000 |
US $75.07 |
||
|
7
|
7
54415-77A00-000 CLAMP,PARKING CABLEMT; 2003-09-01~2004-03-01 |
54415-77A00-000 |
from US $1.60 |
||
|
8
|
8
53771-82040-000 CLIP,PARKING CABLEMT; 2003-09-01~2004-03-01 |
53771-82040-000 |
US $1.60 |
||
|
9
|
9
54495-76F00-000 BRACKET,PARKING CABLEMT; 2003-09-01~2004-03-01 |
54495-76F00-000 |
US $6.48 |
||
|
10
|
10
01551-08163-000
Bolt
MT; 2003-09-01~2004-03-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01551-0816C-000 BoltMT; 2003-09-01~2004-03-01 |
01551-0816C-000 |
from US $0.96 |
||
|
10
|
10
01551-0816A-000
ボルト
MT; 2003-09-01~2004-03-01 |
01551-0816A-000 |
— | ||
|
11
|
11
01551-08163-000
Bolt
MT; 2003-09-01~2004-03-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01551-0816C-000 BoltMT; 2003-09-01~2004-03-01 |
01551-0816C-000 |
from US $0.96 |
||
|
11
|
11
01551-0816A-000
ボルト
MT; 2003-09-01~2004-03-01 |
01551-0816A-000 |
— | ||
|
12
|
12
02162-06253-000
Bolt
MT; 2003-09-01~2004-03-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
12
|
12
02162-0625A-000 SCREWMT; 2003-09-01~2004-03-01 |
02162-0625A-000 |
from US $0.76 |
||
