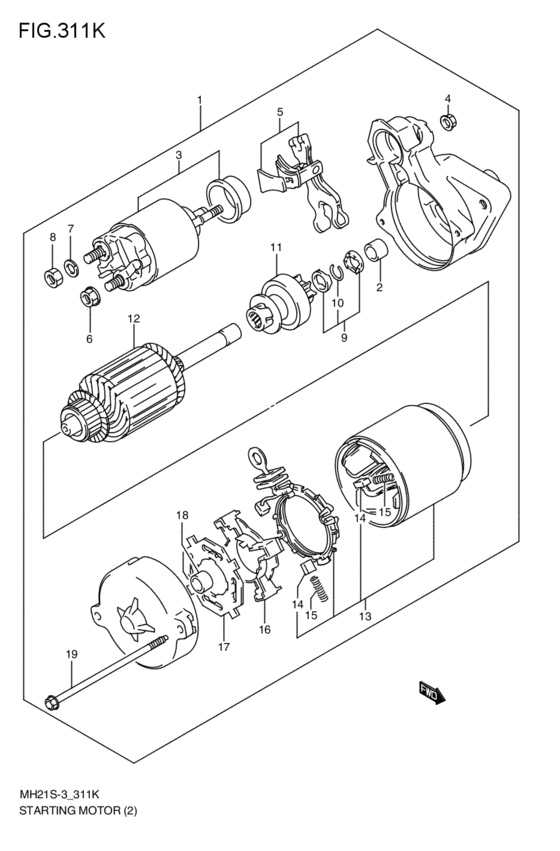

starting motor (DENSO; MT; 2004-12-01~2005-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 2WD
- transmission
- MT
- grade
- FB
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-70B22-000
Motor assy, starting
DENSO; MT; 2004-12-01~2005-07-01 |
31100-70B22-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-76G10-000 MOTOR ASSY,STARTINGDENSO; MT; 2004-12-01~2005-07-01 |
31100-76G10-000 |
US $668.80 |
||
|
1
|
1
31100-76G10-000 MOTOR ASSY,STARTINGDENSO; MT; 2005-07-01~2005-09-01 |
31100-76G10-000 |
US $668.80 |
||
|
2
|
2
31152-51A10-000 BUSHDENSO; MT; 2004-12-01~2005-07-01 |
31152-51A10-000 |
from US $2.77 |
||
|
2
|
2
31152-52A50-000 BEARINGDENSO; MT; 2005-07-01~2005-09-01 |
31152-52A50-000 |
from US $15.50 |
||
|
3
|
3
31220-51A10-000 SWITCH ASSYDENSO; MT; 2004-12-01~2005-09-01 |
31220-51A10-000 |
from US $99.16 |
||
|
4
|
4
08316-10063-000
Nut
DENSO; MT; 2004-12-01~2005-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUTDENSO; MT; 2004-12-01~2005-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
31191-85020-000 LEVER ASSYDENSO; MT; 2004-12-01~2005-09-01 |
31191-85020-000 |
from US $9.27 |
||
|
6
|
6
08316-10083-000
Nut
DENSO; MT; 2004-12-01~2005-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUTDENSO; MT; 2004-12-01~2005-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
08321-01083-000
Lock washer
DENSO; MT; 2004-12-01~2005-09-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0108B-000 WASHER,LOCKDENSO; MT; 2004-12-01~2005-09-01 |
08321-0108B-000 |
from US $0.76 |
||
|
7
|
7
08321-0108A-000 WASHER,LOCKDENSO; MT; 2004-12-01~2005-09-01 |
08321-0108A-000 |
from US $0.88 |
||
|
8
|
8
08310-00083-000
Nut
DENSO; MT; 2004-12-01~2005-09-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0008B-000 NUTDENSO; MT; 2004-12-01~2005-09-01 |
08310-0008B-000 |
from US $0.96 |
||
|
8
|
8
08310-0008A-000 NUTNut, bead stopper DENSO; MT; 2004-12-01~2005-09-01 |
08310-0008A-000 |
from US $0.76 |
||
|
9
|
9
31310-51A10-000 NUT,PINION STOPDENSO; MT; 2004-12-01~2005-09-01 |
31310-51A10-000 |
from US $11.18 |
||
|
10
|
10
31312-51A10-000 RING,SNAPDENSO; MT; 2004-12-01~2005-09-01 |
31312-51A10-000 |
from US $1.71 |
||
|
11
|
11
31320-70B20-000 CLUTCH ASSYDENSO; MT; 2004-12-01~2005-09-01 |
31320-70B20-000 |
US $109.30 |
||
|
12
|
12
31311-80110-000 ARMATUREDENSO; MT; 2004-12-01~2005-09-01 |
31311-80110-000 |
US $303.60 |
||
|
13
|
13
31110-52A50-000 YOKE ASSYDENSO; MT; 2004-12-01~2005-07-01 |
31110-52A50-000 |
US $206.08 |
||
|
13
|
13
31110-77A00-000 YOKE ASSYDENSO; MT; 2005-07-01~2005-09-01 |
31110-77A00-000 |
from US $143.87 |
||
|
14
|
14
31131-51A10-000 BRUSHDENSO; MT; 2004-12-01~2005-09-01 |
31131-51A10-000 |
from US $5.36 |
||
|
15
|
15
31135-51A10-000 SPRING,BRUSHDENSO; MT; 2004-12-01~2005-09-01 |
31135-51A10-000 |
from US $1.58 |
||
|
16
|
16
31173-51A10-000 HOLDER,BRUSHDENSO; MT; 2004-12-01~2005-09-01 |
31173-51A10-000 |
from US $21.89 |
||
|
17
|
17
31175-51A10-000 INSULATORDENSO; MT; 2004-12-01~2005-09-01 |
31175-51A10-000 |
from US $1.46 |
||
|
18
|
18
31172-51A10-000 BUSHDENSO; MT; 2004-12-01~2005-09-01 |
31172-51A10-000 |
from US $2.41 |
||
|
19
|
19
31281-51A10-000 BoltDENSO; MT; 2004-12-01~2005-09-01 |
31281-51A10-000 |
from US $2.57 |
||
