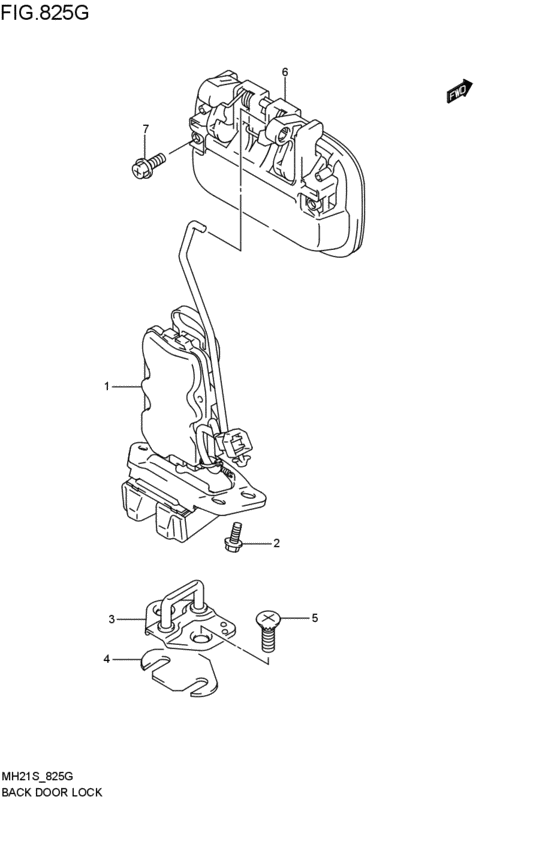

back door lock (2003-09-01~2004-03-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- FB
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82510-58J00-000
ラッチアッシ,バックドア
2003-09-01~2004-03-01 |
82510-58J00-000 |
— | ||
| replacement | |||||
|
1
|
1
82510-58J01-000 ラッチアッシ,バックドア2003-09-01~2004-03-01 |
82510-58J01-000 |
US $112.24 |
||
|
2
|
2
02162-06163-000
Screw
2003-09-01~2004-03-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
2
|
2
02162-0616B-000 SCREWBolt, adjust 2003-09-01~2004-03-01 |
02162-0616B-000 |
from US $0.96 |
||
|
3
|
3
82610-60D00-000 STRIKER,DOOR LATCH2003-09-01~2004-03-01 |
82610-60D00-000 |
from US $9.68 |
||
|
4
|
4
78199-78000-000 SPACER,DOOR LOCK STRIKER2003-09-01~2004-03-01 |
78199-78000-000 |
from US $0.68 |
||
|
5
|
5
09137-08006-000
Screw
2003-09-01~2004-03-01 |
09137-08006-000 |
— | ||
| replacements | |||||
|
5
|
5
09137-08011-000 SCREW(8X18)2003-09-01~2004-03-01 |
09137-08011-000 |
from US $1.40 |
||
|
5
|
5
09137-08004-000 SCREW(8X18)2003-09-01~2004-03-01 |
09137-08004-000 |
from US $0.99 |
||
|
6
|
6
82850-58J00-ZA4
ハンドル,バックドア(ベージュ)
ベ-ジユ; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J00-ZA4 |
— | ||
| replacements | |||||
|
6
|
6
82850-58J01-ZA4
New Genuine Part
ベ-ジユ; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J01-ZA4 |
— | ||
|
6
|
6
82850-58J02-ZA4
New Genuine Part
ベ-ジユ; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J02-ZA4 |
— | ||
|
6
|
6
82850-58J00-ZE9
ハンドル,バックドア(ブルー)
レイクブル-; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J00-ZE9 |
— | ||
| replacements | |||||
|
6
|
6
82850-58J01-ZE9
New Genuine Part
レイクブル-; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J01-ZE9 |
— | ||
|
6
|
6
82850-58J02-ZE9
New Genuine Part
レイクブル-; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J02-ZE9 |
— | ||
|
6
|
6
82850-58J00-ZJ3
ハンドル,バックドア(ブラック)
ブラック; FA,FB,FBS,FBM,FC,FD,FR,FRS; 2003-09-01~2004-03-01 |
82850-58J00-ZJ3 |
— | ||
| replacement | |||||
|
6
|
6
82850-58J02-ZJ3
New Genuine Part
ブラック; FA,FB,FBS,FBM,FC,FD,FR,FRS; 2003-09-01~2004-03-01 |
82850-58J02-ZJ3 |
— | ||
|
6
|
6
82850-58J00-ZK1
ハンドル,バックドア(ラベンダー)
ラベンダ-; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J00-ZK1 |
— | ||
| replacements | |||||
|
6
|
6
82850-58J01-ZK1
New Genuine Part
ラベンダ-; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J01-ZK1 |
— | ||
|
6
|
6
82850-58J02-ZK1
New Genuine Part
ラベンダ-; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J02-ZK1 |
— | ||
|
6
|
6
82850-58J00-ZY1
ハンドル,バックドア(グリーン)
グリ-ン; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J00-ZY1 |
— | ||
| replacements | |||||
|
6
|
6
82850-58J01-ZY1
New Genuine Part
グリ-ン; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J01-ZY1 |
— | ||
|
6
|
6
82850-58J02-ZY1
New Genuine Part
グリ-ン; FB,FBM,FC,FD; 2003-09-01~2004-03-01 |
82850-58J02-ZY1 |
— | ||
|
6
|
6
82850-58J00-Z2J
ハンドル,バックドア(ブルー)
ブル-; FB,FBM,FC,FD,FR,FRS; 2003-09-01~2004-03-01 |
82850-58J00-Z2J |
— | ||
| replacement | |||||
|
6
|
6
82850-58J02-Z2J
New Genuine Part
ブル-; FB,FBM,FC,FD,FR,FRS; 2003-09-01~2004-03-01 |
82850-58J02-Z2J |
— | ||
|
6
|
6
82850-58J00-Z2S
ハンドル,バックドア(シルバー)
シルバ-; FA,FB,FBM,FBS,FC,FD,FR,FRS; 2003-09-01~2004-03-01 |
82850-58J00-Z2S |
— | ||
| replacement | |||||
|
6
|
6
82850-58J02-Z2S
New Genuine Part
シルバ-; FA,FB,FBM,FBS,FC,FD,FR,FRS; 2003-09-01~2004-03-01 |
82850-58J02-Z2S |
— | ||
|
6
|
6
82850-58J00-Z7T
ハンドル,バックドア(ホワイト)
パールホワイト; FB,FBM,FBS,FC,FD,FR,FRS; 2003-09-01~2004-03-01 |
82850-58J00-Z7T |
— | ||
| replacement | |||||
|
6
|
6
82850-58J02-Z7T
New Genuine Part
パールホワイト; FB,FBM,FBS,FC,FD,FR,FRS; 2003-09-01~2004-03-01 |
82850-58J02-Z7T |
— | ||
|
6
|
6
82850-58J00-26U
ハンドル,バックドア(ホワイト)
ホワイト; FA,FB,FBM; 2003-09-01~2004-03-01 |
82850-58J00-26U |
— | ||
| replacement | |||||
|
6
|
6
82850-58J02-26U
New Genuine Part
ホワイト; FA,FB,FBM; 2003-09-01~2004-03-01 |
82850-58J02-26U |
— | ||
|
7
|
7
02162-06163-000
Screw
2003-09-01~2004-03-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2003-09-01~2004-03-01 |
02162-0616B-000 |
from US $0.96 |
||
